Intermediate Shaft — Disassembly (cont'd) / Index/Inspection

10-7parts diagram

4

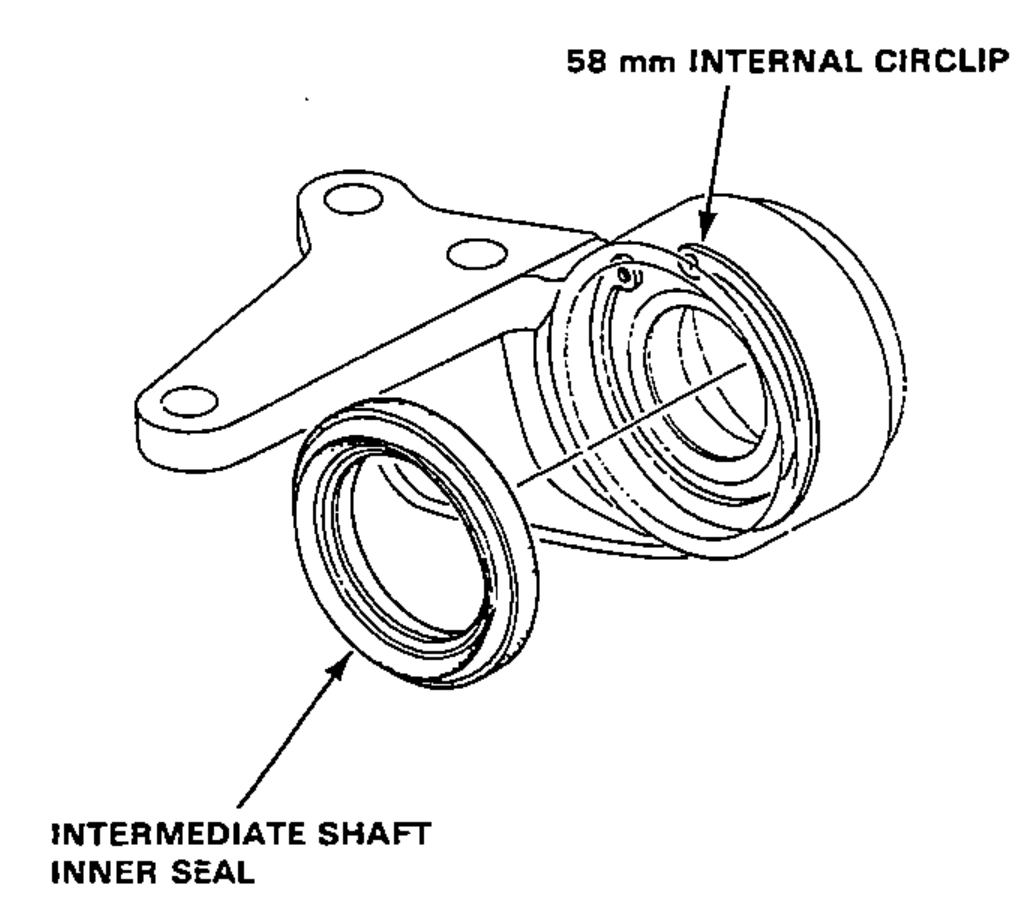

Remove the intermediate shaft inner seal.
5
Remove the 58 mm internal circlip.
6

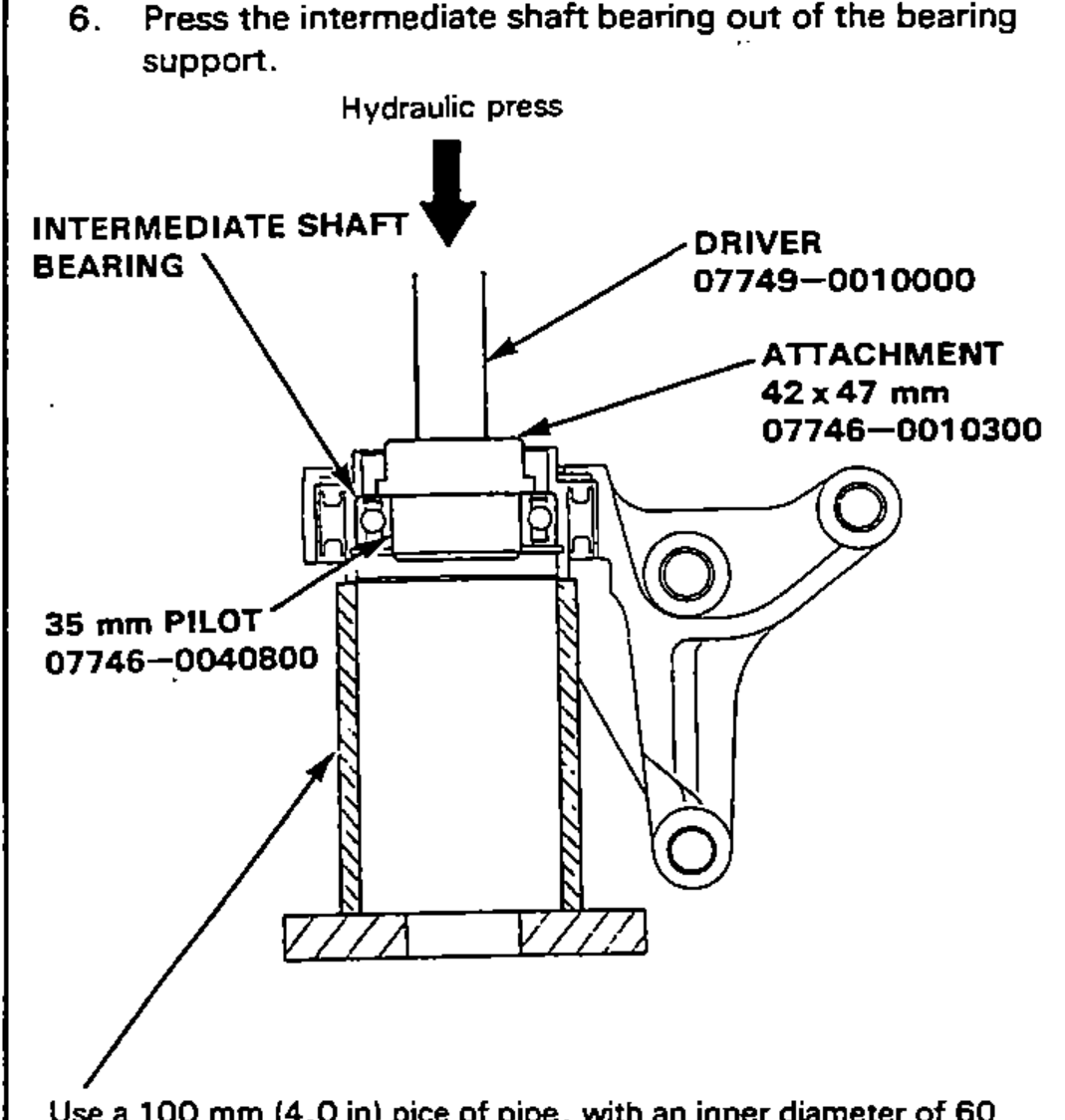

Press the intermediate shaft bearing out of the bearing support.
Use a 100 mm (4.0 in) piece of pipe, with an inner diameter of 60 mm (2.4 in) and an outer diameter of 65~88 mm (2.6~3.4 in).

Index/Inspection

Component Location

1INTERMEDIATE SHAFT RING()

2INTERMEDIATE SHAFT()

358 mm INTERNAL CIRCLIP()

438 mm EXTERNAL CIRCLIP()

5INNER SEAL()

6BEARING SUPPORT RING()

7INTERMEDIATE SHAFT BEARING()

8OUTER SEAL()

9BEARING SUPPORT()

10Grease splines()
