Intermediate Shaft — Reassembly
10-8prose procedureReassembly

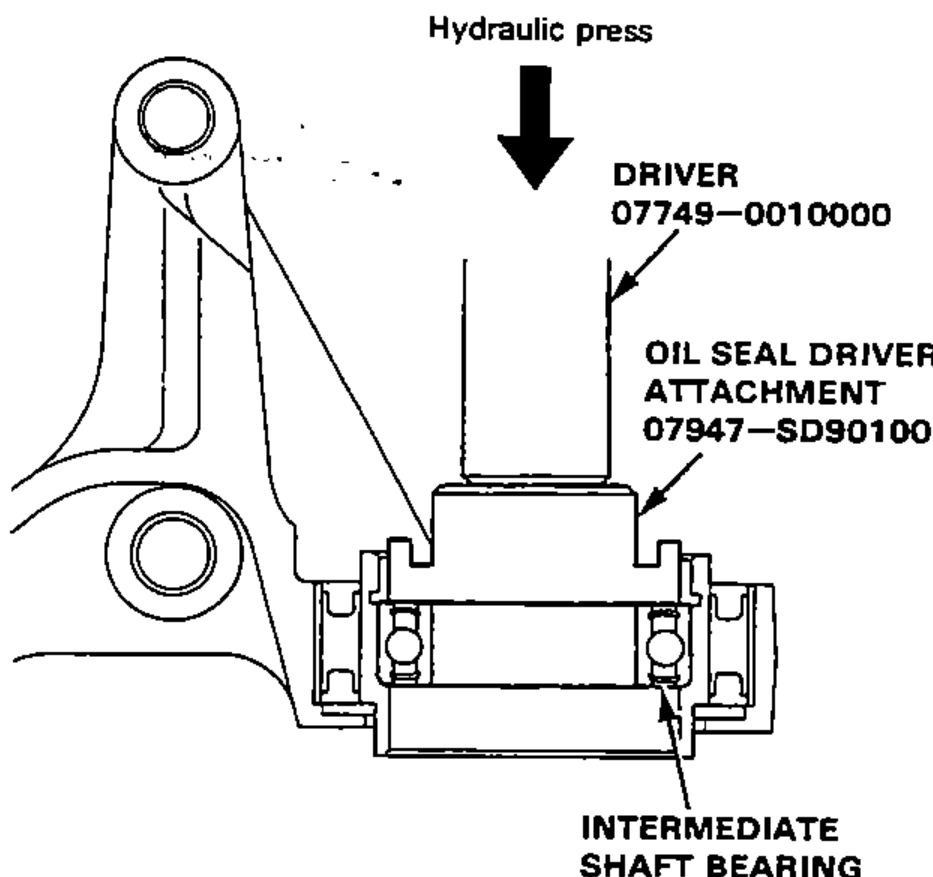

- 1Press the intermediate shaft bearing into the bearing support.
- 2Seat the 58 mm internal circlip in the groove of the bearing support.CAUTION: Install the circlip with the tapered end facing out.

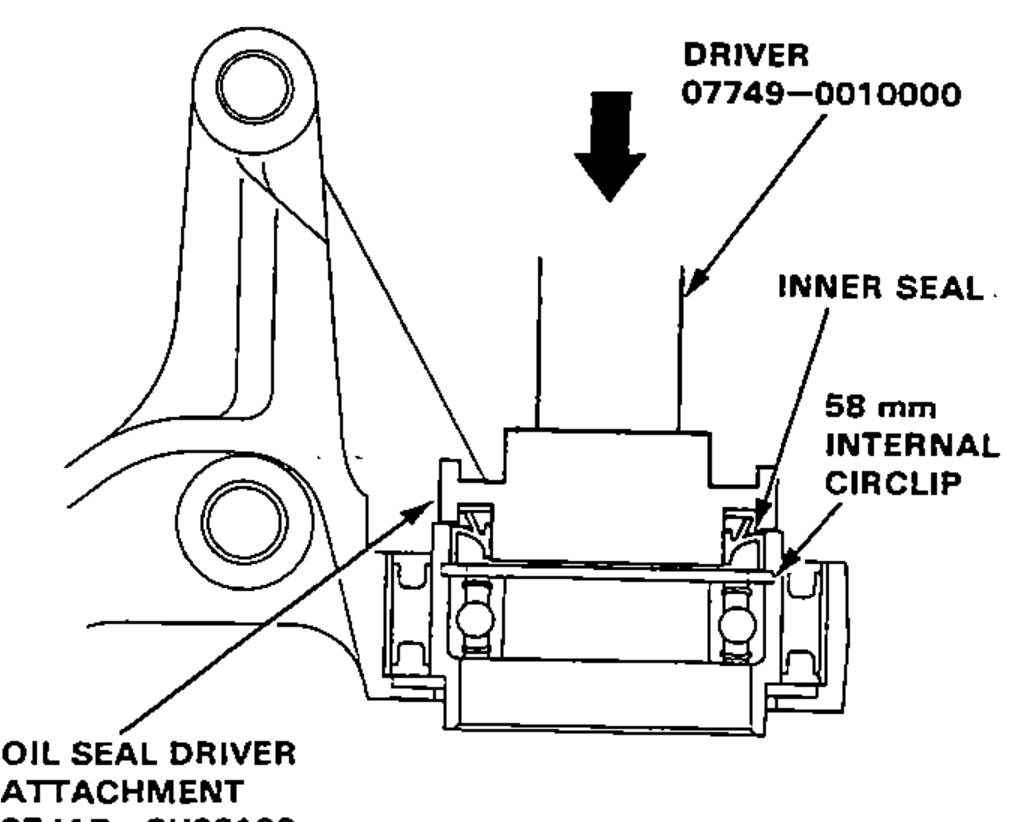

- 3Press the intermediate shaft inner seal into the bearing support.

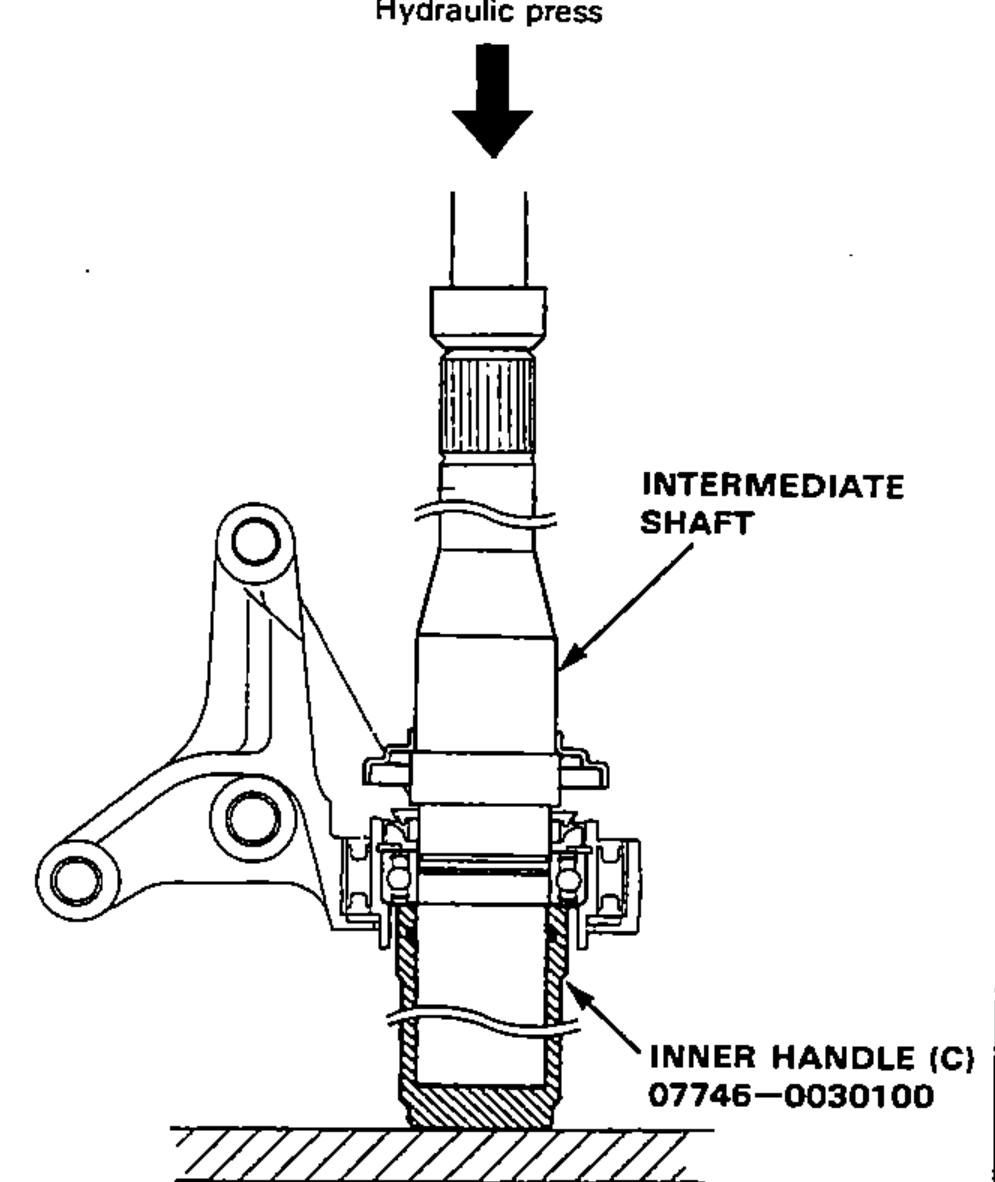

- 4Press the intermediate shaft into the shaft bearing.
- 5Seat the 38 mm external circlip in the groove of the intermediate shaft.CAUTION: Install the circlip with the tapered end facing out.

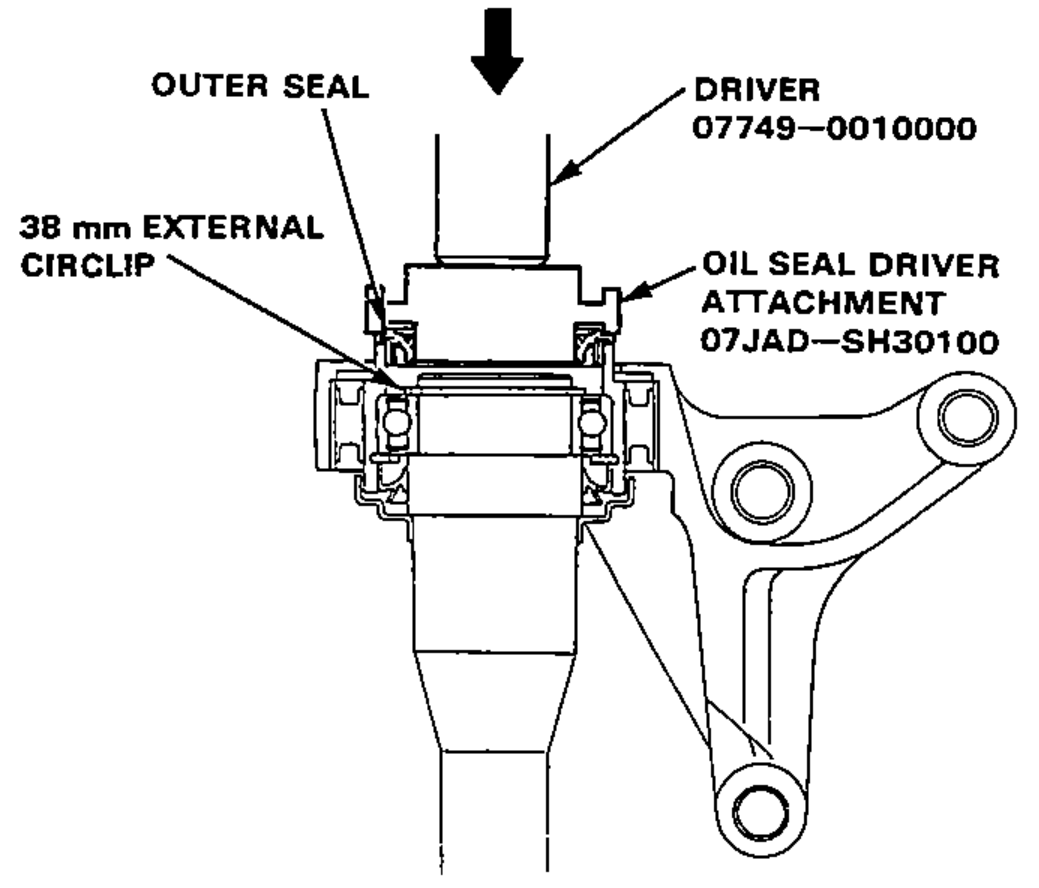

- 6Press the outer seal into the bearing support.
