Release Bearing - Installation
7-5prose procedureInstallation

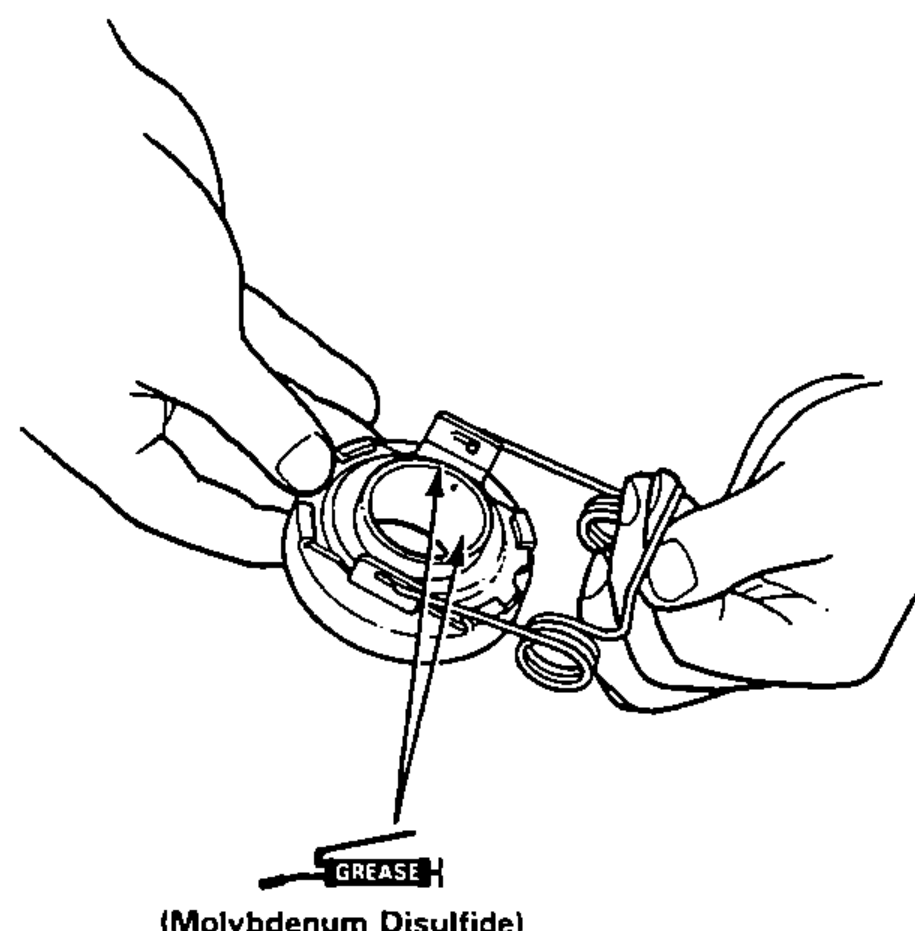

- 1Align the release arm with the locating holes of the release bearing.Grease (Molybdenum Disulfide).

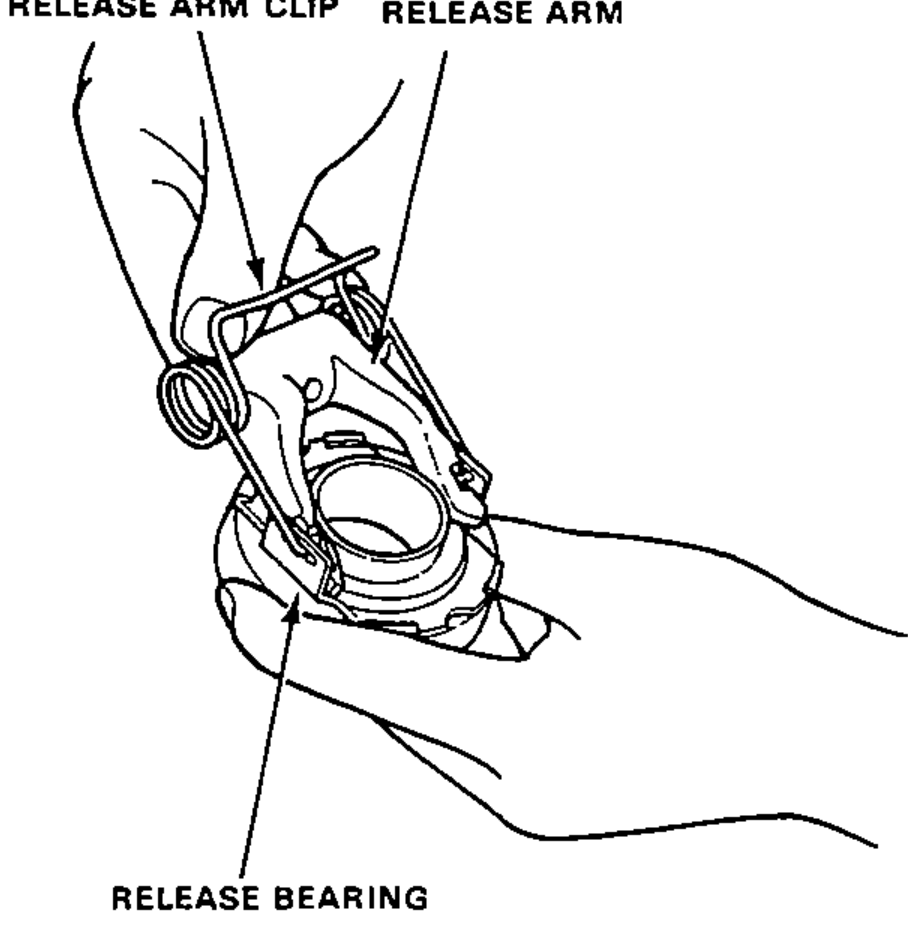

- 2Install the release arm clip in the locating holes as shown.

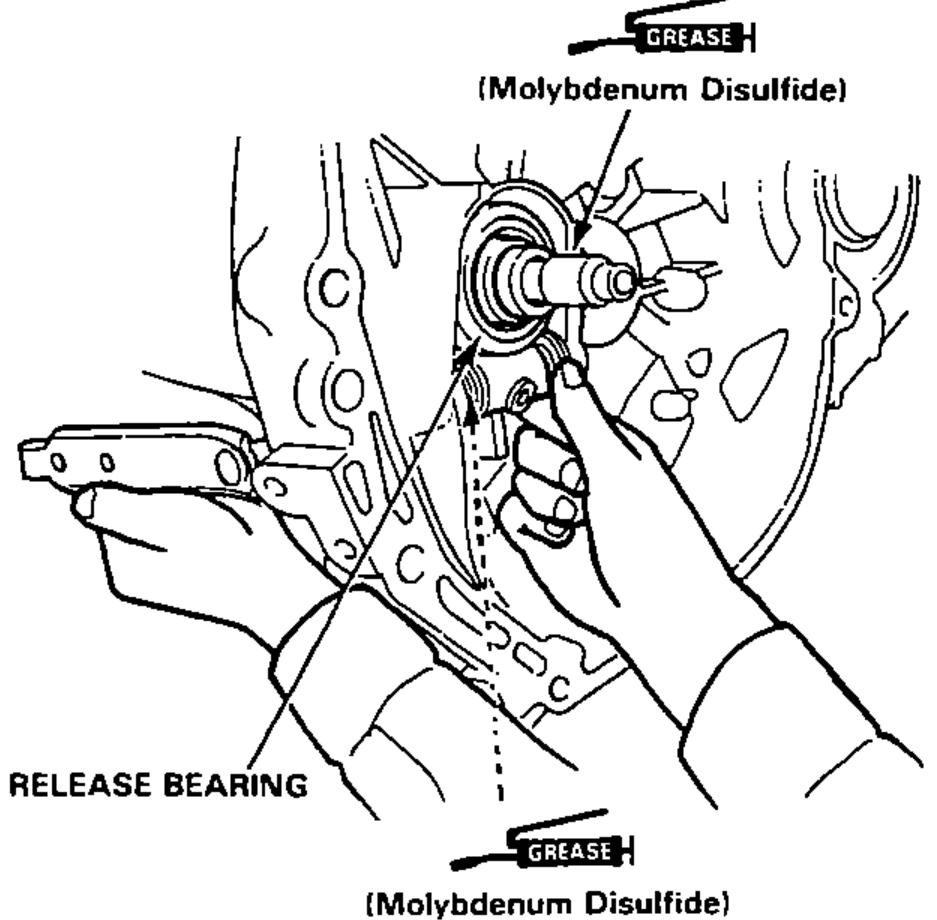

- 3Install the release shaft and the release bearing.NOTE: Grease the release shaft with molybdenum disulfide also.

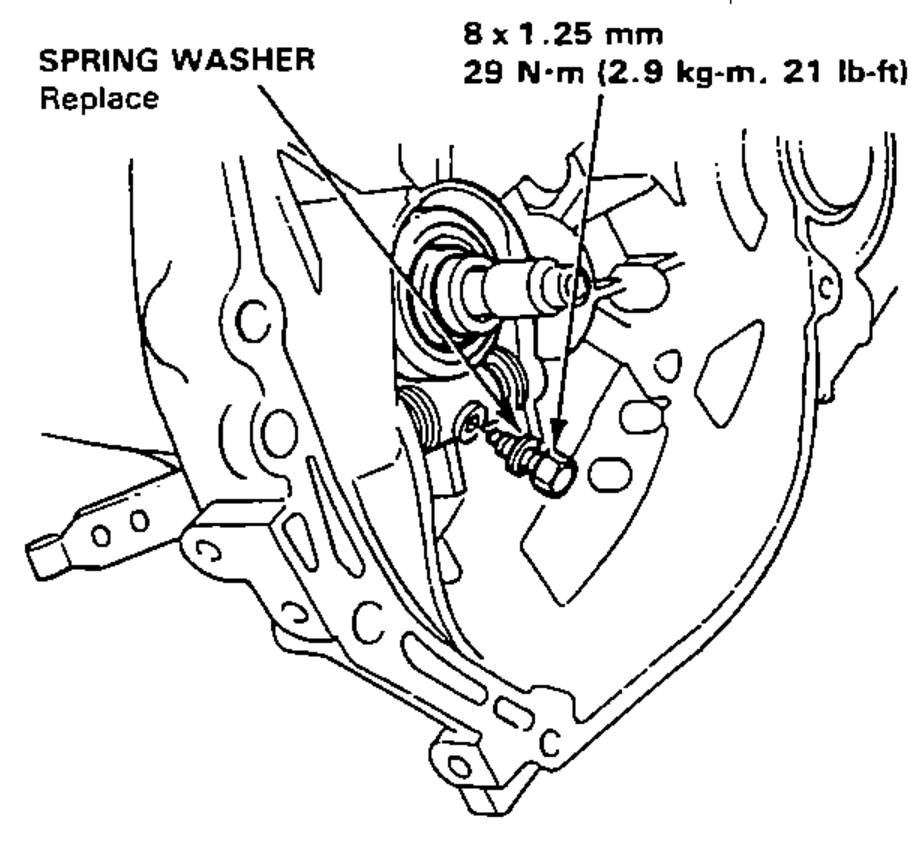

- 4Align the release shaft and release arm, then install a new spring washer and bolt.
- 5Move the release arm up and down to make sure the fork fits properly against the bearing, and that the bearing slides freely.
| Specification | Value |
|---|---|
| Release shaft bolt (8 x 1.25 mm), spring washer - replace | 29N·m |
Release shaft bolt (8 x 1.25 mm), spring washer - replace
29N·m
