Clutch Disc - Inspection
7-7prose procedureInspection

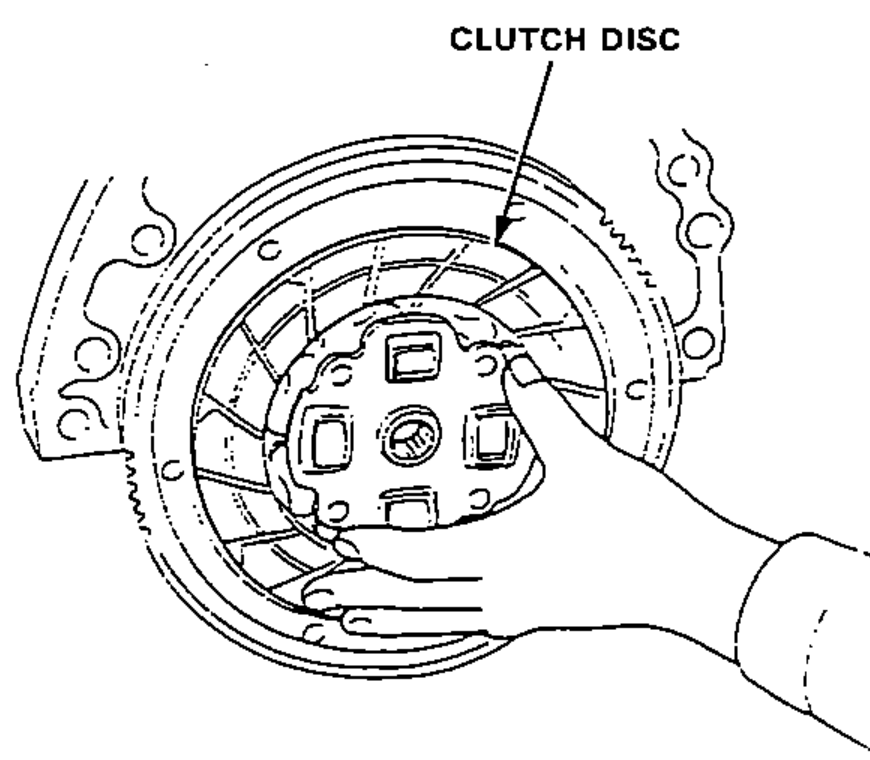

- 1Inspect lining of the clutch disc for signs of slipping or oil. Replace it if it is burned black or oil soaked.

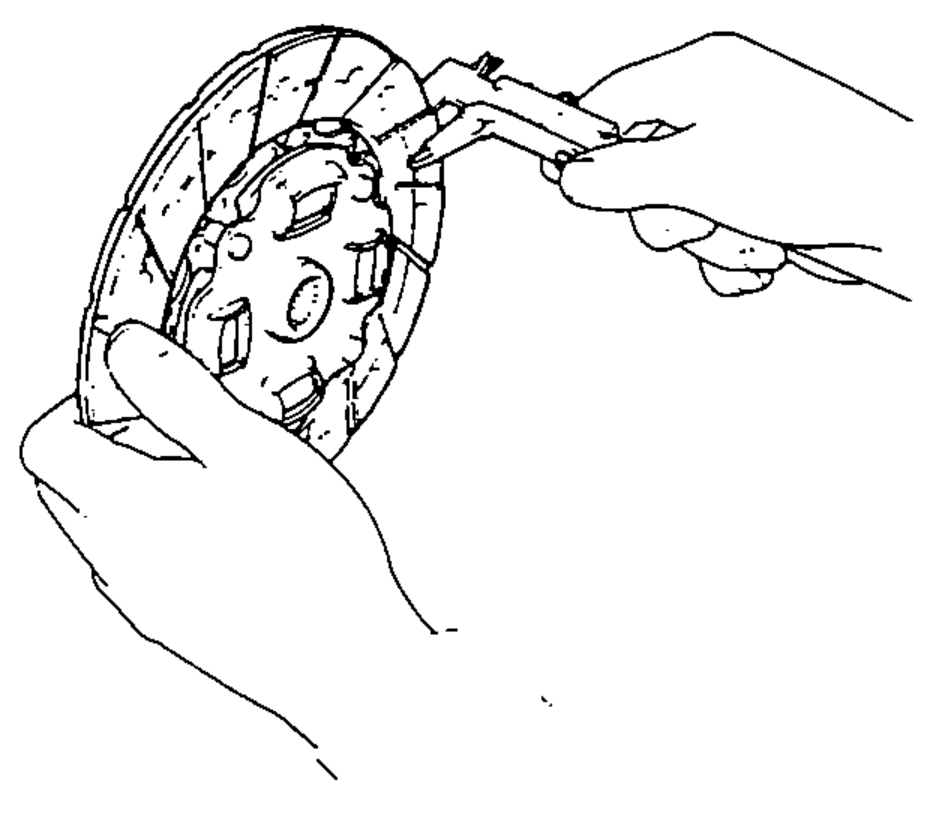

- 2Measure the clutch disc thickness.
- 3Check for loose rubber torsion dampers. Replace the clutch disc if any are loose.

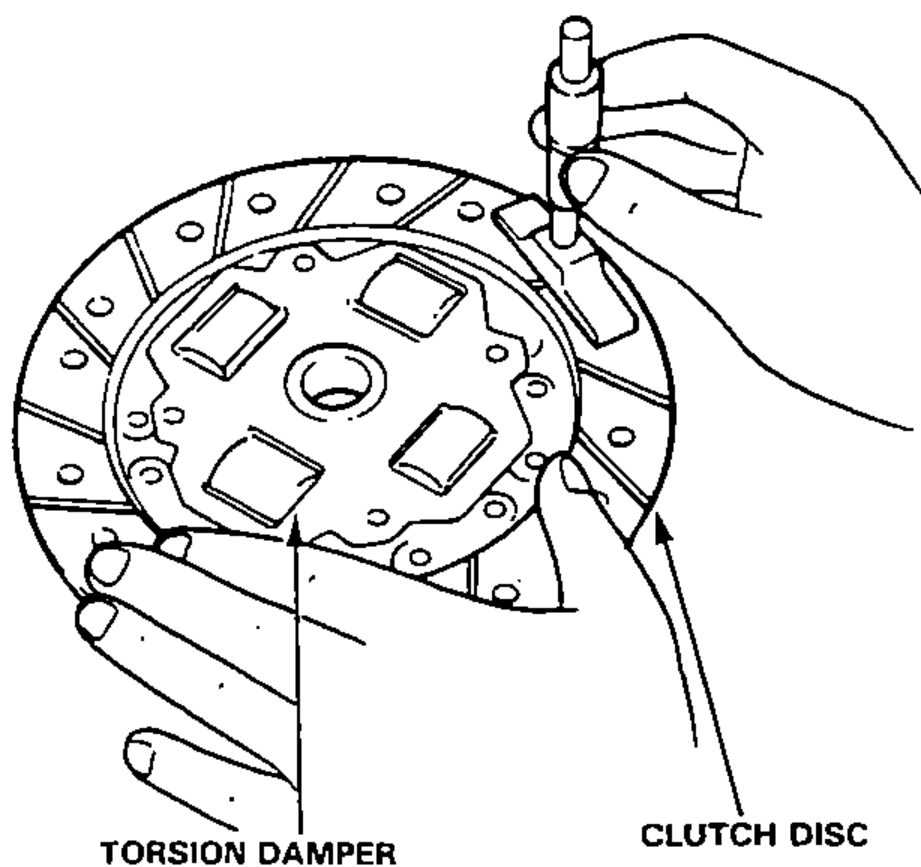

- 4Measure the depth from the lining surface to the rivets, on both sides.

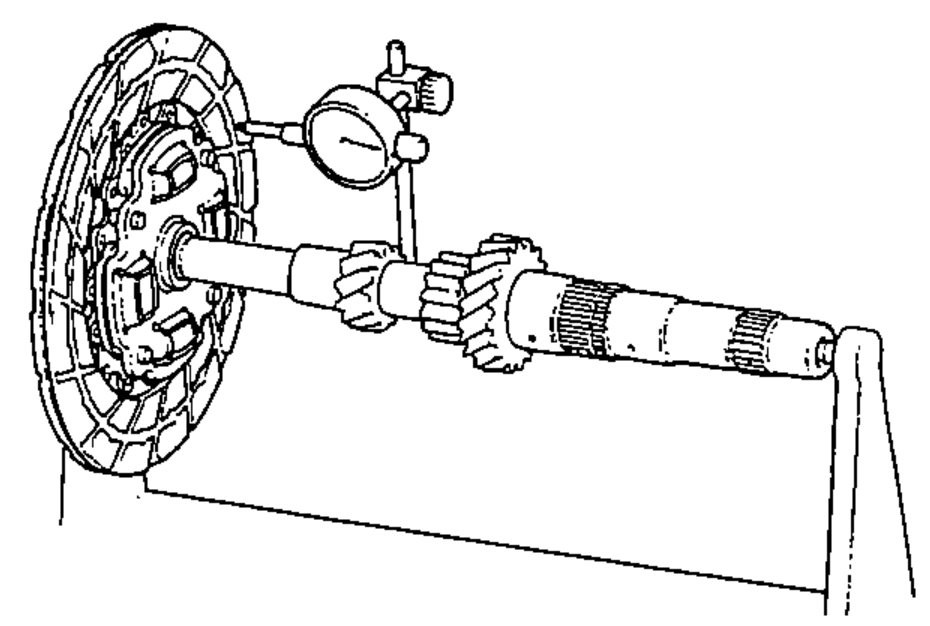

- 5Measure the clutch plate runout with the mainshaft and a dial indicator.
| Specification | Value |
|---|---|
| Clutch disc thickness, Standard (New) | 8.1-8.8 mm (0.319-0.346 in.) |
| Clutch disc thickness, Service Limit | 5.7 mm (0.224 in.) |
| Rivet depth, Standard (New) | 1.3 mm (0.051 in.) min. |
| Rivet depth, Service Limit | 0.2 mm (0.008 in.) |
| Clutch plate runout, Standard | 0.8 mm (0.031 in.) max. |
| Clutch plate runout, Service Limit | 1.0 mm (0.039 in.) |
Clutch disc thickness, Standard (New)
8.1-8.8 mm (0.319-0.346 in.)
Clutch disc thickness, Service Limit
5.7 mm (0.224 in.)
Rivet depth, Standard (New)
1.3 mm (0.051 in.) min.
Rivet depth, Service Limit
0.2 mm (0.008 in.)
Clutch plate runout, Standard
0.8 mm (0.031 in.) max.
Clutch plate runout, Service Limit
1.0 mm (0.039 in.)
