Honda CRX silhouetteCRX

Knuckle/Hub - Bearing Replacement (cont'd)

12-13prose procedure
  1. 18
    Remove the 76 mm snap ring and knuckle ring from the knuckle.
  2. 19

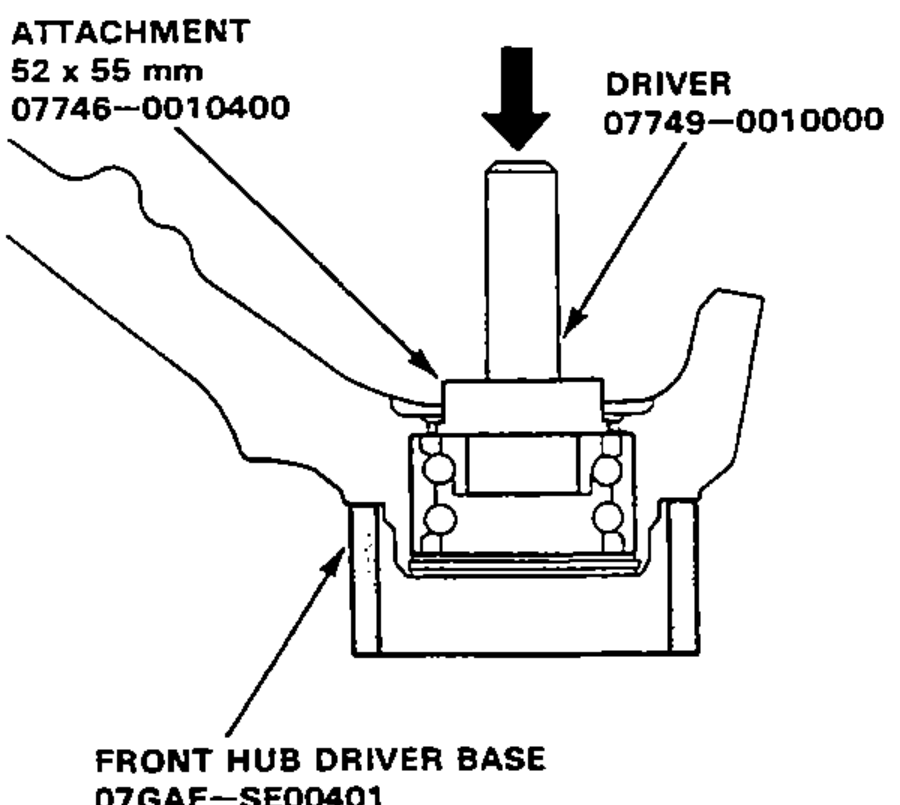

    Press the wheel bearing out of the knuckle using the special tools shown and a hydraulic press.
    Pressing the wheel bearing out of the knuckle with a driver and attachment on a hydraulic press, knuckle supported on the front hub driver base.
  3. 20

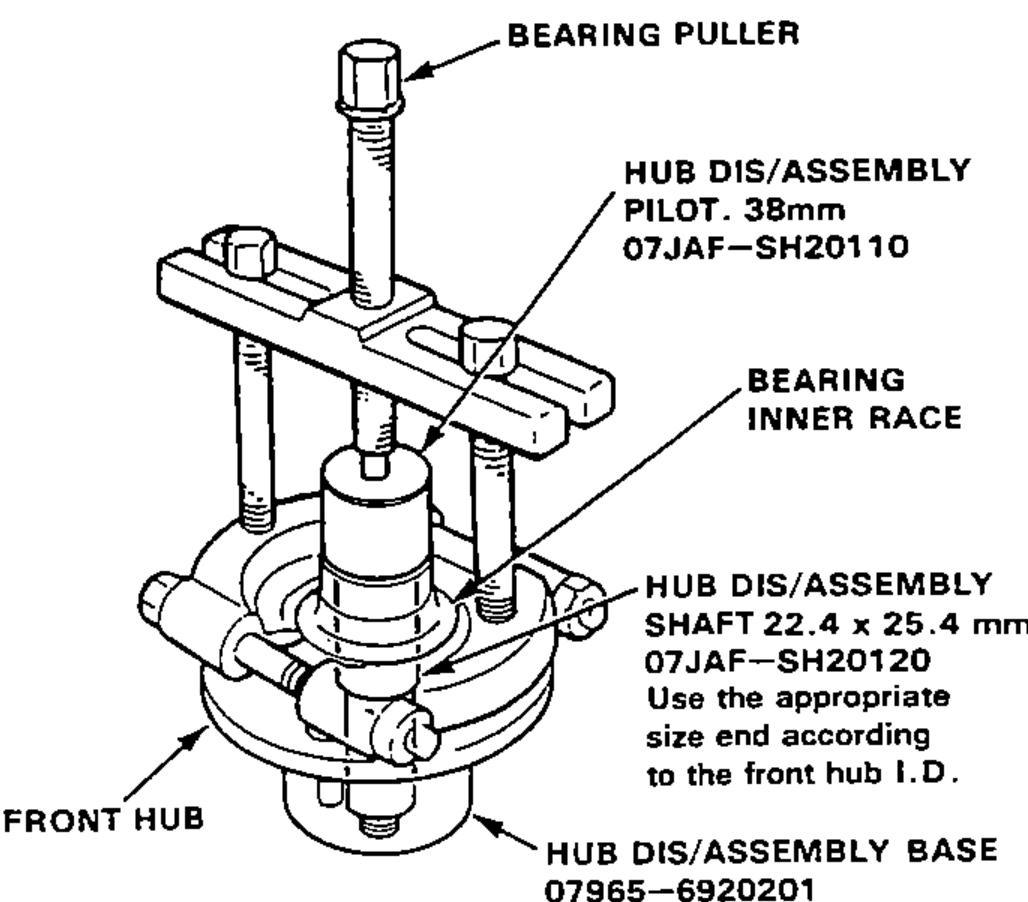

    Remove the outboard bearing inner race from the hub using the special tools shown and a bearing puller.
    CAUTION: To prevent damage to the tool make sure the threads are fully engaged before pressing.
    NOTE: Wash the knuckle and hub thoroughly in high flashpoint solvent before reassembly.
    Removing the outboard bearing inner race from the front hub using a bearing puller with hub disassembly/assembly pilot, shaft and base.
  4. 21

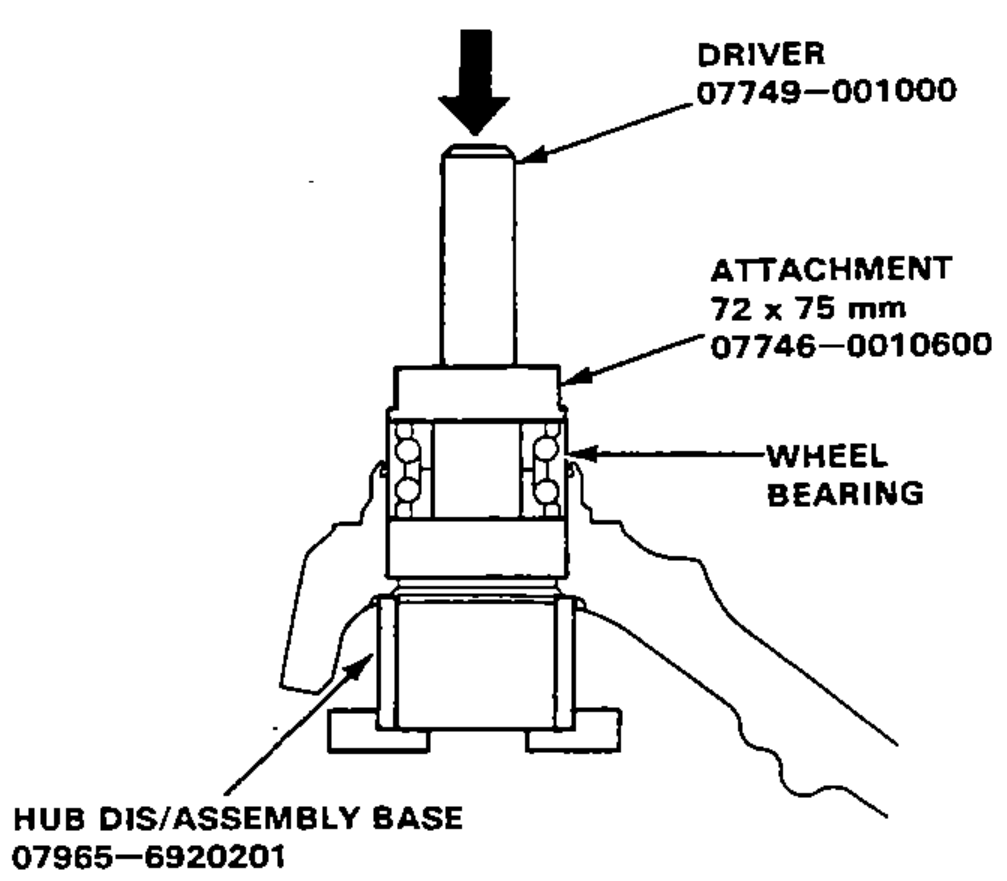

    Press a new wheel bearing into the hub using the special tools shown and a hydraulic press.
    Pressing a new wheel bearing into the hub using a driver and attachment on a hydraulic press, supported on the hub dis/assembly base.
  5. 22

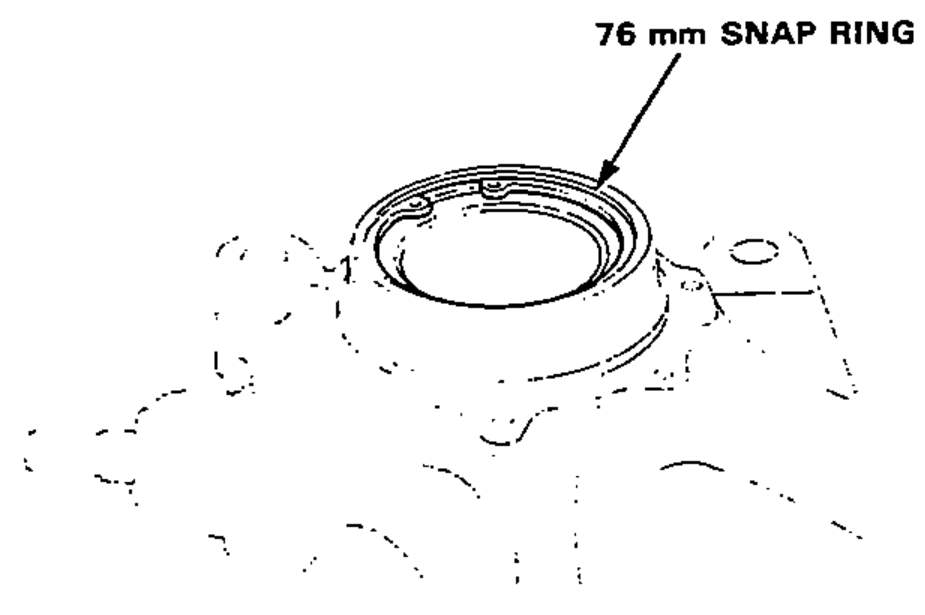

    Install the 76 mm snap ring securely in the knuckle groove.
    Installing the 76 mm snap ring securely in the knuckle groove.
