Rear Toe Inspection/Adjustment / Front Toe Inspection/Adjustment

12-5prose procedure

Rear Toe Inspection/Adjustment

  1. 1
    Release parking brake.
    NOTE: If the parking brake is engaged, you may get an incorrect reading.
    Rear toe in: 2±2 mm (0.079±0.079 in.)
    - If adjustment is required, go to step 2.
    - If no adjustment is required, remove alignment equipment.
  2. 2
    Before adjustment, note the locations of right and left compensator arm adjusting bolts.
  3. 3
    Loosen the adjusting bolt and slide the compensator arm in or out as shown, to adjust the toe.

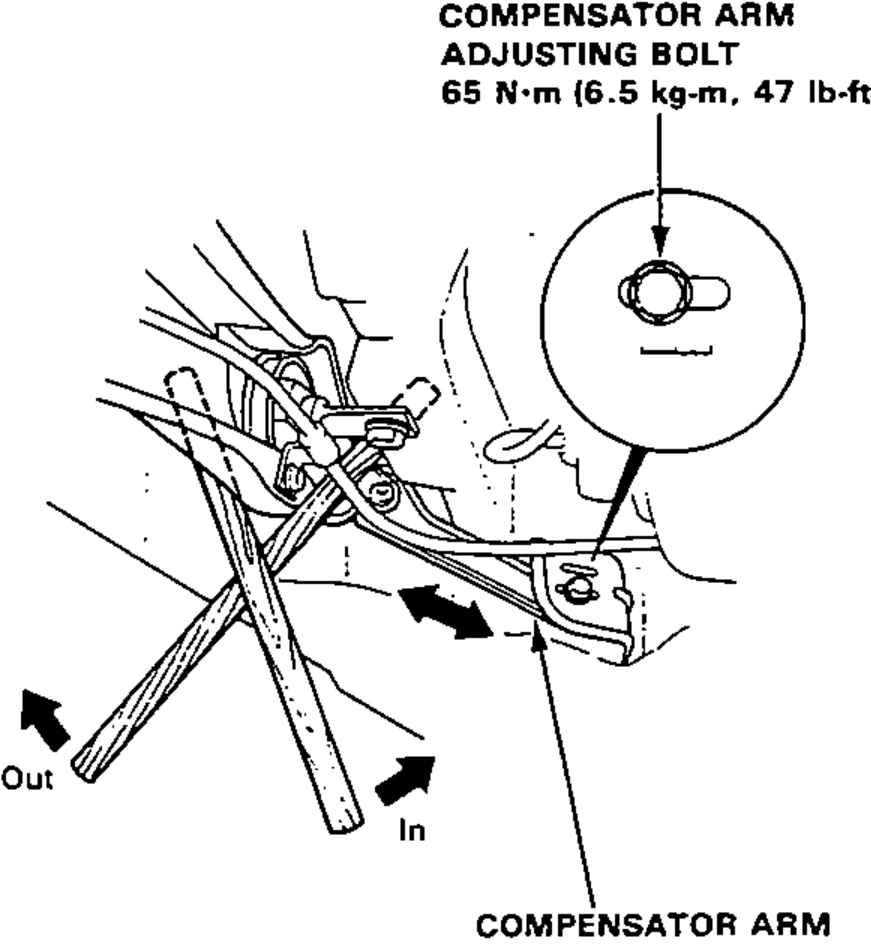

    Rear suspension underside view showing the compensator arm and its adjusting bolt; an inset close-up circle shows the adjusting bolt, with Out/In arrows indicating the direction the arm slides to adjust toe.
  4. 4
    Tighten the adjusting bolt.
Rear toe in
2±2 mm (0.079±0.079 in.)
Compensator arm adjusting bolt
65N·m

Front Toe Inspection/Adjustment

  1. 1
    Center Steering Wheel spokes.
    NOTE: Check the tire pressure before inspection.
    NOTE: Measure difference in toe measurements with the wheels pointed straight ahead.
    Front toe-in: 0±3 mm (0±0.118 in)
    - If adjustment is required, go on to step 2.
    - If no adjustment is required, remove alignment equipment.
  2. 2
    Loosen the tie-rod locknuts and turn both tie-rods in the same direction until the front wheels are in straight ahead position.

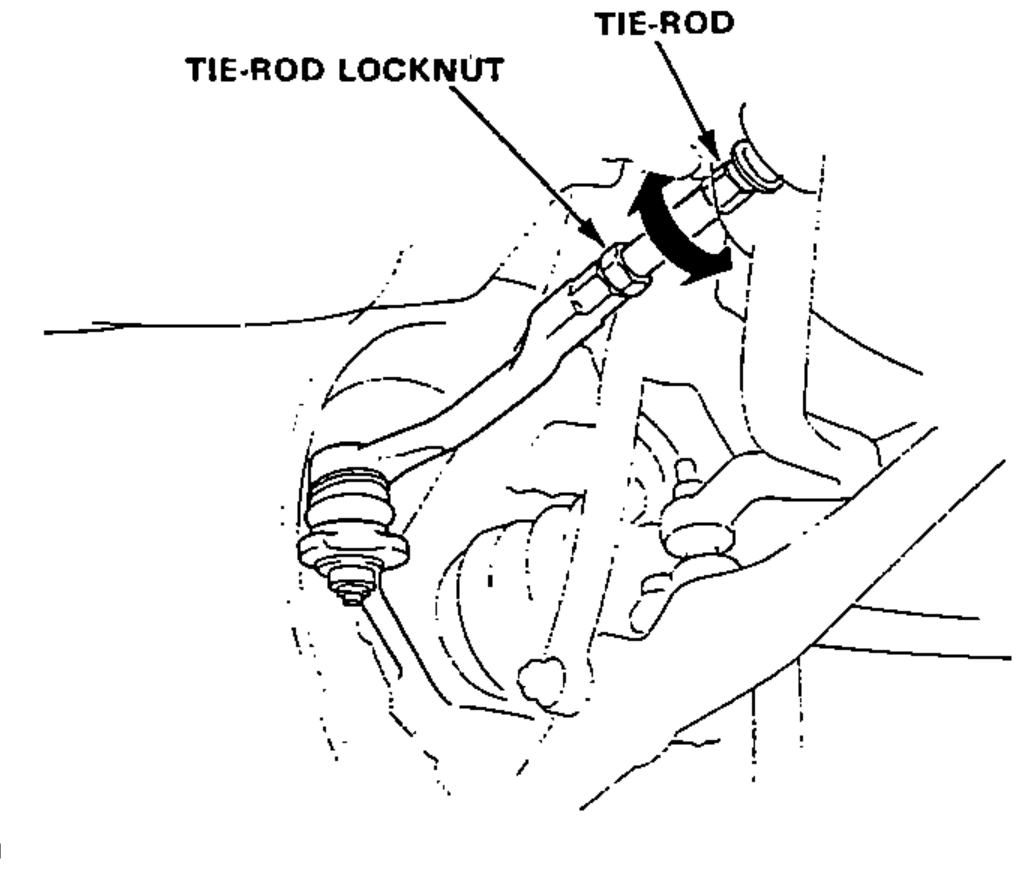

    Front suspension/steering linkage view showing the tie-rod and tie-rod locknut, with a curved arrow indicating the tie-rod is turned to adjust front toe.
  3. 3
    Turn both tie-rods equally until the toe reading on the turning radius gauge is correct.
  4. 4
    After adjusting, tighten the tie-rod locknuts.
    NOTE: Reposition the tie-rod boot if twisted or displaced after adjustment has been made.
Front toe-in
0±3 mm (0±0.118 in)
