Hub Unit Bearing Replacement / Damper Removal

12-23prose procedure
  1. 1
    Jack up the rear of car and support on safety stands in proper location.
  2. 2
    Remove the rear wheel, two 6 mm screws and brake disc.
    If the brake disc is difficult to remove, install 8 mm bolts into the threaded and tighten them.
  3. 3
    Remove the hub unit cap unstake the spindle nut, then loosen the spindle nut.
  4. 4
    Remove the hub unit and hub unit bearing.

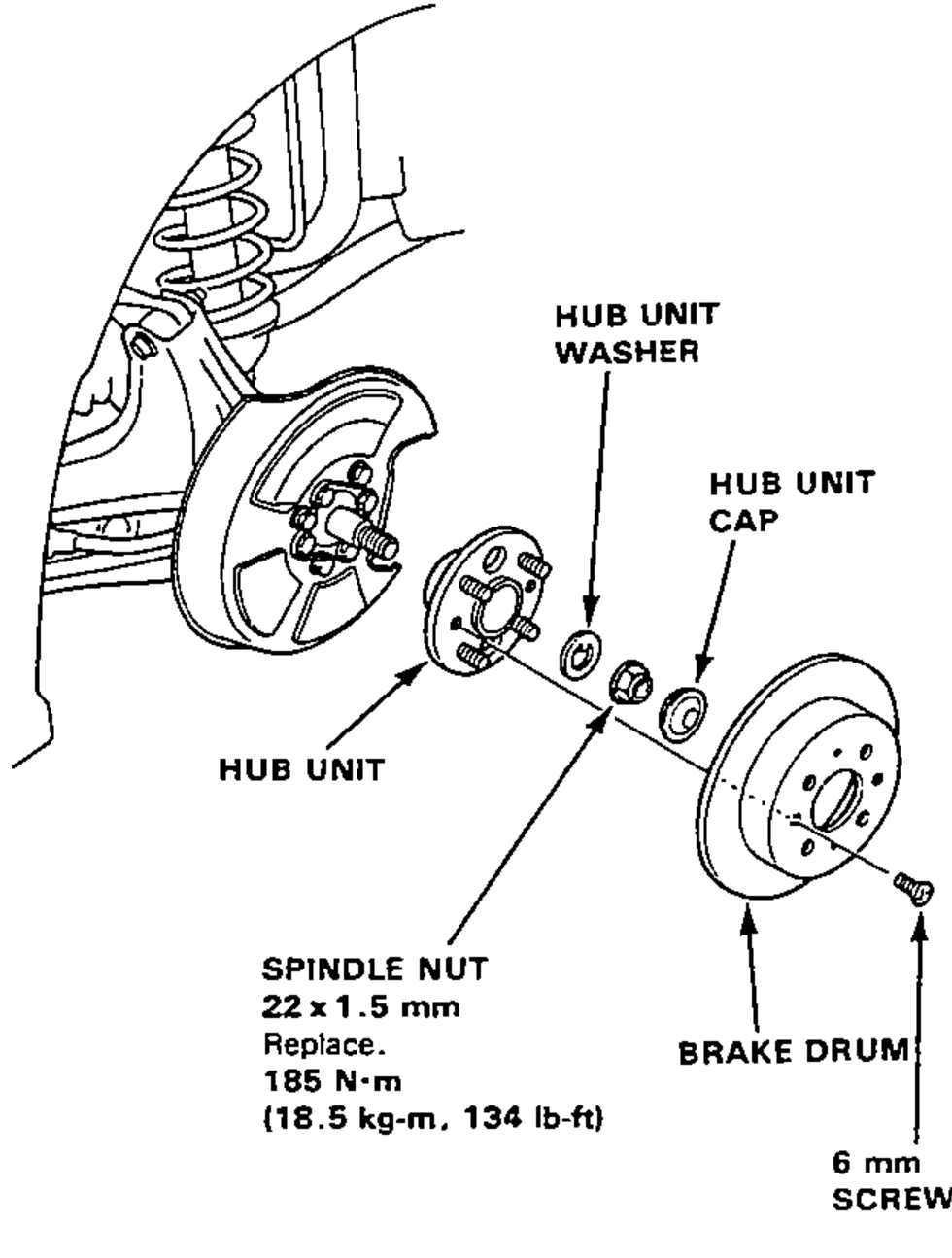

    Exploded view of the rear hub unit bearing assembly, showing the rear suspension knuckle/brake disc on the left and the disassembled hub components laid out to the right.

Damper Removal

  1. 1
    Jack up the rear of car and support on safety stands in proper locations.
  2. 2
    Remove the damper upper cover at the rear seat lining.

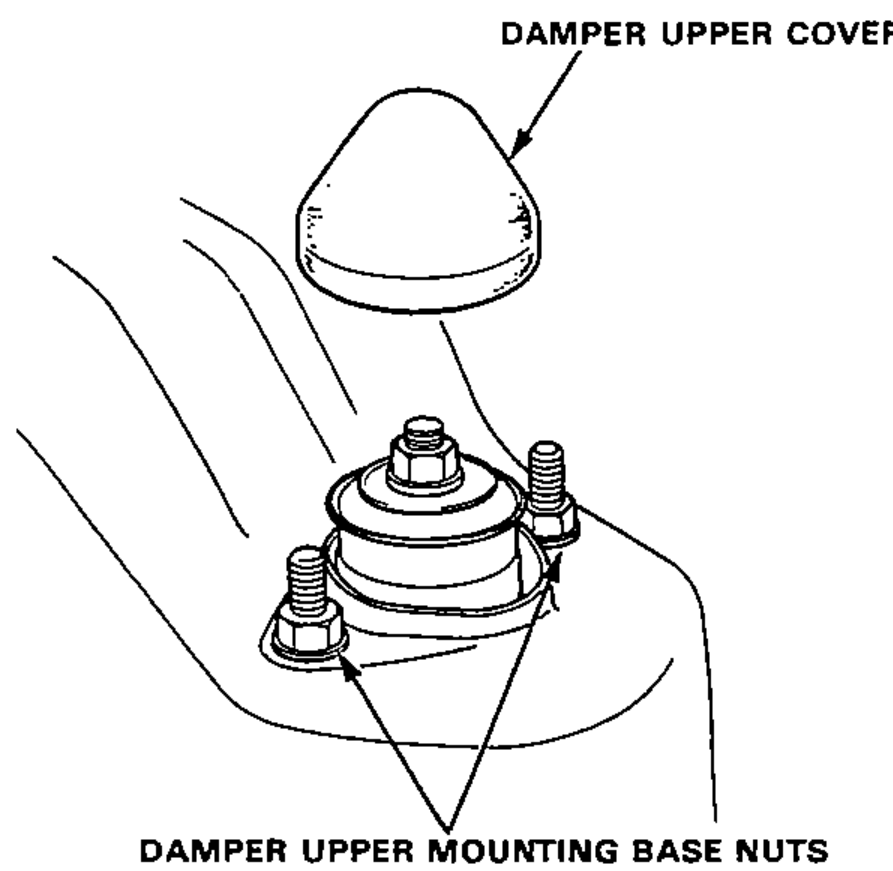

    Detail of the rear damper upper area showing the damper upper cover removed and the damper upper mounting base nuts.
  3. 3
    Remove the damper upper mounting base nuts.
  4. 4
    Remove the damper mounting bolt.

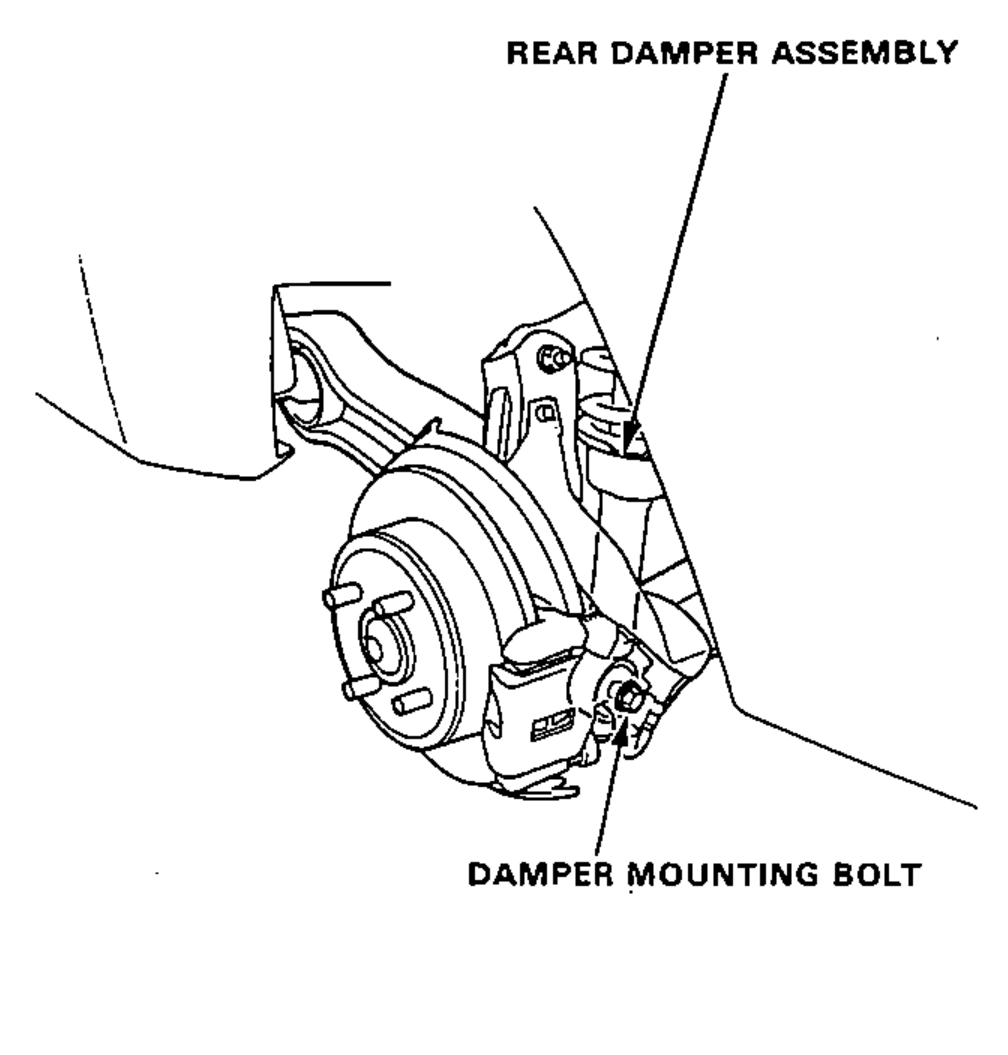

    Rear damper assembly at the lower mounting, showing the damper mounting bolt at the knuckle/lower arm.
  5. 5
    Lower the lower arms and remove the damper assembly.
Spindle nut
185N·m
