Installation

14-21prose procedure
  1. 1
    Scrape the old adhesive smooth with a knife, to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire window glass flange.
    Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
    Remove all traces of the rubber spacer material from the body.
    Mask off surrounding surfaces before applying primer.
  2. 2
    Clean the body bonding surface with a sponge dampened in alcohol.
    After cleaning, keep oil, grease or water from getting on the surface.
  3. 3
    If the glass is to be reinstalled, use a putty knife to scrape off all traces of old adhesive, then clean the glass surface with alcohol where new adhesive is to be applied.
    Make sure the bonding surface is kept free of water, oil and grease.

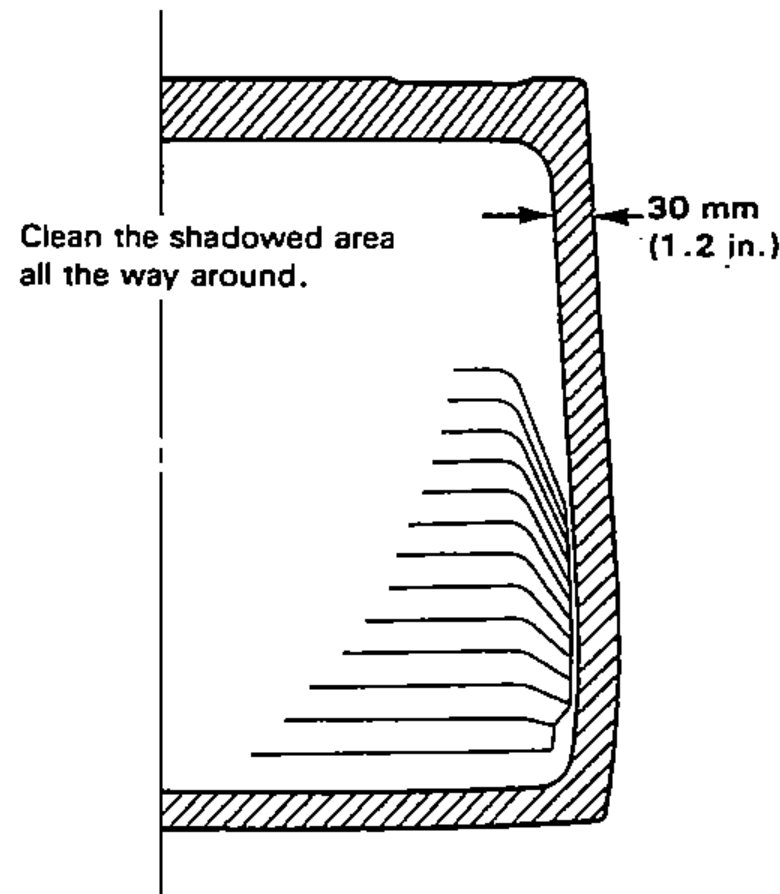

    Cross-section of the window glass flange showing the area to be cleaned. A 30 mm (1.2 in.) wide band along the edge is to be cleaned all the way around; the shadowed (hatched) area marks the bonding surface.
  4. 4
    Install the upper clips.

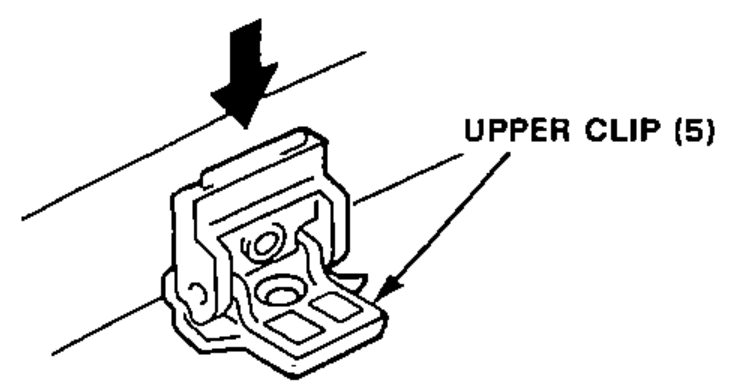

    Detail of installing an upper clip onto the body flange, with a downward installation arrow.
  5. 5
    Install the rear window trim in the tailgate.

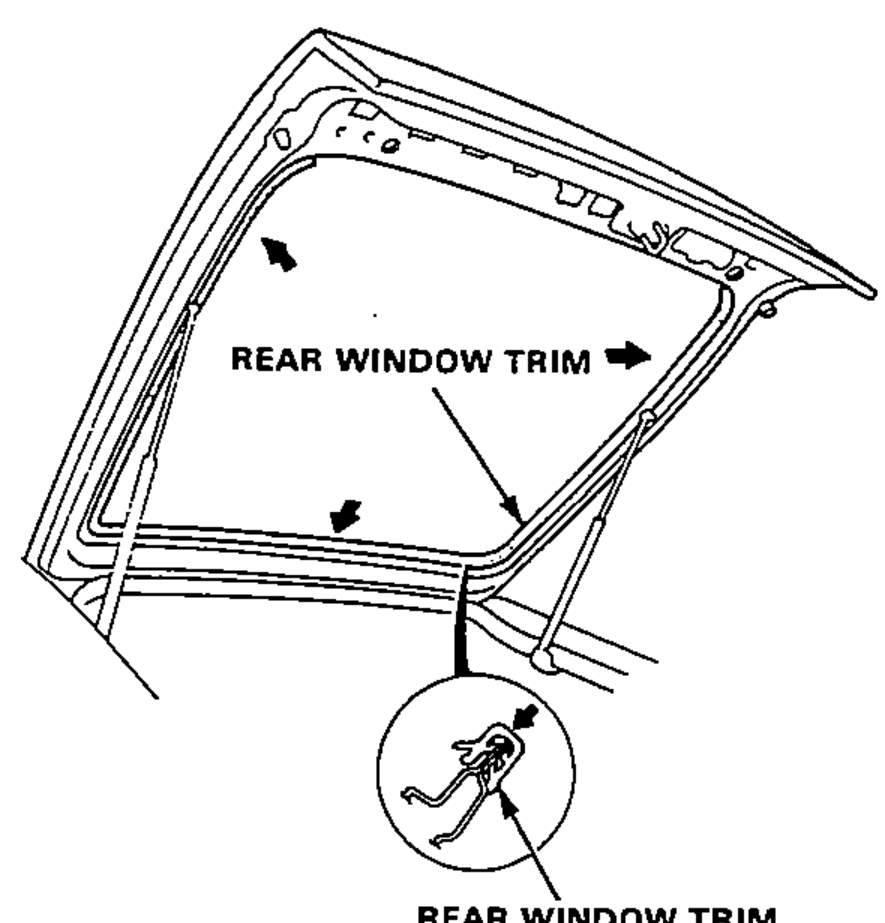

    Rear view of the tailgate opening showing installation of the rear window trim, with arrows indicating trim location and an enlarged detail circle of the rear window trim cross-section.
  6. 6
    Adhere the side moldings, lower molding clips and lower molding to the side and lower edge of the glass as shown.

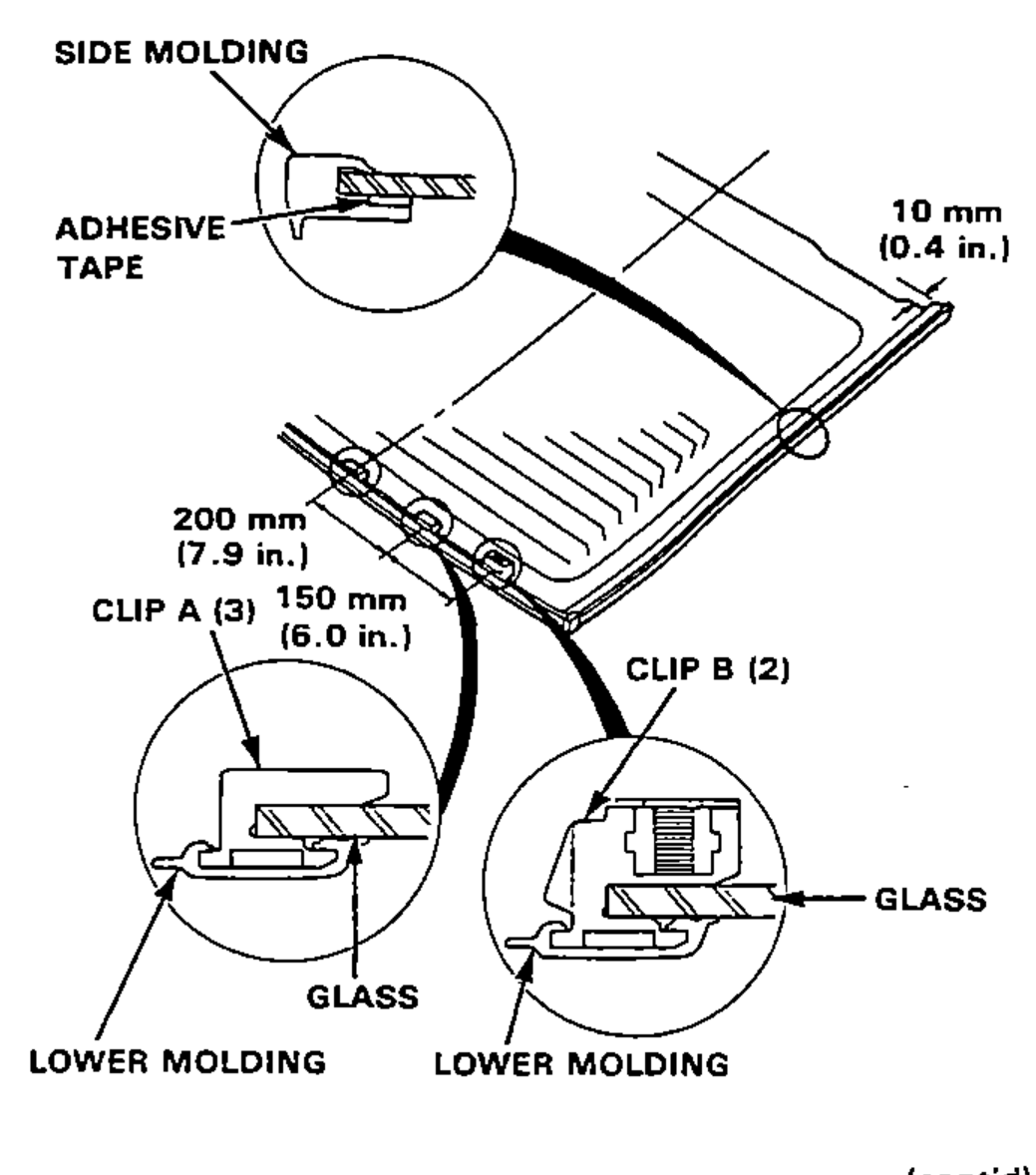

    Exploded/detail view of adhering side moldings, lower molding clips and lower molding to the side and lower edges of the glass, with spacing dimensions and two enlarged cross-section detail circles (CLIP A and CLIP B).
(cont'd)
