Manual Door Mirror
14-9prose procedureRemoval

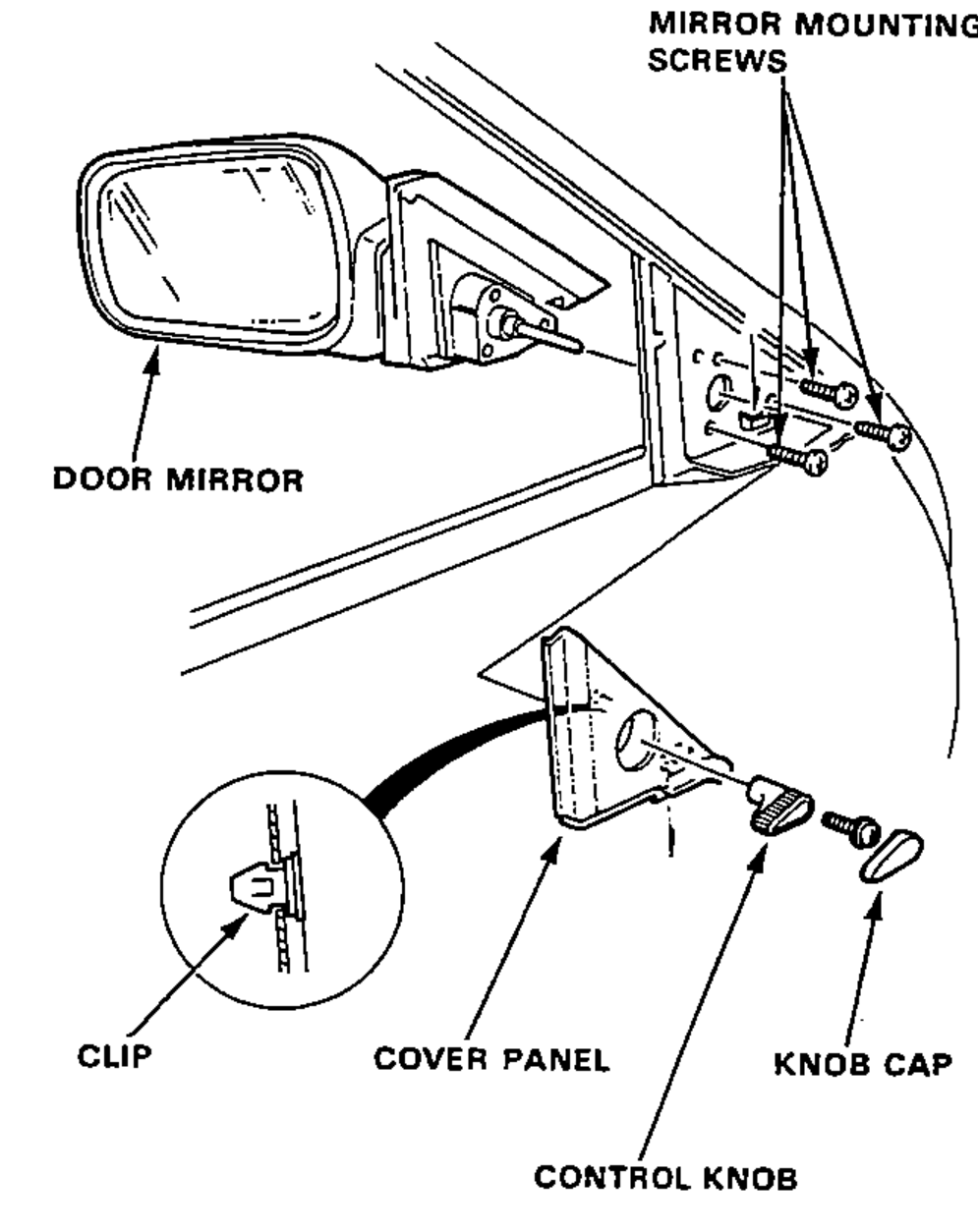

- 1Remove the knob cap and screw, then remove the control knob.
- 2Pry out the cover panel with a flat-tip screwdriver, then remove the cover panel.
- 3Remove the mirror mounting screws while holding the mirror.
Mirror Glass Replacement

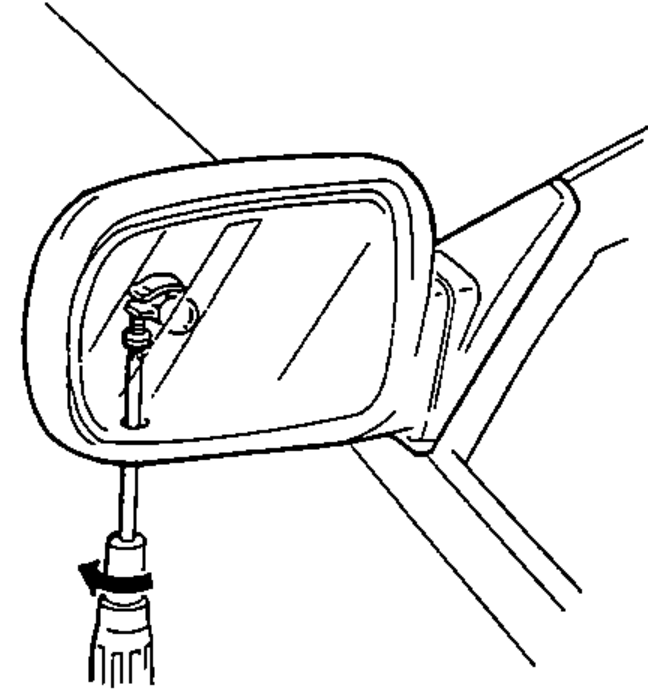

- 1Insert a screwdriver in the mirror through the service hole, and loosen the glass retaining screw.

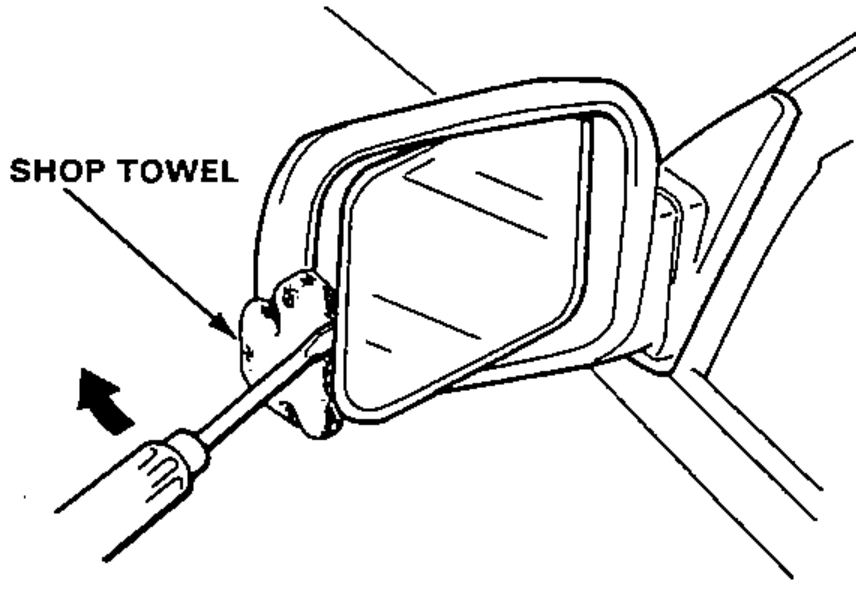

- 2Carefully pry out the mirror with a flat-tip screwdriver as shown.CAUTION: To prevent damage to the mirror, wrap the end of the screwdriver with a shop towel.

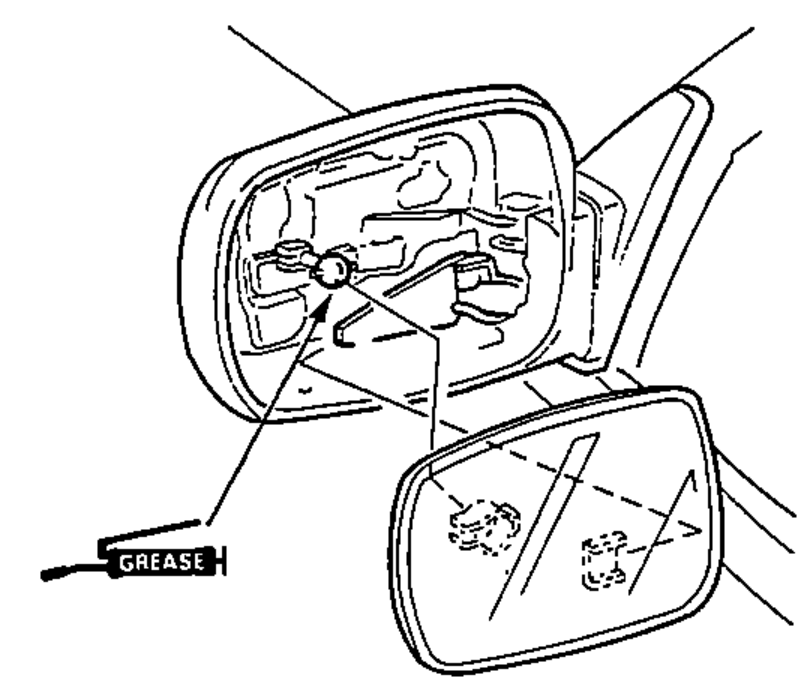

- 3Install the mirror in the reverse order of removal, and also apply grease to the location shown.
CAUTION
To prevent damage to the mirror, wrap the end of the screwdriver with a shop towel.
