Seat Belts - Front Replacement

14-49prose procedure

Front Replacement

  1. 1
    Remove the quarter trim panel (page 14-44).
  2. 2
    Remove the upper anchor bolt, lower anchor bolt and retractor bolt with a 17 mm socket or box-end wrench.
  3. 3
    Slide the front seat forward until the seat belt center anchor bolt is accessible, then remove the bolt and the center anchor.

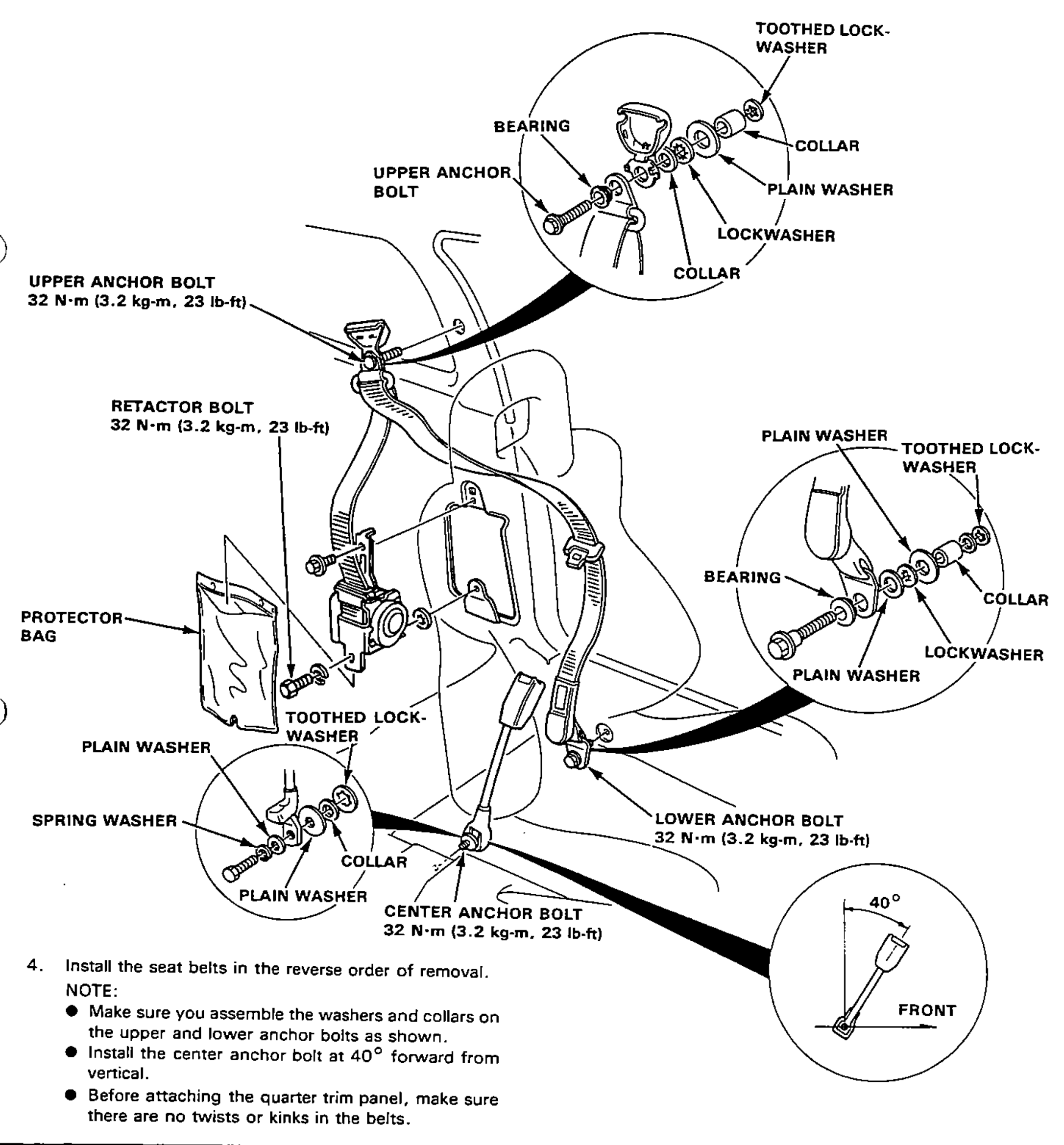

    Exploded illustration of the front seat belt assembly showing the upper anchor bolt, retractor bolt, lower anchor bolt and center anchor bolt routing on the front seat, with three magnified call-out circles detailing the washer/collar stack at each anchor and a small inset showing the center anchor bolt installed 40 degrees forward from vertical.
  4. 4
    Install the seat belts in the reverse order of removal.
    Make sure you assemble the washers and collars on the upper and lower anchor bolts as shown.
    Install the center anchor bolt at 40° forward from vertical.
    Before attaching the quarter trim panel, make sure there are no twists or kinks in the belts.
Upper anchor bolt
32N·m
Retractor bolt
32N·m
Lower anchor bolt
32N·m
Center anchor bolt
32N·m
