Honda CRX silhouetteCRX

Quarter Glass - Installation

14-29prose procedure

Installation

  1. 1
    Scrape the old adhesive smooth with a knife, to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire glass flange.
    Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
    Remove all traces of the rubber spacer material from the body.
    Mask off surrounding surfaces before applying primer.
  2. 2
    Clean the body bonding surface with a sponge dampened in alcohol.
    After cleaning, keep oil, grease or water from getting on the surface.
  3. 3
    If the glass is to be reinstalled, use a putty knife to scrape off all traces of old adhesive, then clean the glass surface with alcohol where new adhesive is to be applied.
    Make sure the bonding surface is kept free of water, oil and grease.

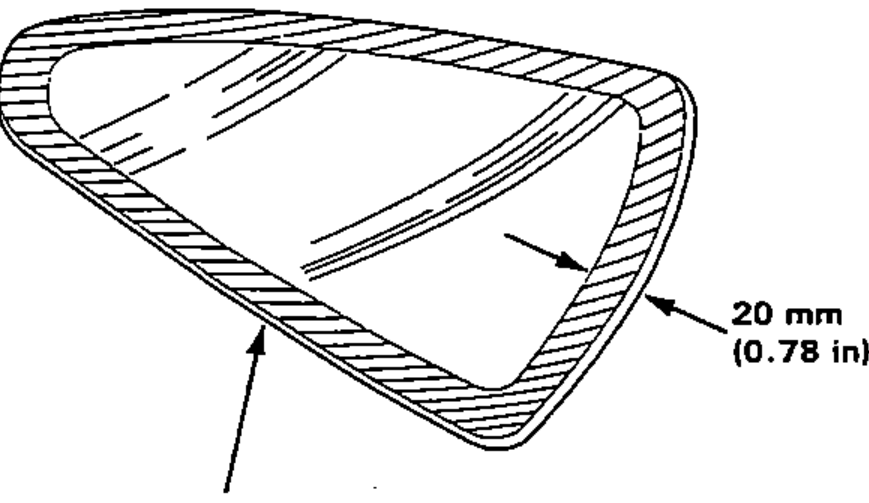

    Quarter glass shown with the bonding flange area cross-hatched; an arrow indicates the 20 mm wide band to be cleaned around the glass edge.
  4. 4
    Attach the front molding and 3 clips to the front edge of the quarter glass as shown.

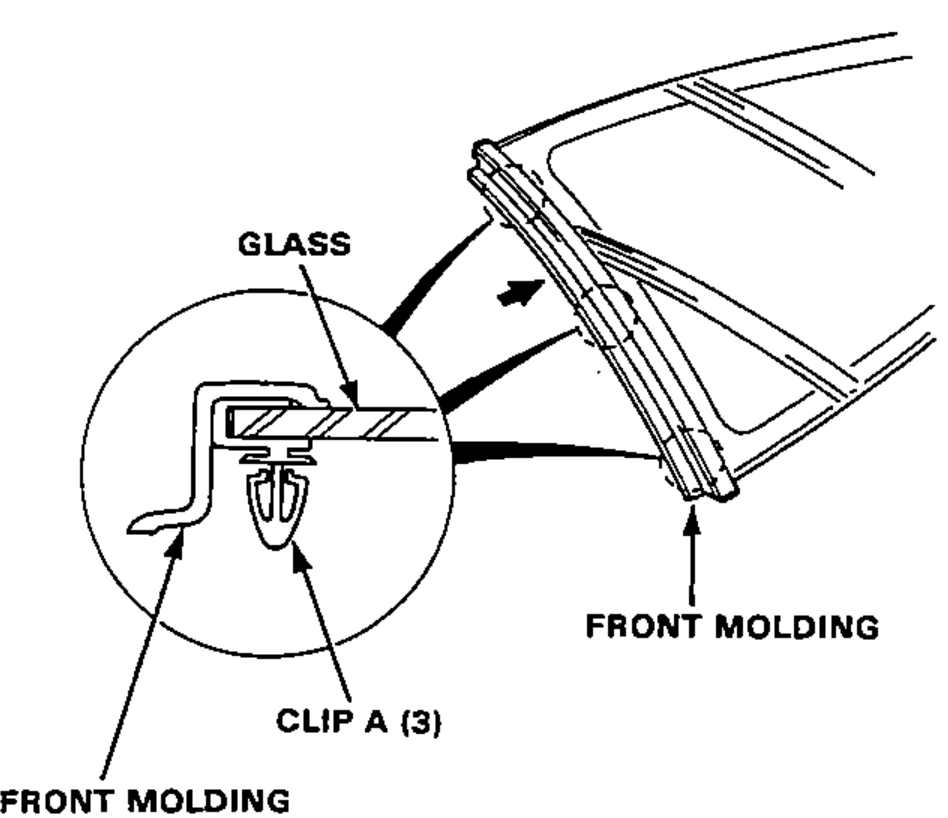

    Front edge of the quarter glass with the front molding and three Clip A pieces attached; a detail circle shows the clip cross-section gripping the glass.
  5. 5
    Install the quarter molding on the glass by using the clips shown.

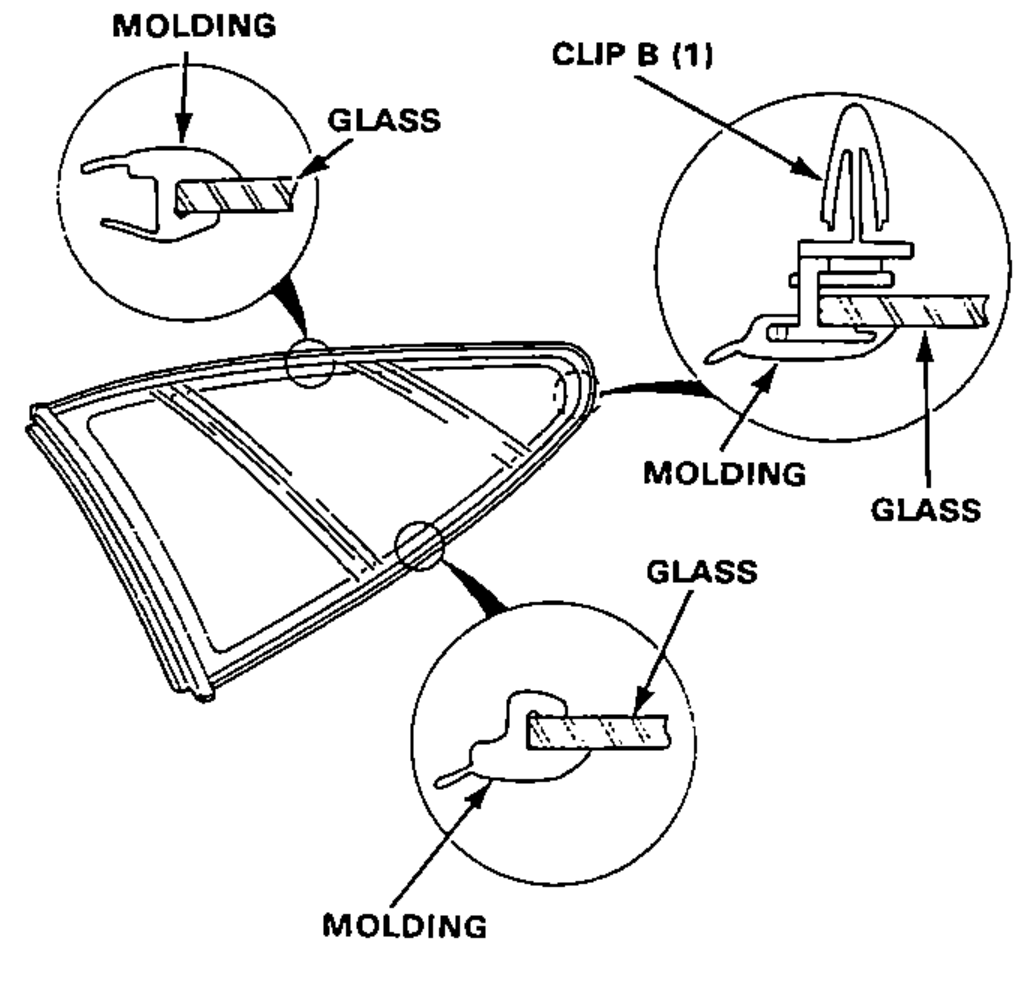

    Quarter molding installed on the glass using the clips, with three detail circles showing the molding/glass cross-sections and Clip B engagement.
(cont'd)
