Lift and Support Points
1-5prose procedureHoist

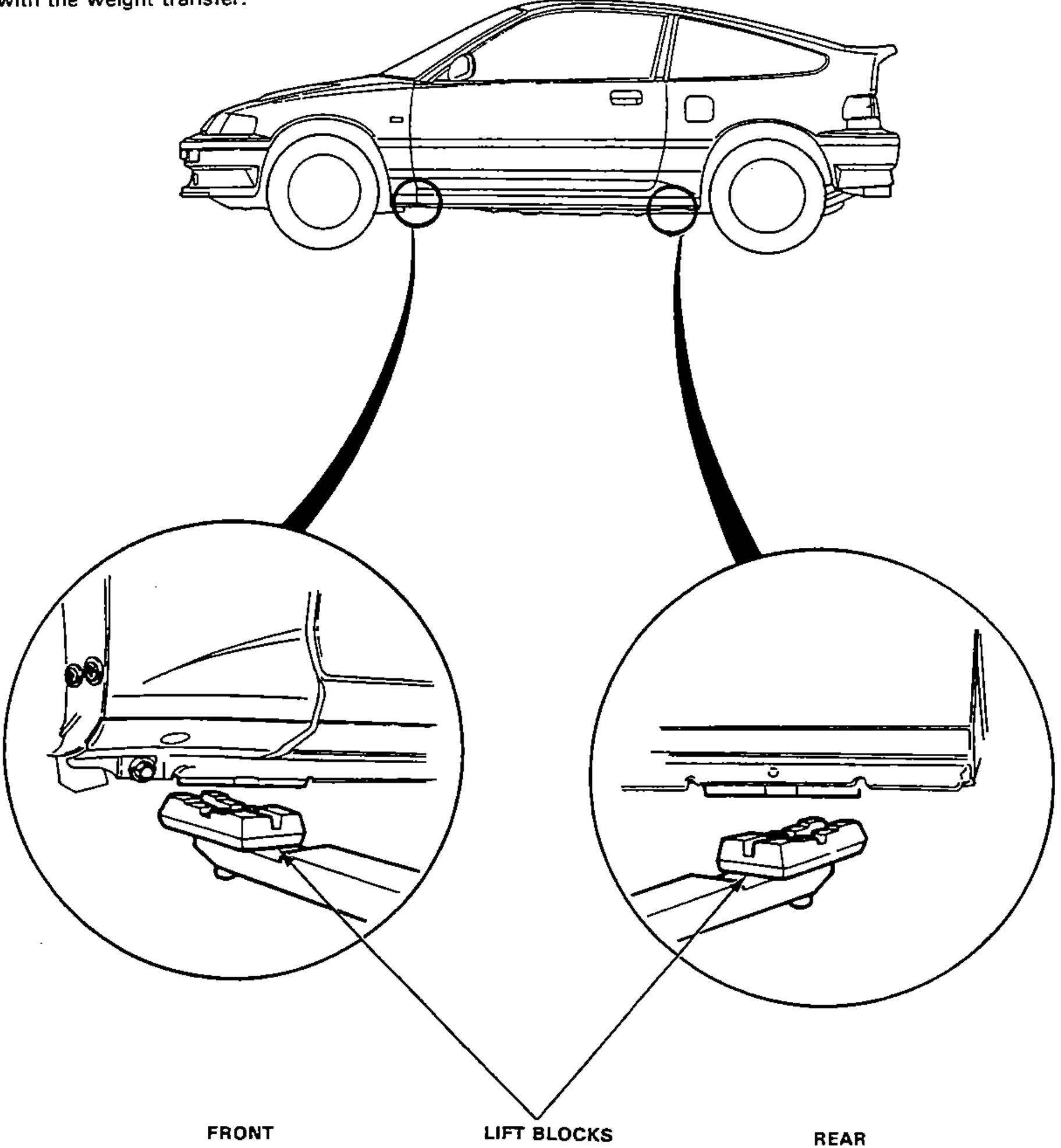

- 1Place the lift blocks as shown.
- 2Raise the hoist a few inches and rock the car to be sure it is firmly supported.
- 3Raise the hoist to full height and inspect lift points for solid support.
WARNING
When heavy rear components such as suspension, fuel tank, spare tire and trunk lid/hatch are to be removed, place additional weight in the trunk before hoisting. When substantial weight is removed from the rear of the car, the center of gravity may change and can cause the car to tip forward on the hoist.
NOTE
Since each tire/wheel assembly weighs approximately 14 kg (30 lbs), placing the front wheels in the trunk will assist with the weight transfer.
