Lift and Support Points (cont'd)

1-6prose procedure
Continued from 1-5

Floor Jack

  1. 1
    Set the parking brake and block the wheels that are not being lifted.
    Front jacking point: enlarged detail circle of the front floor-jack lift platform engaging the jacking bracket, with a rear-three-quarter view of the car showing the jack location. An up-arrow indicates the lift direction.
  2. 2
    When lifting the rear of the car, put the gearshift lever in reverse.

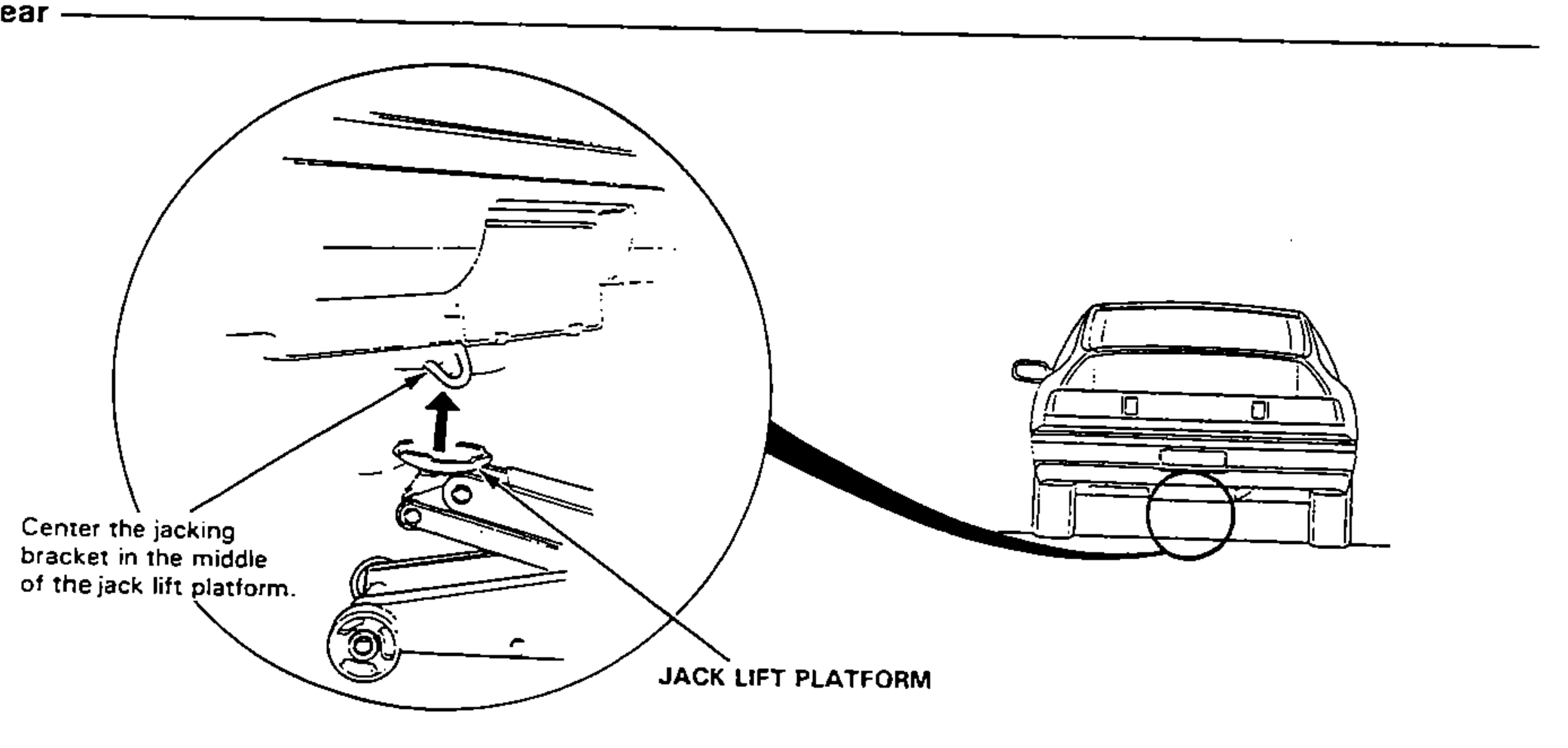

    Rear jacking point: enlarged detail circle of the rear floor-jack lift platform engaging the jacking bracket, with a rear view of the car showing the jack location. An up-arrow indicates the lift direction.
  3. 3
    Raise the car high enough to insert the safety stands.
  4. 4
    Adjust and place the safety stands as shown on page 1-7 so the car will be approximately level, then lower the car onto the stands.
