Disassembly

13-17prose procedure
  1. 1
    Scribe an aligning mark across the front and rear booster housings to ensure proper positioning of parts on reassembly.
  2. 2

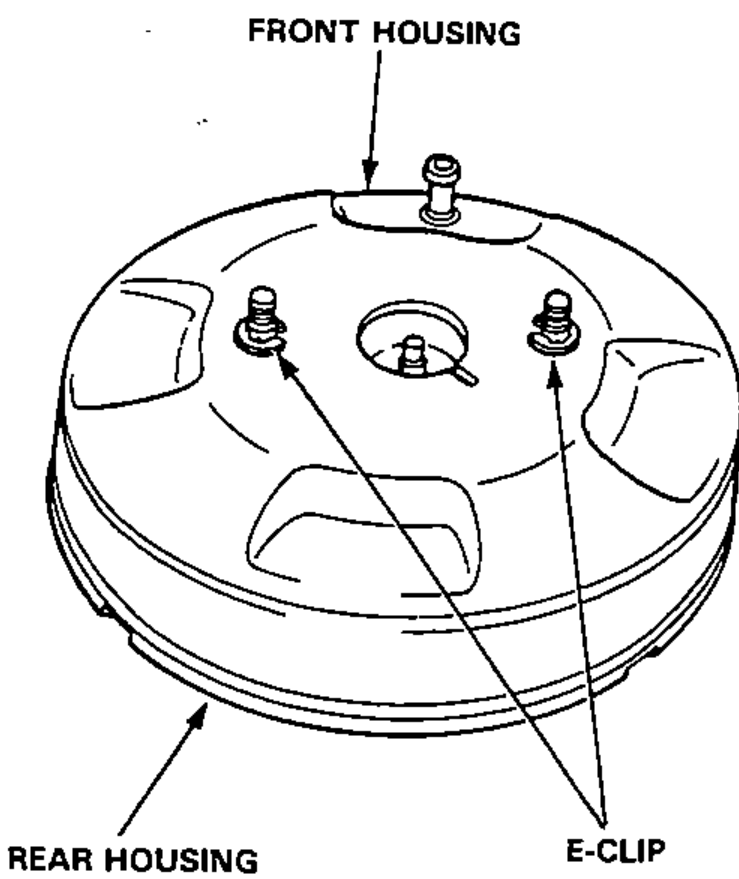

    Remove the E-clips, and separate the front booster housing and the rear booster housing.
    Exploded/assembled view of the brake booster showing the front housing separating from the rear housing, with the E-clips that hold them together.
  3. 3

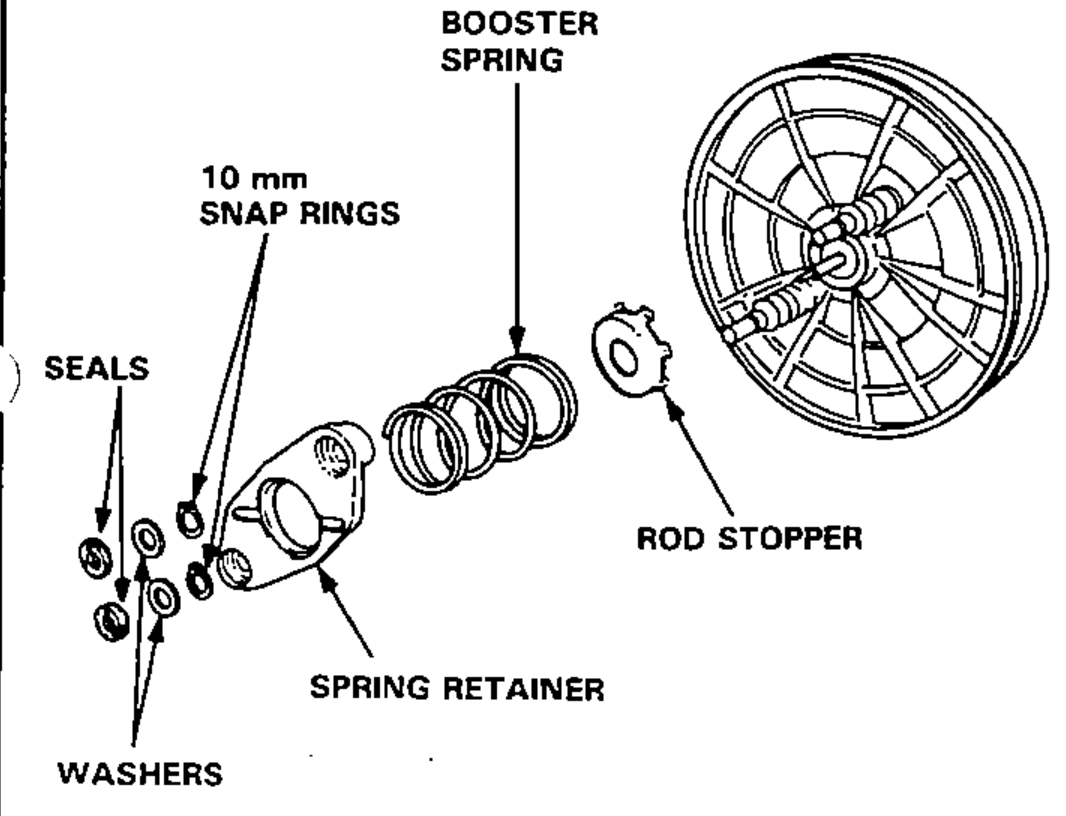

    Remove the seals and washers from the spring retainer, then remove the spring retainer, booster spring and rod stopper by removing the 10 mm snap rings.
    Exploded view of the booster internal parts: seals, washers, spring retainer, booster spring, 10 mm snap rings and rod stopper.
  4. 4

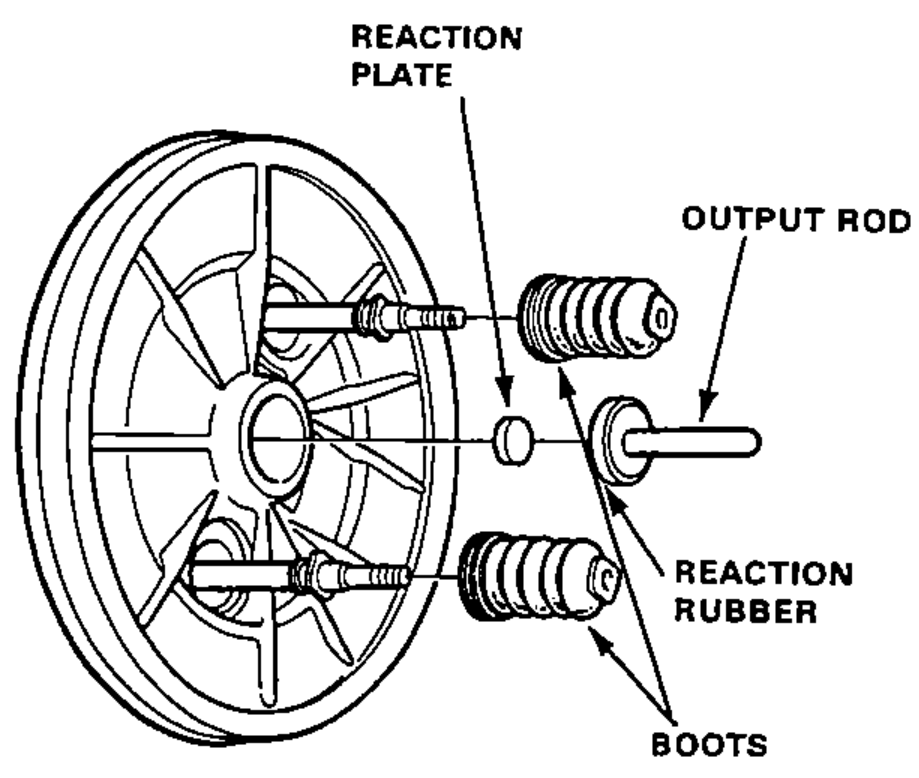

    Remove the output rod, reaction rubber and reaction plate.
    Exploded view of the booster output assembly showing the reaction plate, reaction rubber, output rod and boots being removed from the diaphragm/disc.
  5. 5
    Remove the boots.
  6. 6
    Separate the booster piston from the housing.
  7. 7

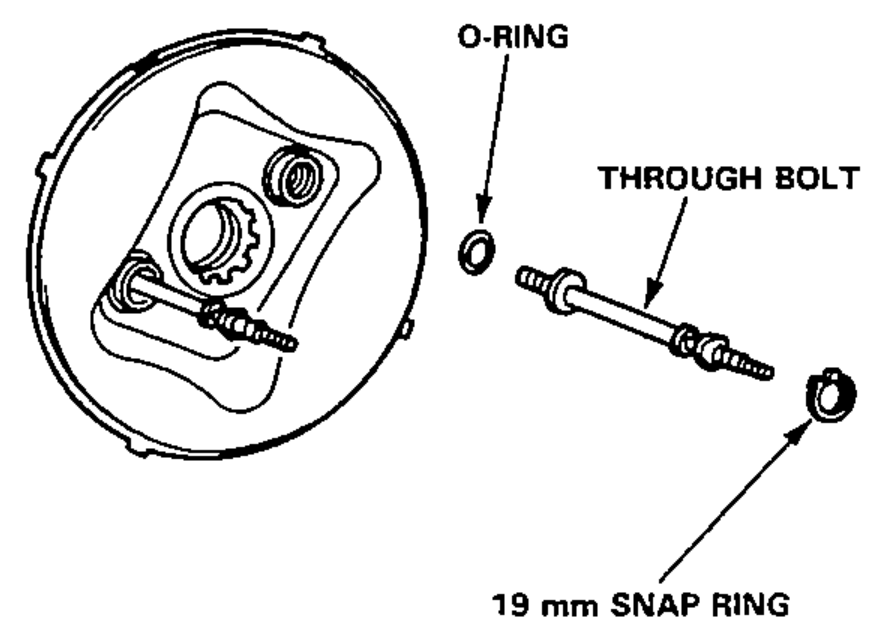

    Remove the 19 mm snap ring and remove the through bolts with O-rings from the rear housing.
    Exploded view of the rear booster housing showing the 19 mm snap ring and the through bolt with its O-ring.
