Brake Booster - Disassembly (cont'd)

13-18prose procedure
Continued from 13-17

Disassembly (cont'd)

  1. 8

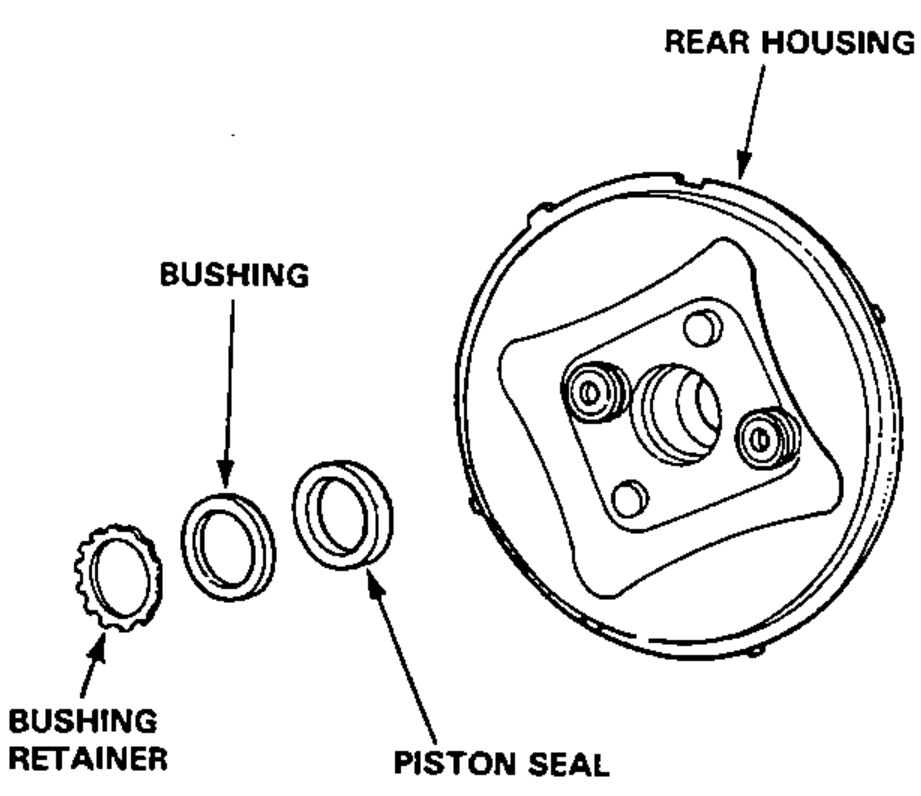

    Remove the bushing retainer, bushing and piston seal from the rear housing.
    Exploded view of the rear booster housing with the bushing retainer, bushing and piston seal being removed.
  2. 9

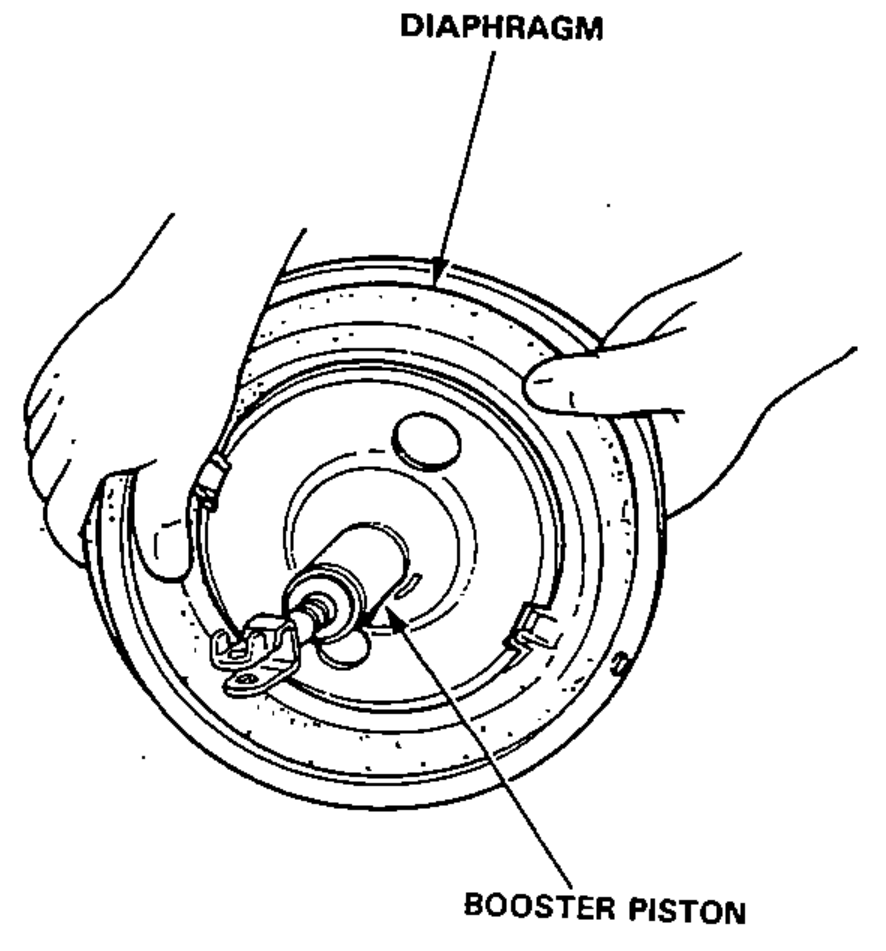

    Remove the diaphragm from the booster piston.
    Two hands removing the diaphragm from the booster piston.
  3. 10

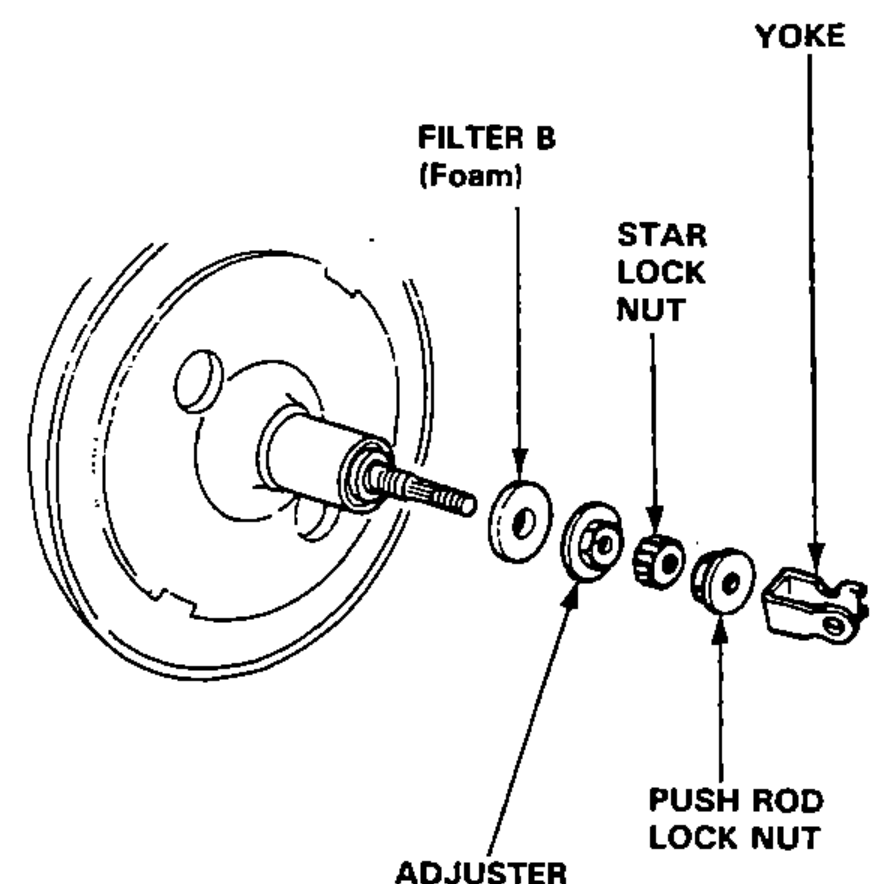

    Remove the push rod yoke, push rod lock nut, star lock nut, adjuster and filter B (foam) from the booster piston.
    Exploded view of the booster piston push rod assembly: push rod yoke, push rod lock nut, star lock nut, adjuster and filter B (foam).
  4. 11

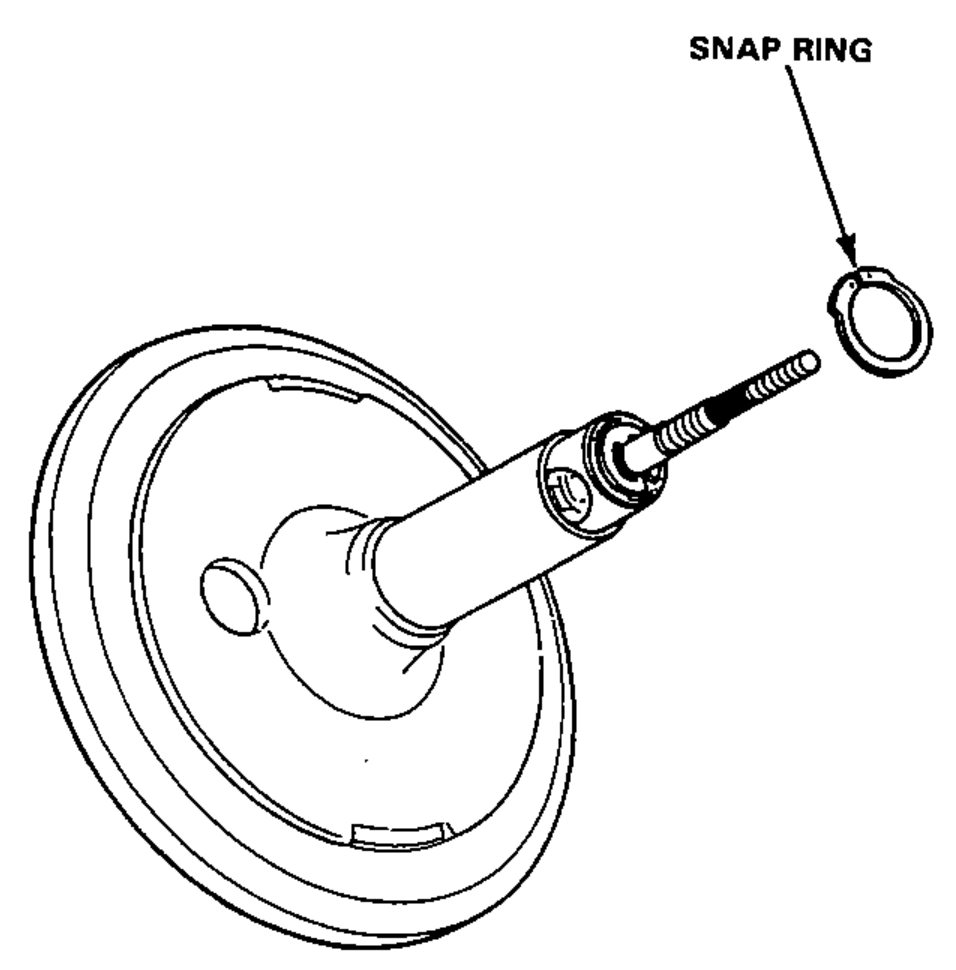

    Remove the push rod by removing the snap ring.
    Booster piston with the push rod being removed after removing the snap ring.
