Disassembly (cont'd) / Rebuild Kit

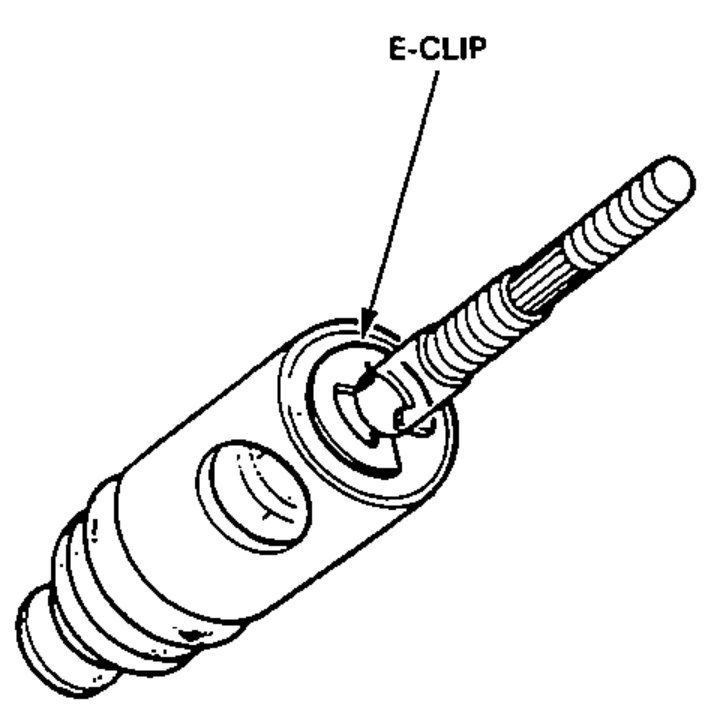

13-19prose procedure- 12Remove the E-clip from the push rod.

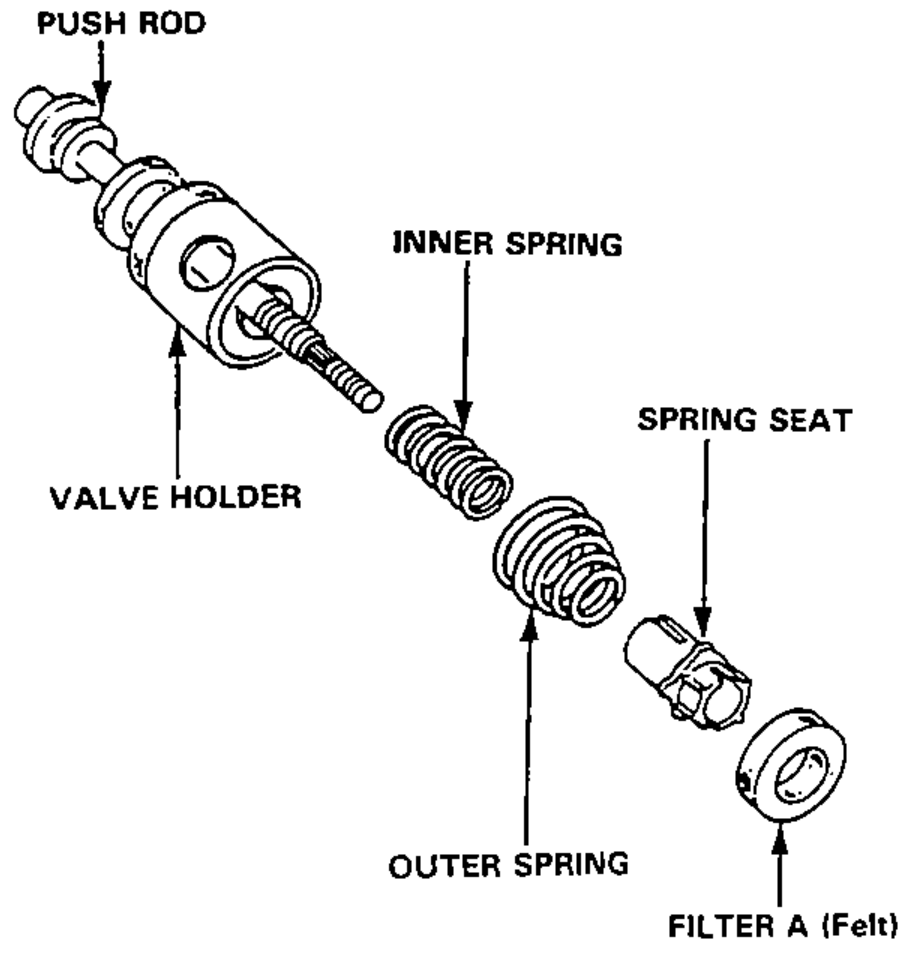

- 13Remove filter A (Felt), spring seat, outer valve spring, inner valve spring, valve holder, poppet valve and push rod.
Rebuild Kit
Rebuild kit contents: E-clip, seal, 10 mm snap ring, reaction rubber, boot, diaphragm, poppet valve, filter A (felt), E-clip, filter B (foam), snap ring, bushing retainer, bushing, piston seal, 19 mm snap ring, O-ring and silicone grease.
