Rear Brake Pad/Disc - Inspection and Replacement
13-28prose procedureInspection and Replacement
- 1Block the front wheels, support the rear of car on safety stands, then remove the rear wheels.

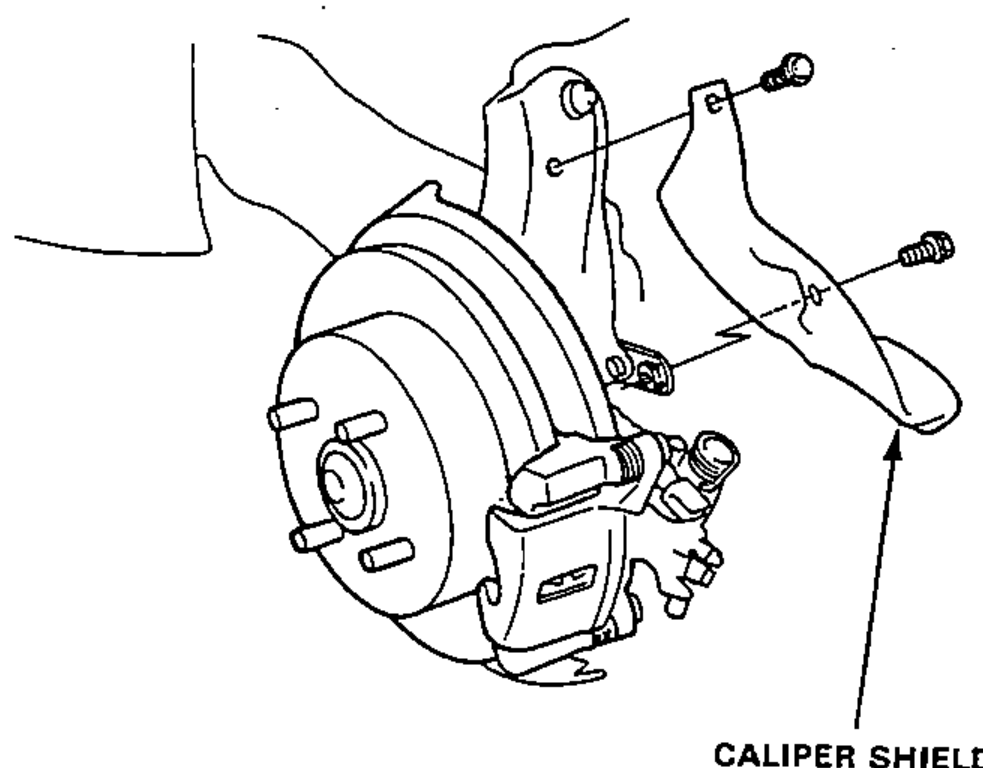

- 2Remove the caliper shield.

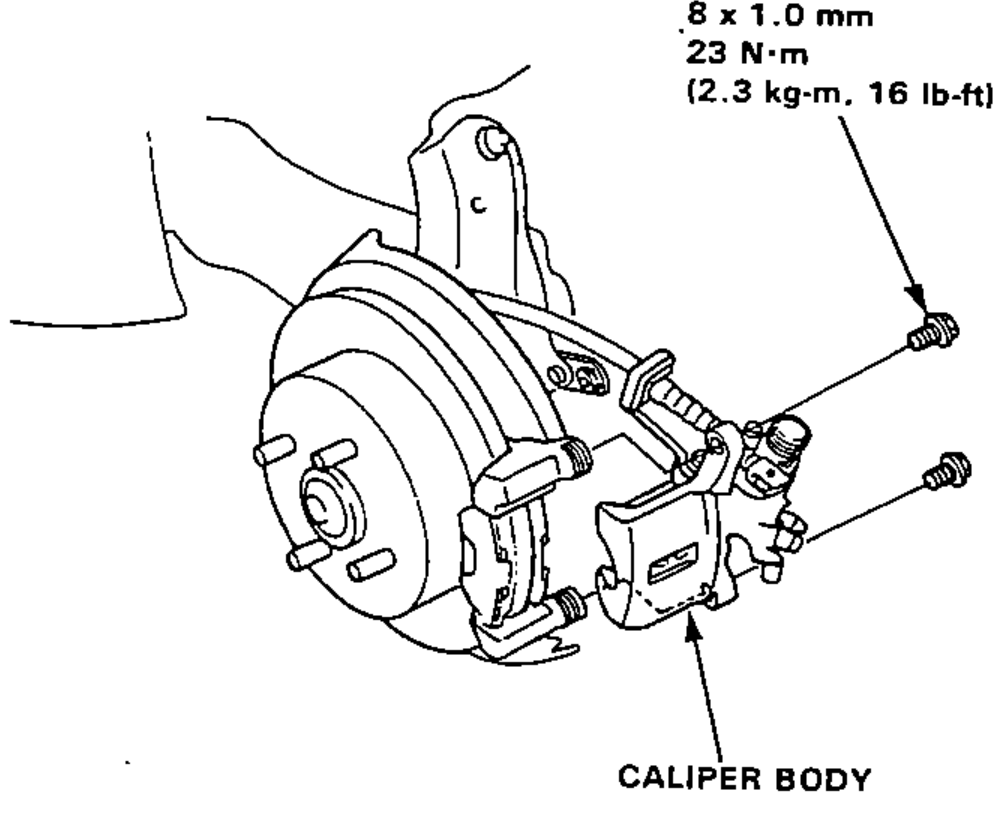

- 3Remove the two caliper mounting bolts and the caliper from the bracket.
- 4Remove the pads and measure the thickness of each brake pad lining using a vernier caliper.
- 5If the lining thickness is less than service limit, replace the brake pads as a set.
| Specification | Value |
|---|---|
| Brake Pad Thickness - Standard | 8.0 mm (0.31 in) |
| Brake Pad Thickness - Service limit | 1.6 mm (0.06 in) |
Brake Pad Thickness - Standard
8.0 mm (0.31 in)
Brake Pad Thickness - Service limit
1.6 mm (0.06 in)
