Flywheel and Clutch — Installation (cont'd)

7-10prose procedure
Continued from 7-9

Installation (cont'd)

  1. 5

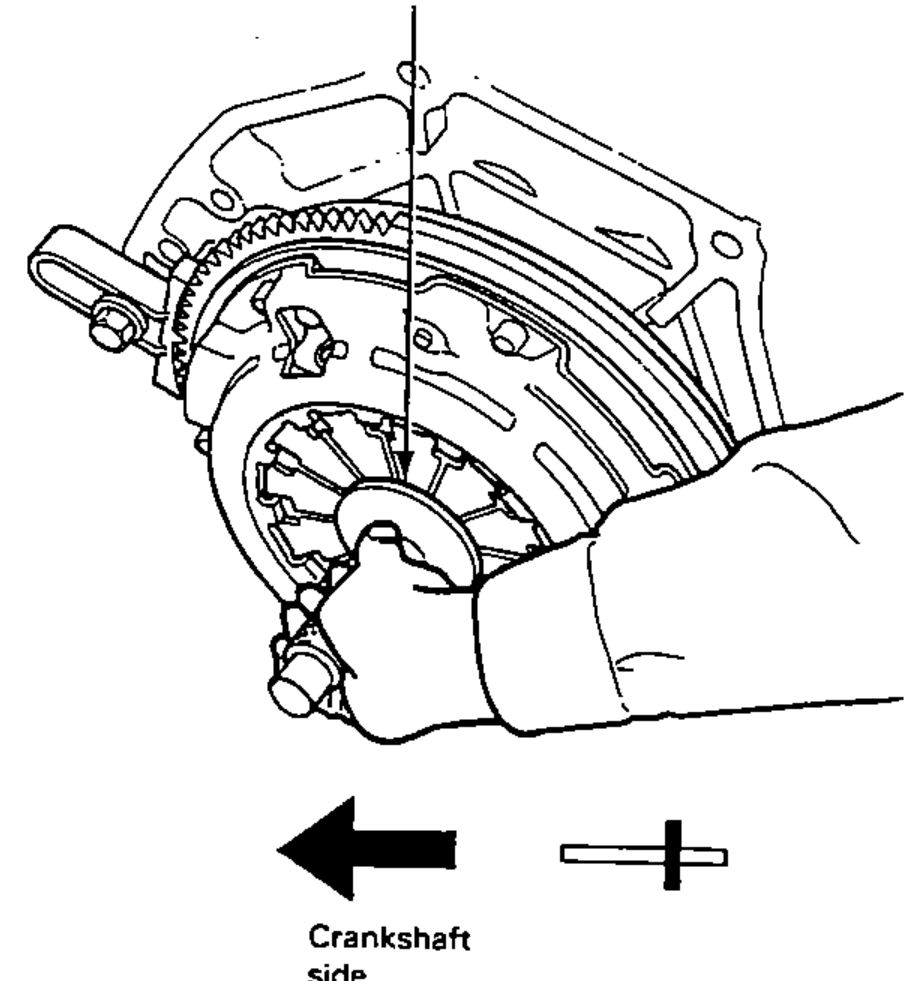

    Insert the Clutch Disc Alignment Tool in the splined hole in the clutch disc.
    Clutch Disc Alignment Tool inserted into the splined hole of the clutch disc on the flywheel; an arrow labelled 'Crankshaft side' shows the insertion direction.
  2. 6

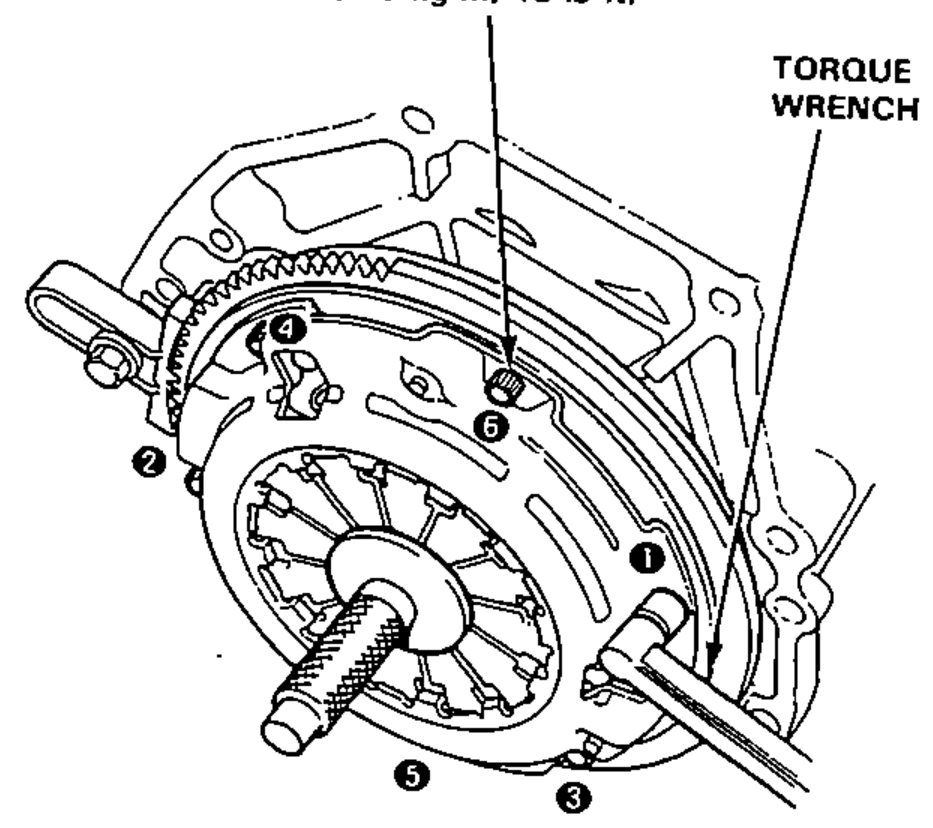

    Torque the bolts in a crisscross pattern as shown. Tighten them two turns at a time to prevent warping the diaphragm spring.
    8 x 1.25 mm bolt torque: 26 N·m (2.6 kg-m, 19 lb-ft)
    Torque wrench tightening the six pressure-plate bolts in a crisscross pattern; the bolts are numbered 1 through 6. Torque callout for the 8 x 1.25 mm bolts.
  3. 7
    Remove the Alignment Tool and Ring Gear Holder.
Pressure-plate bolt (8 x 1.25 mm)
26N·m
