Flywheel / Flywheel Bearing
7-8prose procedureInspection/Removal
- 1Inspect the ring gear teeth for wear or damage.
- 2Inspect the clutch disc mating surface on the flywheel for wear, cracks or burning.

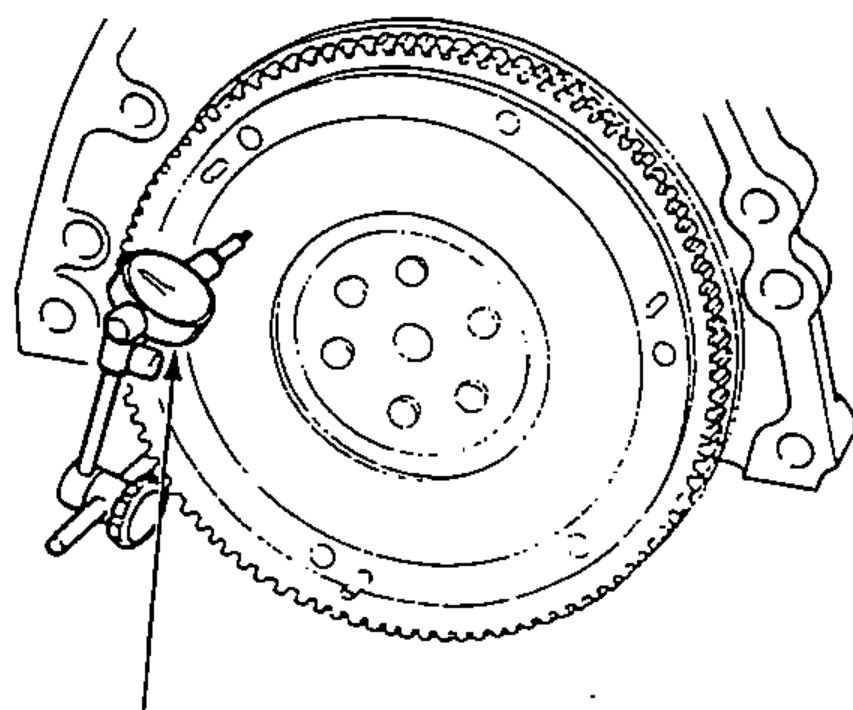

- 3Measure the flywheel runout using a dial indicator through at least two full turns. Push against the flywheel each time you turn it to take up the crankshaft thrust washer clearance.The runout can be measured with engine installed.

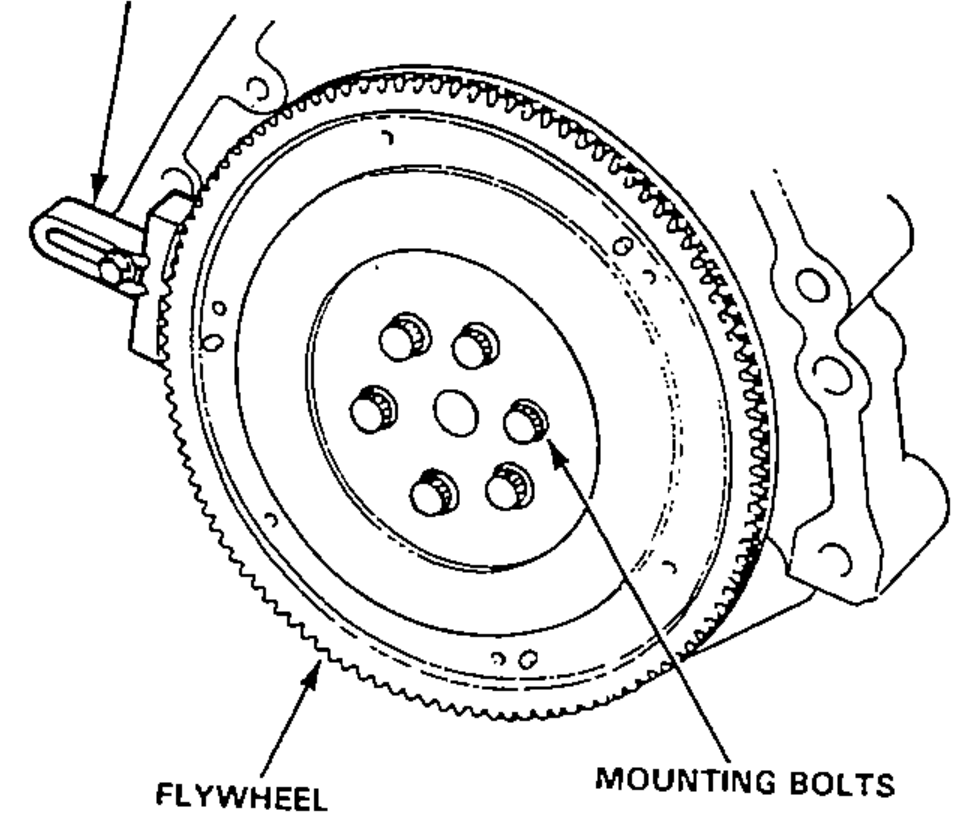

- 4Remove the six flywheel mounting bolts and flywheel.
| Specification | Value |
|---|---|
| Flywheel runout — Standard (New) | 0.05 mm (0.002 in.) max. |
| Flywheel runout — Service Limit | 0.15 mm (0.006 in.) |
Flywheel runout — Standard (New)
0.05 mm (0.002 in.) max.
Flywheel runout — Service Limit
0.15 mm (0.006 in.)
Flywheel Bearing
Inspection/Replacement

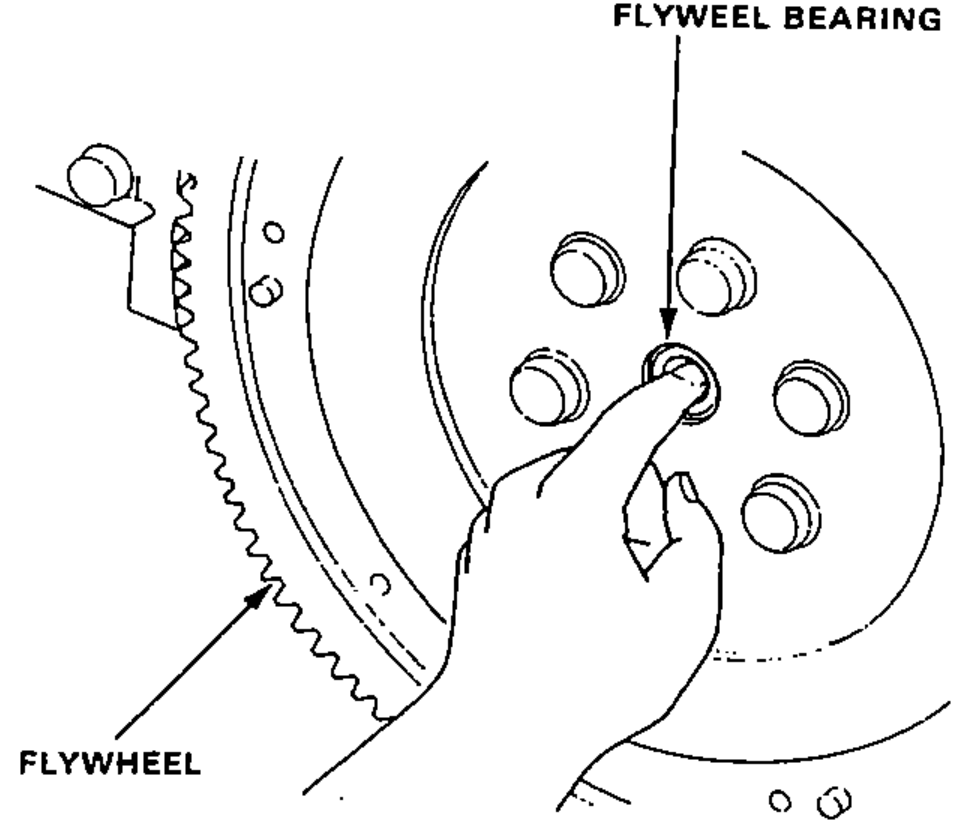

- 1Turn the inner race of the bearing with your finger. The bearing should turn smoothly and quietly. Also check that the bearing outer race fits tightly in the flywheel. Replace the bearing if the race does not turn smoothly, quietly, or fit tightly in the flywheel.
