CYL Sensor Overhaul

6-57prose procedure

Disassembly:

  1. 1

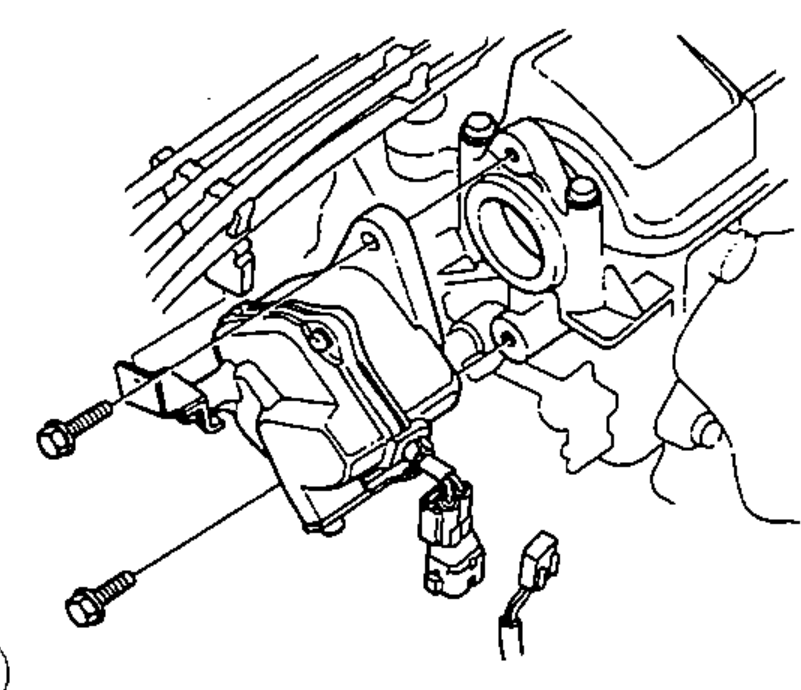

    Remove the CYL sensor from the engine.
    CYL sensor mounted on the engine, with mounting bolts being removed.
  2. 2

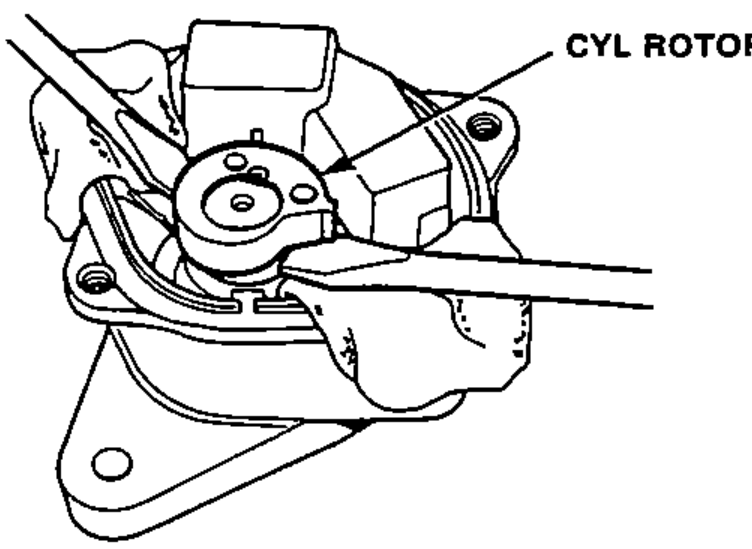

    Carefully pry up the CYL rotor by using two screwdrivers as shown. Do not damage the CYL rotor.
    Prying up the CYL rotor with two screwdrivers; the CYL ROTOR is identified.
  3. 3

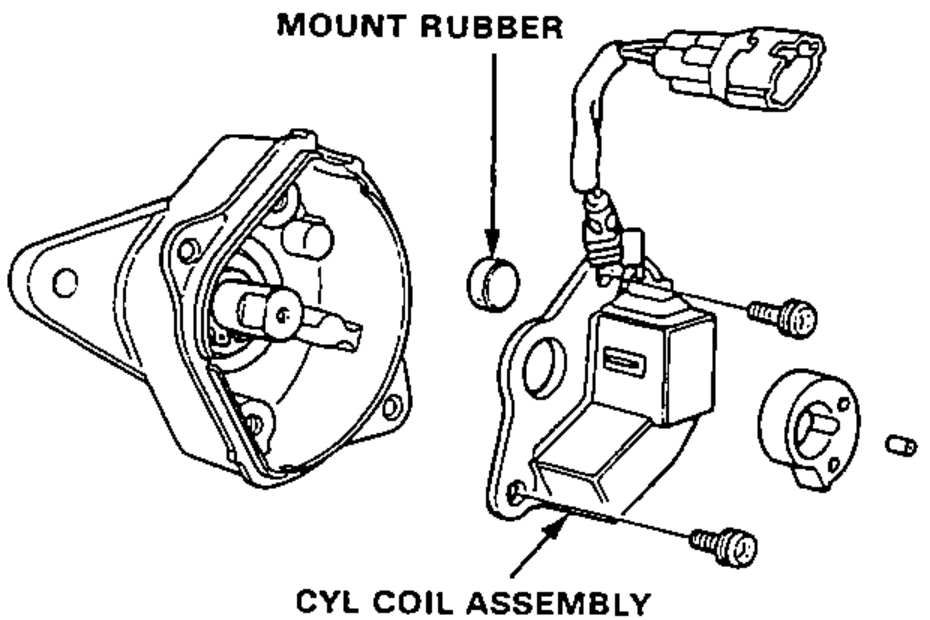

    Pull the CYL coil assembly and mount rubber out from the sensor housing by removing the screws.
    Exploded view of the CYL sensor housing showing the mount rubber and the CYL coil assembly removed.
  4. 4

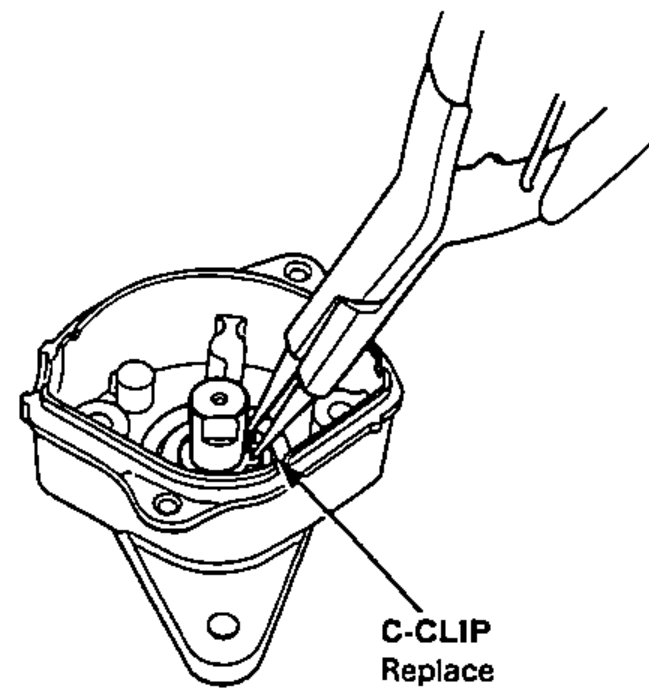

    Remove the C-clip.
    Removing the C-clip from inside the sensor with pliers.
  5. 5
    Slide off the pin retainer being careful not to stretch it.
  6. 6

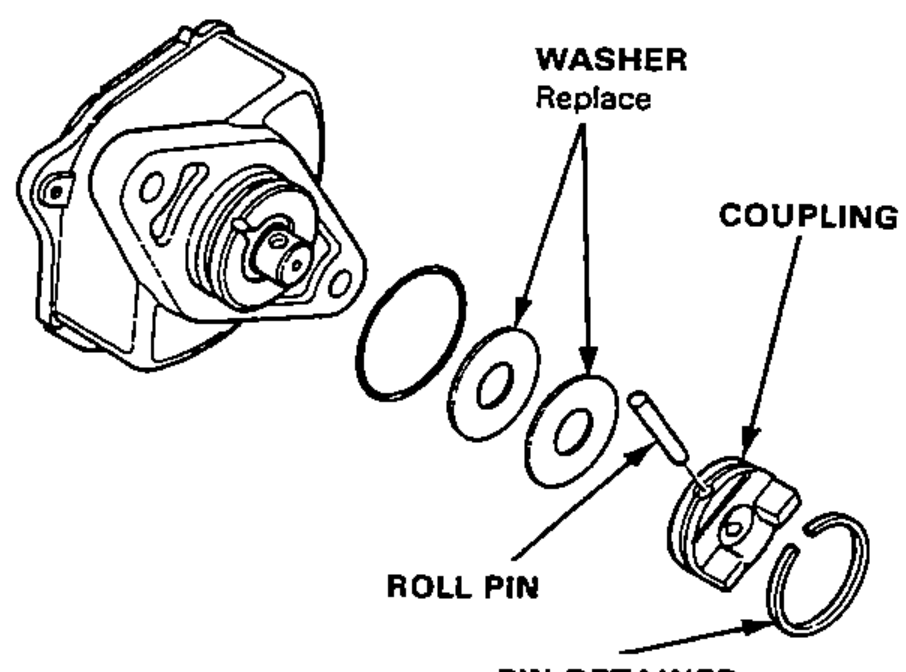

    Separate the coupling from the shaft by removing the roll pin as shown.
    Exploded view of the rotor shaft area showing the washer, coupling, roll pin and pin retainer separated from the shaft.
  7. 7

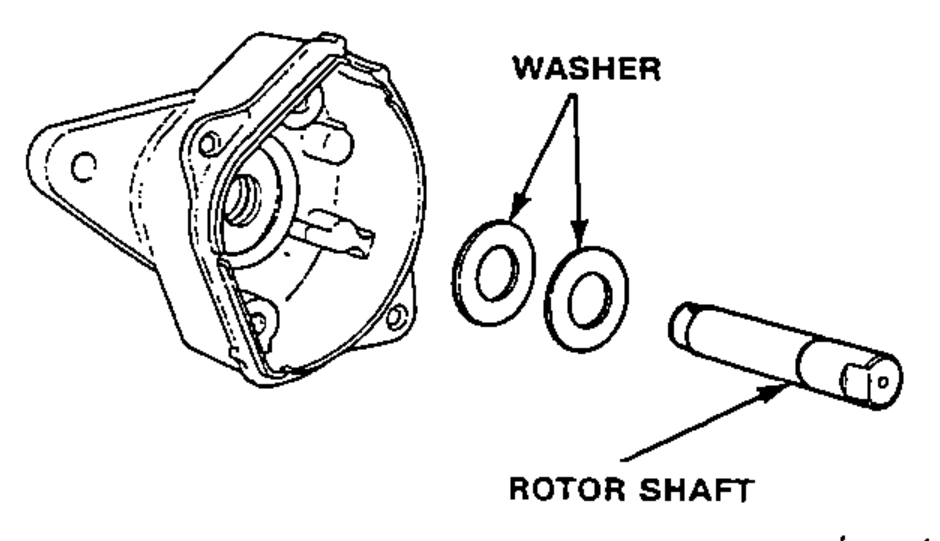

    Remove the rotor shaft.
    Removing the rotor shaft, with the washers and rotor shaft identified.
