PGM-FI Control System — CYL Sensor Overhaul (cont'd)

6-58prose procedure
Continued from 6-57

CYL Sensor Overhaul (cont'd)

Reassembly:

  1. 1

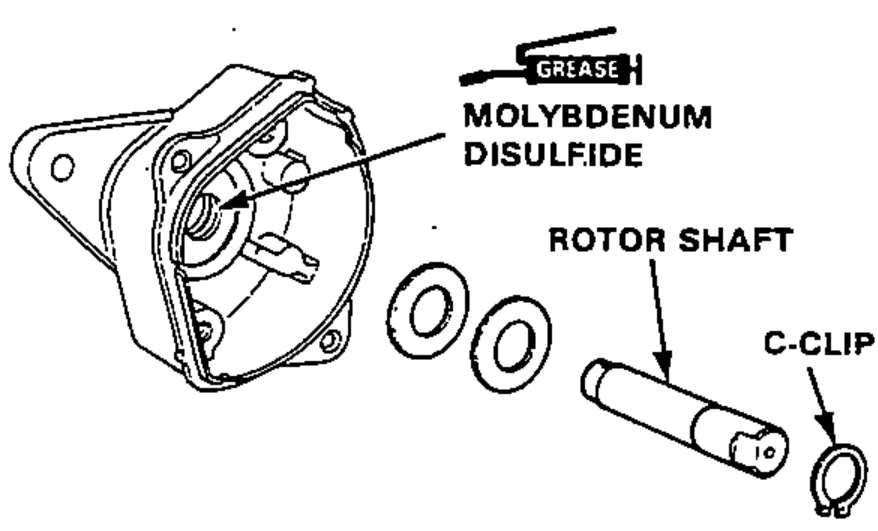

    Apply molybdenum disulfide grease to the sensor housing, install the washers on the rotor shaft, then install it in the sensor housing. Install a new C-clip.
    Rotor shaft assembly into the sensor housing, showing where molybdenum disulfide grease is applied, the washers, rotor shaft and new C-clip.
  2. 2

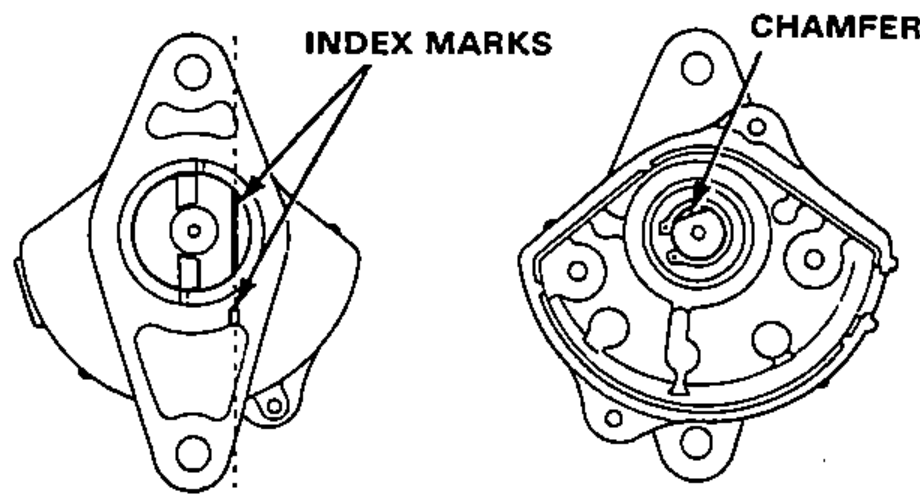

    Install the coupling with its index mark facing in the direction shown, install the pin, and install the pin retainer.
    Two views of the coupling installation showing the index marks alignment and the chamfer orientation.
  3. 3

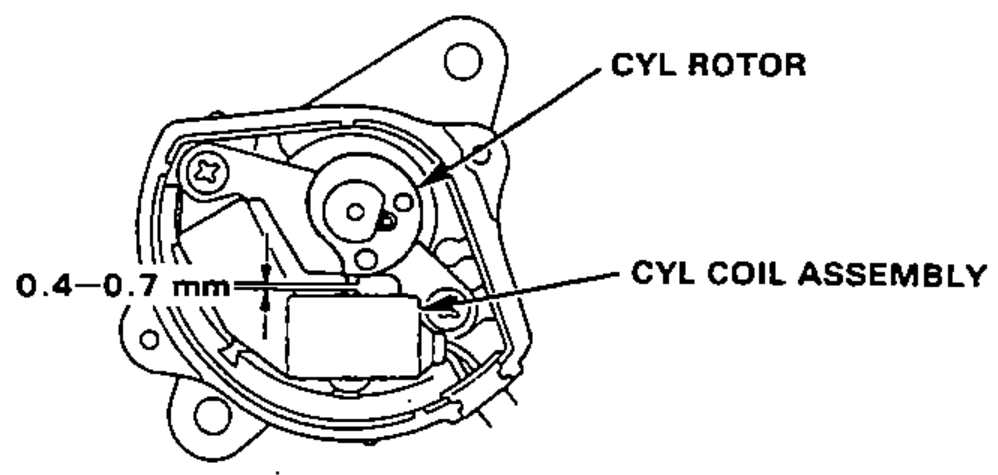

    Install the mount rubber, then install the CYL coil assembly and the CYL rotor. Adjust the air gap to 0.4-0.7 mm.
    Install the rotor with the part number facing up.
    Install the roll pin so that it faces as shown below.
    CYL coil assembly and CYL rotor installed in the housing, with the 0.4-0.7 mm air gap callout.

Installation:

  1. 1
    Install a new O-ring on the sensor housing.
  2. 2

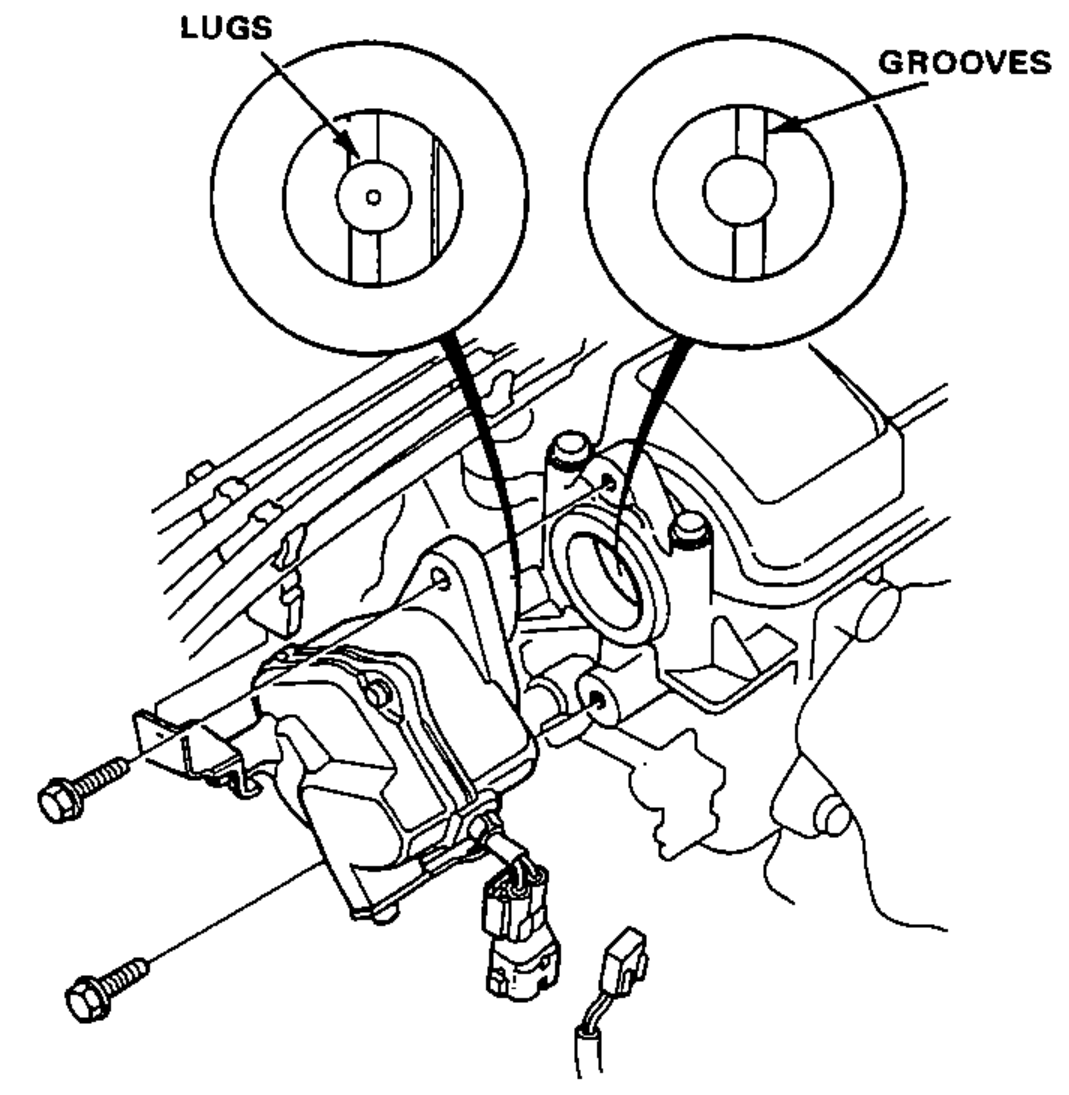

    Slip the sensor into the position.
    The lugs on the end of the sensor and its mating grooves in the camshaft end are both offset to eliminate the possibility of installing the sensor 180° out of time.
    Engine-end view showing the sensor lugs and the mating camshaft-end grooves, both offset, plus the sensor being installed onto the engine.
