Wheel Alignment - Turning Angle Inspection/Adjustment

12-6prose procedure

Turning Angle Inspection/Adjustment

  1. 1
    Jack up the front of the car, set the turning radius gauges beneath the front wheels, then lower the car.

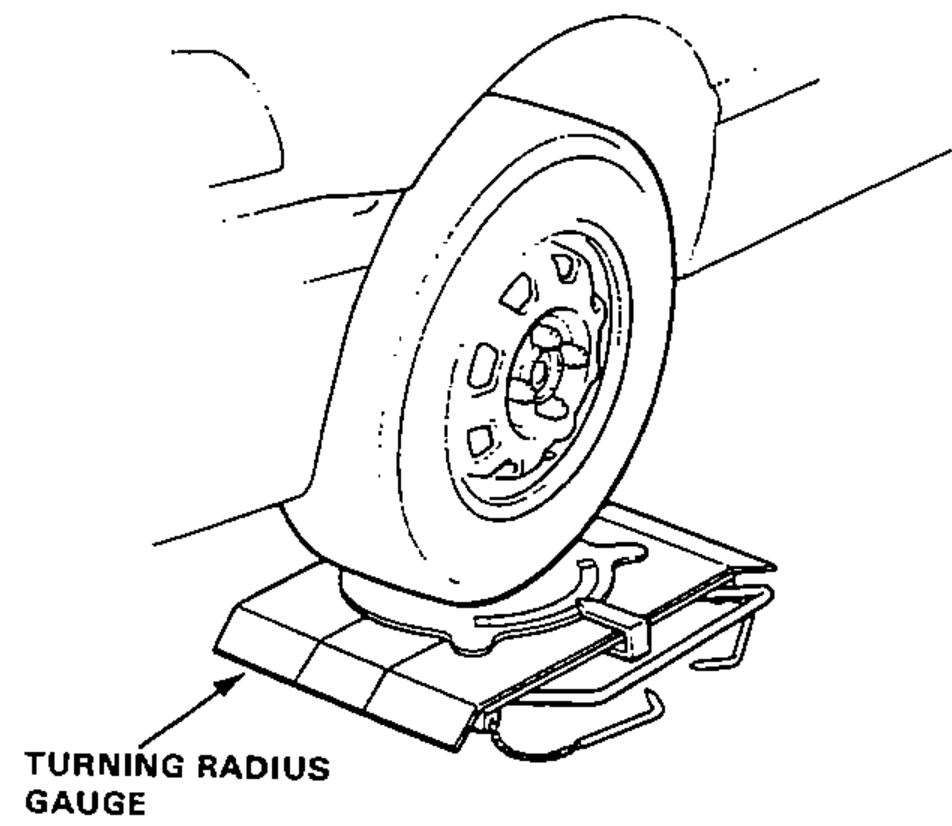

    Front wheel resting on a turning radius gauge (turntable) placed beneath the tire, used to measure the turning angle. Shows the wheel/tire and the gauge plate underneath.
  2. 2
    Turn the wheel right and left while applying the brake, and measure the turning angle of both wheels.
  3. 3
    If the measurements are not within the specifications, adjust as required by turning the tie-rods.
    After adjustments, recheck the front wheel toe and readjust if necessary. Reposition the tie rod boot if twisted or displaced after adjustment has been made.

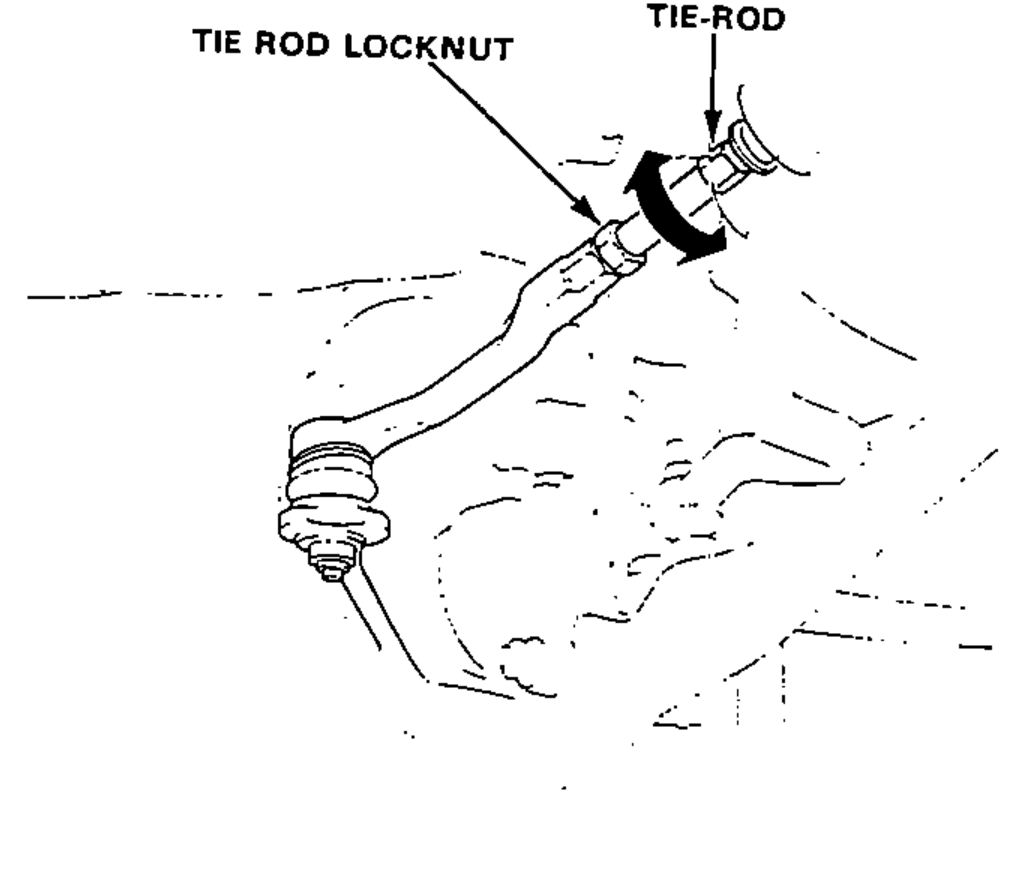

    Tie-rod adjustment detail showing the tie-rod, its locknut, and a rotation arrow indicating turning the tie-rod to adjust, with the ball joint and lower arm below.
Turning angle - Inward wheel
41° 30' ± 2°
Turning angle - Outward wheel
33° 30' ± 2°
