Honda CRX silhouetteCRX

Blower - Replacement

15-16prose procedure

Step 3-b (A/C bands and evaporator) applies to models with air conditioning.

Replacement

  1. 1
    Disconnect the battery negative terminal.
  2. 2

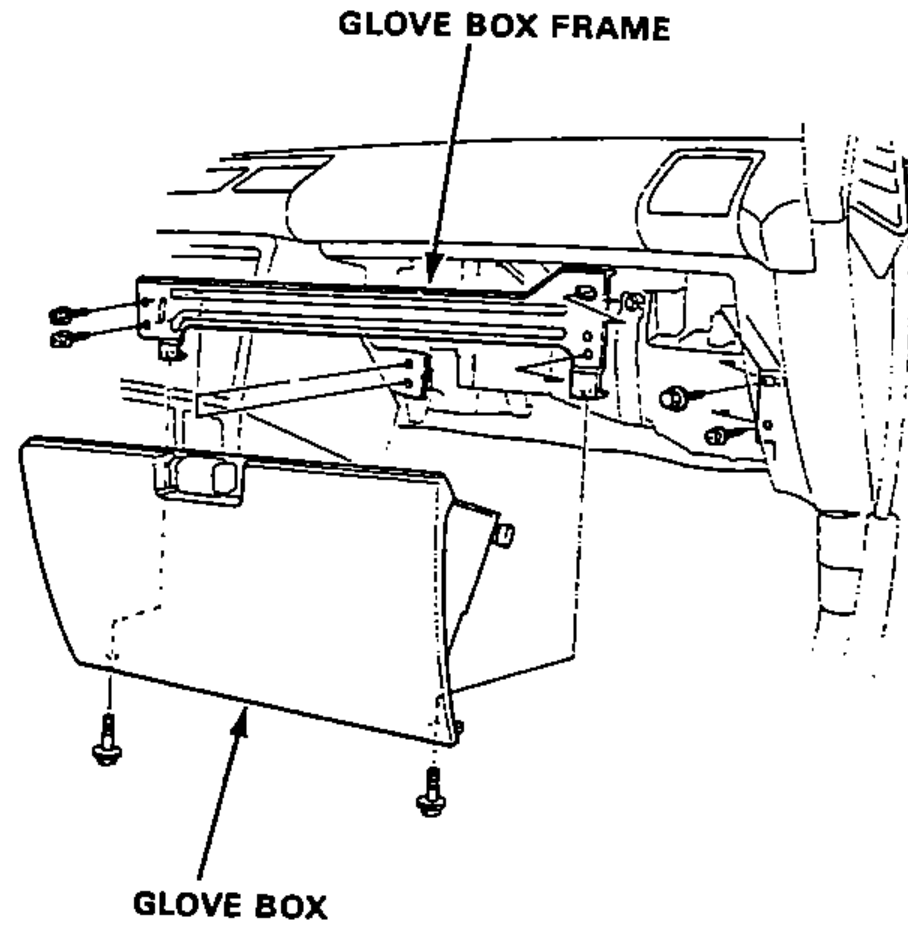

    Remove the glove box and glove box frame.
    Instrument-panel view showing the glove box frame at the dashboard and the glove box removed below it, with mounting screws.
  3. 3-a

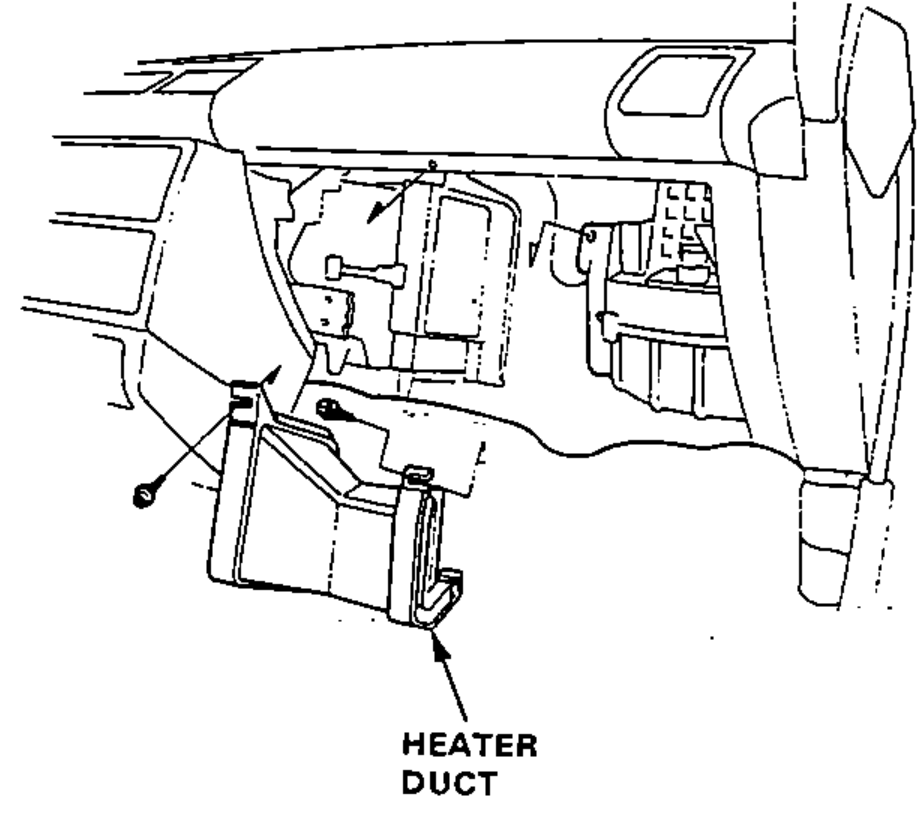

    Remove the tapping screws (2) and remove the heater duct.
    Under-dash view with the heater duct removed after taking out the tapping screws.
  4. 3-b

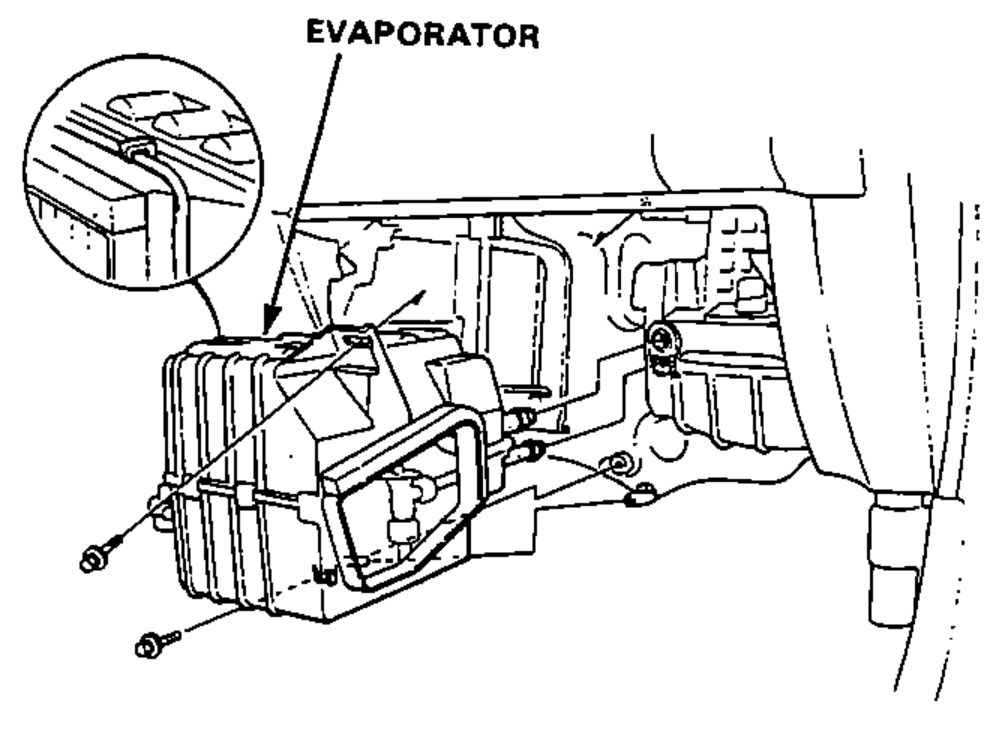

    Remove the A/C bands and the evaporator.
    Passenger-side under-dash view showing the A/C evaporator and its mounting/bands.
  5. 4
    Remove the mounting bolts (3).
  6. 5

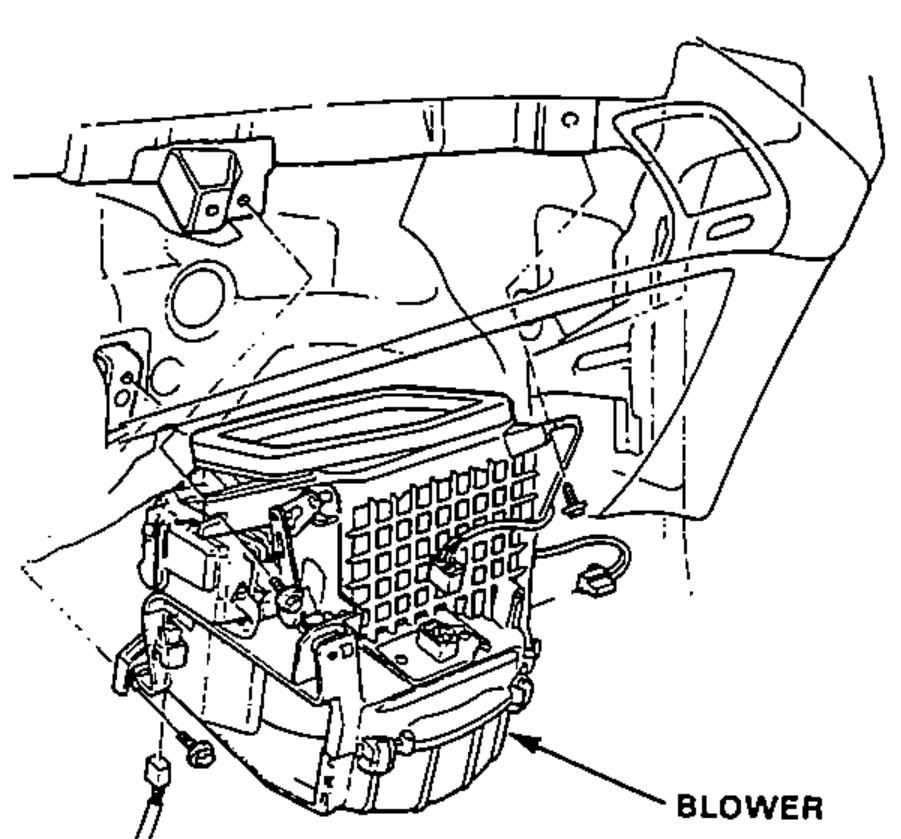

    Disconnect the connectors from the blower motor, resistor and recirculation control motor, then remove the blower.
    Under-dash view of the blower assembly with its mounting bolts and connectors, being removed.
  7. 6
    Install the blower in the reverse order of removal and make sure there is no air leakage.
