Heater Control - Replacement

15-20prose procedure

Page shows steps 1, 2, 4, 5, 6; step 3 is not printed on this page (likely a numbering skip in the original).

Replacement

  1. 1
    Remove the center console.

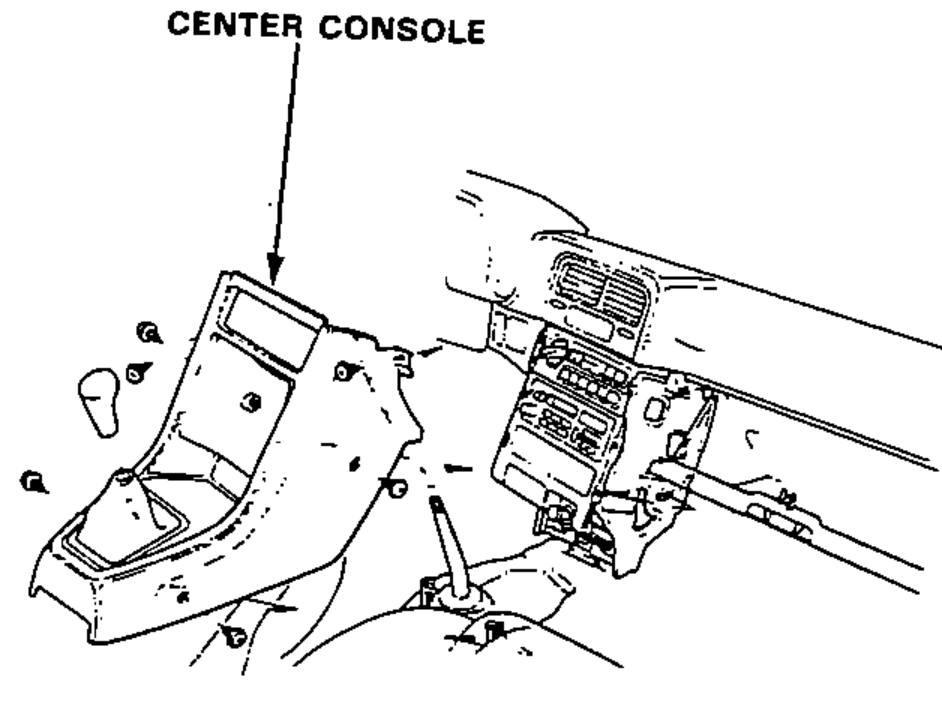

    Interior view showing the center console removed from the floor/dashboard area.
  2. 2
    Remove the radio/cassette player.

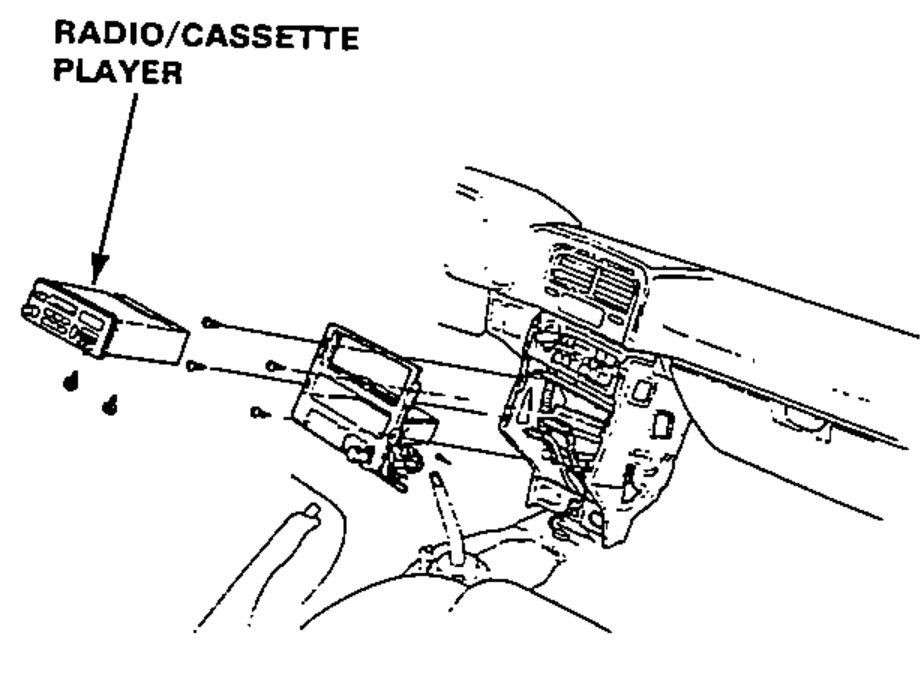

    Dashboard center view showing the radio/cassette player being removed.
  3. 4
    Disconnect the air mix cable at the heater assembly.
  4. 5
    Remove the tapping screws (4) and setting plate, then disconnect the wire harness conectors and cables. Remove the heater control.

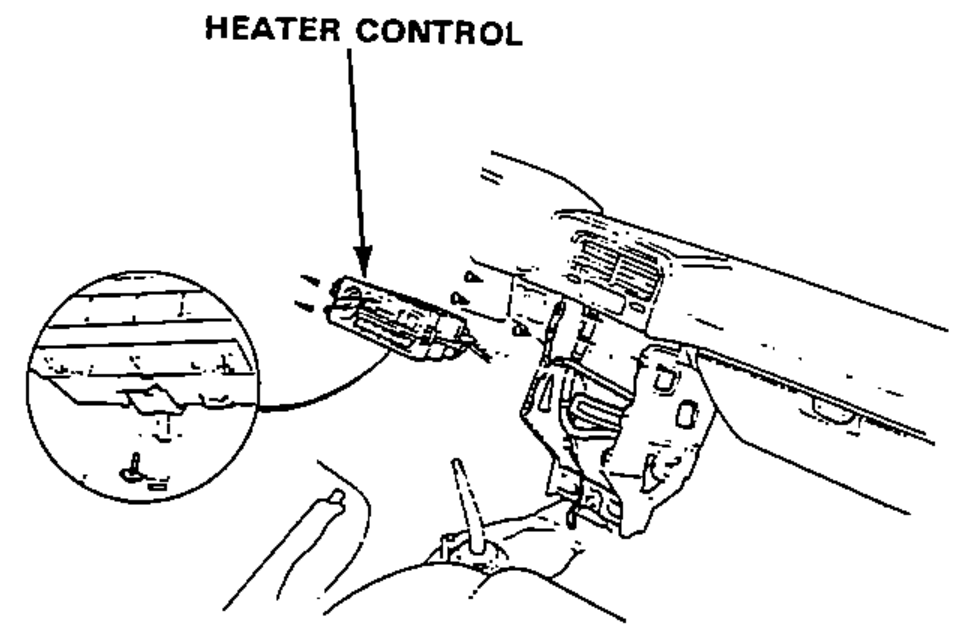

    Dashboard center view showing the heater control unit and its setting plate, with an enlarged inset of a tapping-screw location.
  5. 6
    Install in the reverse order of removal and connect and make sure that it is properly adjusted (page 15-22).
