Condenser Replacement (cont'd)

15-43prose procedure
Continued from 15-42
  1. 5
    Remove the front grille with three screws and radiator upper mounts with two bolts each.

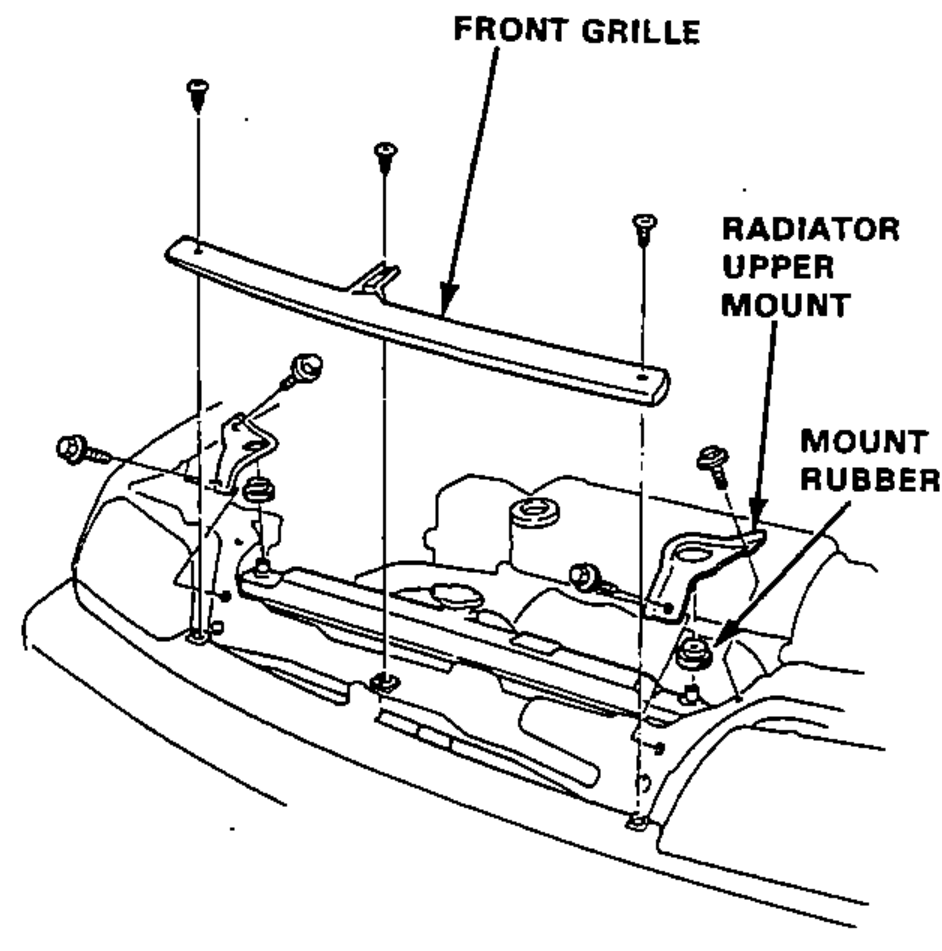

    Front grille and radiator upper mount removal: front grille lifted off, showing the radiator upper mount and mount rubber with their fasteners.
  2. 6
    Remove the front bulkhead with six bolts, then remove the hood opener cable.

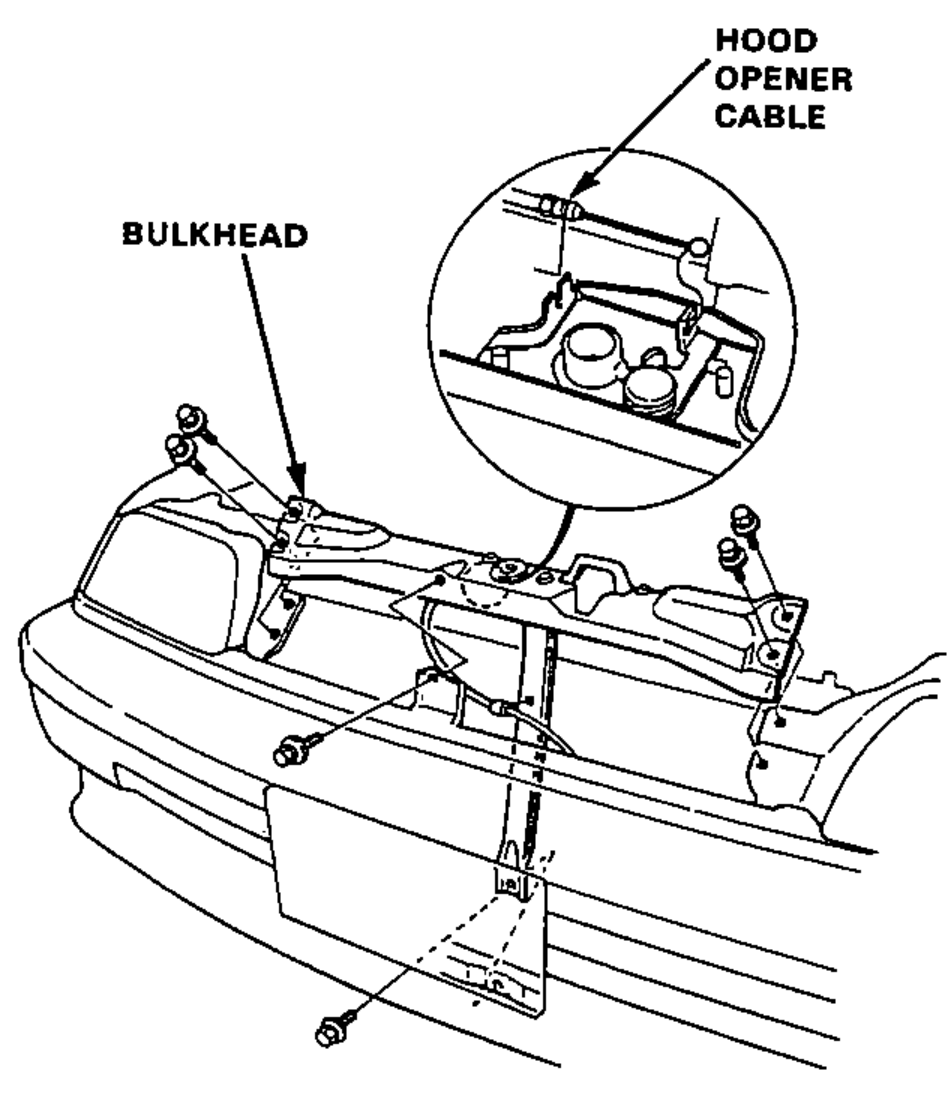

    Front bulkhead removal with a magnified inset of the hood opener cable routing.
  3. 7
    Disconnect the condenser pipe and discharge pipe from the condenser.
    CAUTION: Cap the open fittings immediately to keep moisture and dirt out of system.

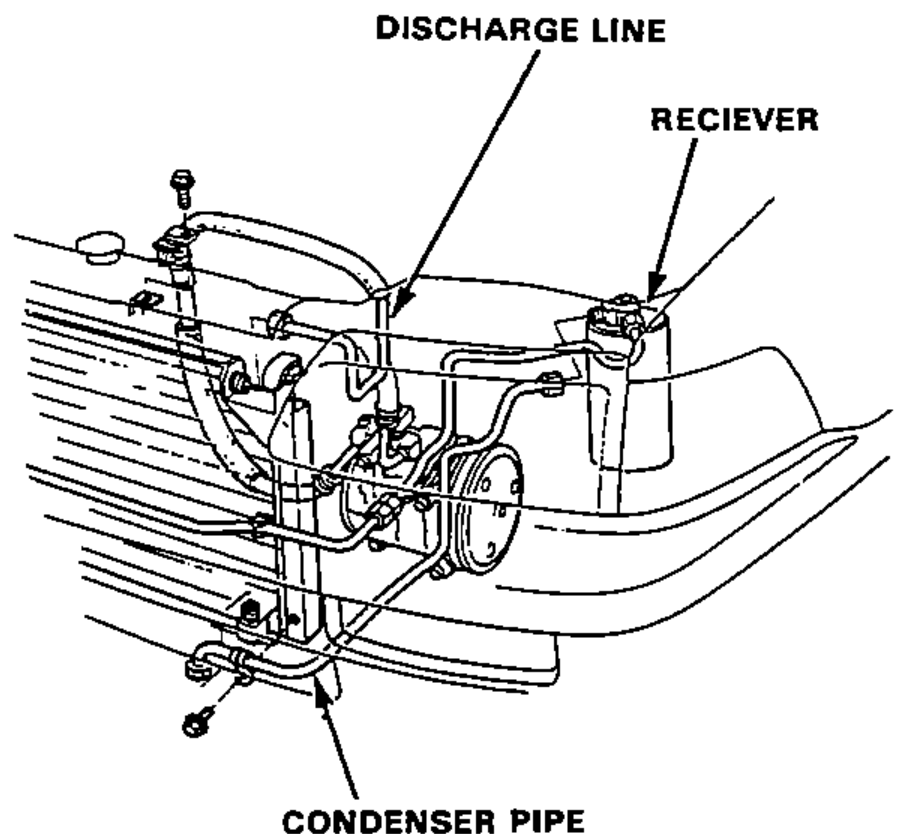

    Condenser upper area showing the discharge line and receiver at top and the condenser pipe below, to be disconnected from the condenser.
  4. 8
    Remove the mounting bolts (2) and condenser.

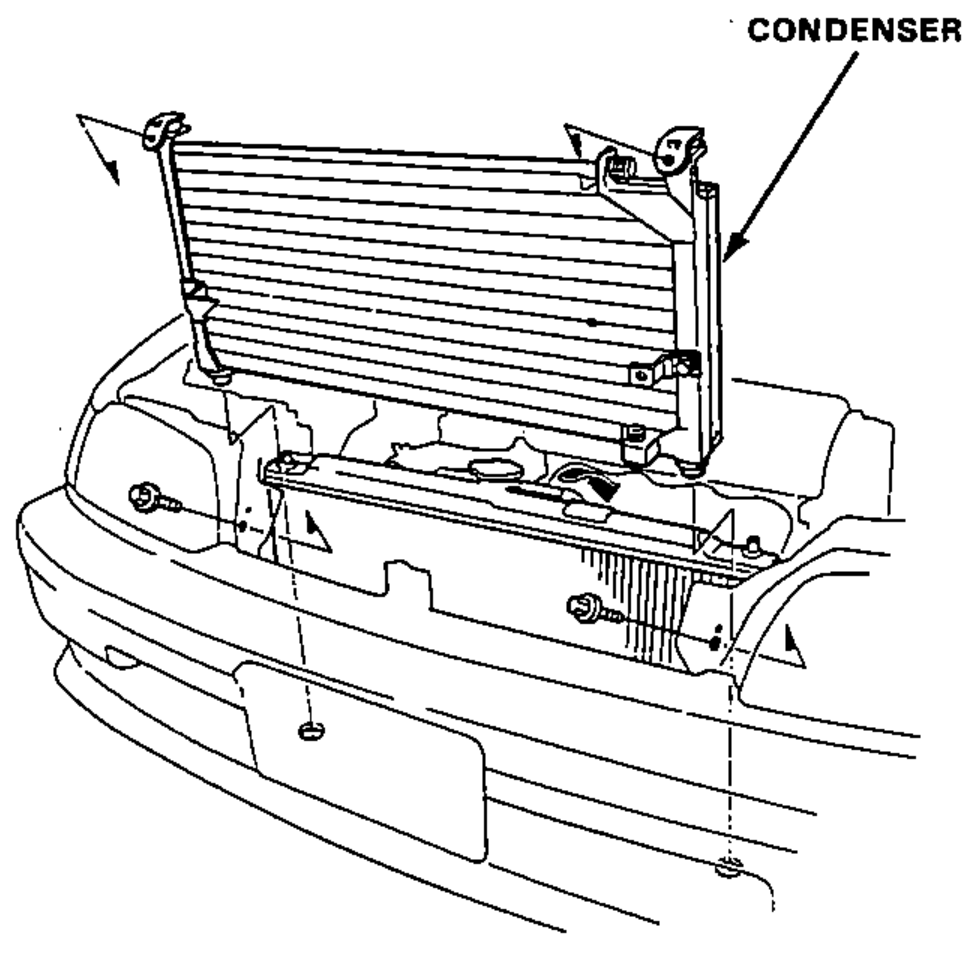

    Condenser being removed from the front of the vehicle after the two mounting bolts are taken out.
  5. 9
    Install in the reverse order of removal, charge the system (page 15-56) and test performance (page 15-59).
