Test - A/C Switch

15-61prose procedure

Section 15 (Heater/Air Conditioning). A/C switch continuity test.

A/C Switch

  1. 1
    Check for continuity between the terminals according to the table.

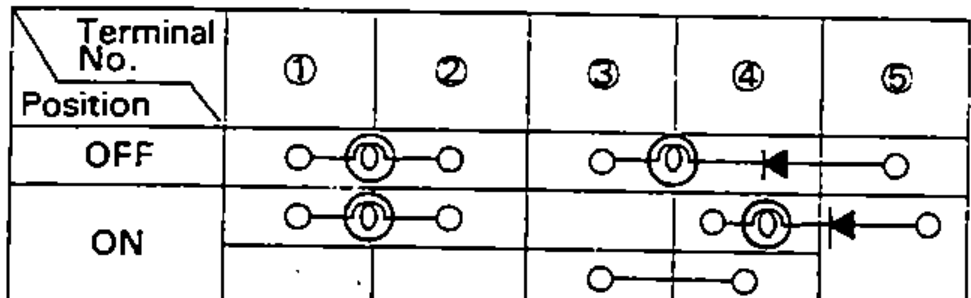

    A/C switch continuity chart: a matrix of terminals 1 through 5 across two switch positions (OFF, ON), with continuity indicated by connecting lines, bulb symbols and a diode symbol between terminals.
OFF
Continuity between terminals (No. 1-5)Terminals 1-2 connected (through indicator bulb); terminals 3-4-5 connected through a diode (4 to 5 direction)
ON
Continuity between terminals (No. 1-5)Terminals 1-2 connected; terminals 4-5 connected through a diode (4 to 5 direction); terminals 3-4 connected
