Evaporator — Replacement

15-44prose procedure
  1. 1
    Disconnect the battery negative terminal.
  2. 2
    Discharge the refrigerant (page 15-42).
  3. 3
    Disconnect the receiver line and suction hose from the evaporator.
    CAUTION: Cap the open fittings immediately to keep moisture out of the system.

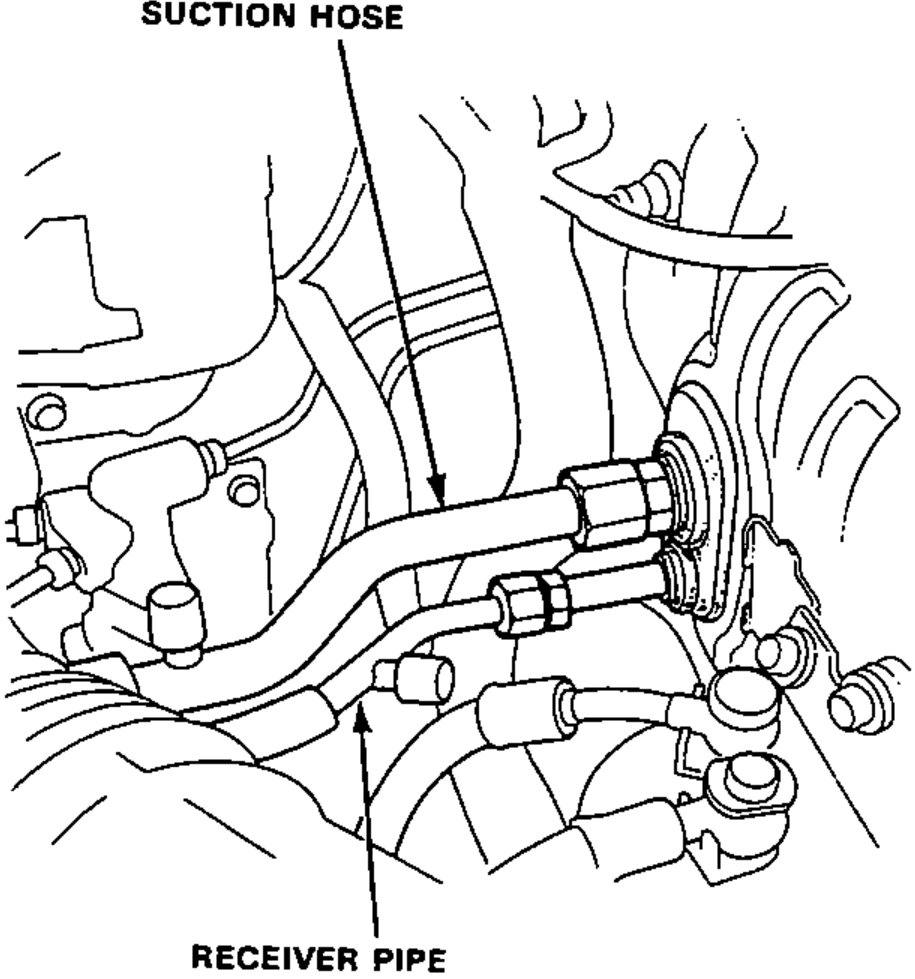

    Engine-side evaporator connections showing the suction hose and receiver pipe to be disconnected from the evaporator.
  4. 4
    Remove the glove box (section 14).
  5. 5
    Disconnect the connector from the thermostat switch and pull off the wire harness from the clamps.

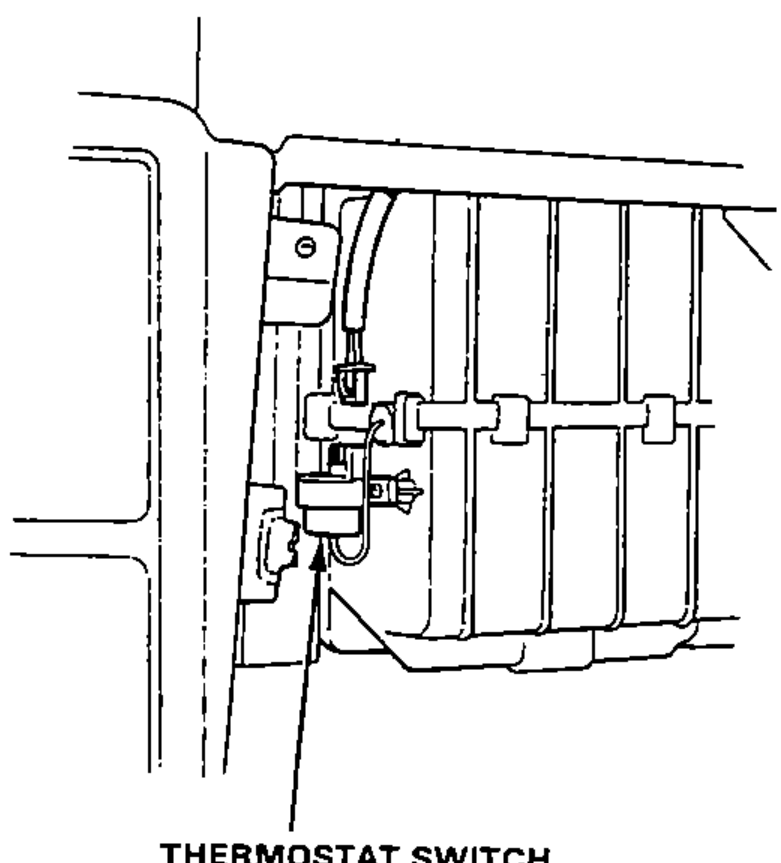

    Interior view showing the thermostat switch and its connector on the evaporator/heater unit, wire harness routed along clamps.
  6. 6
    Remove the tapping screws (2) and A/C bands.

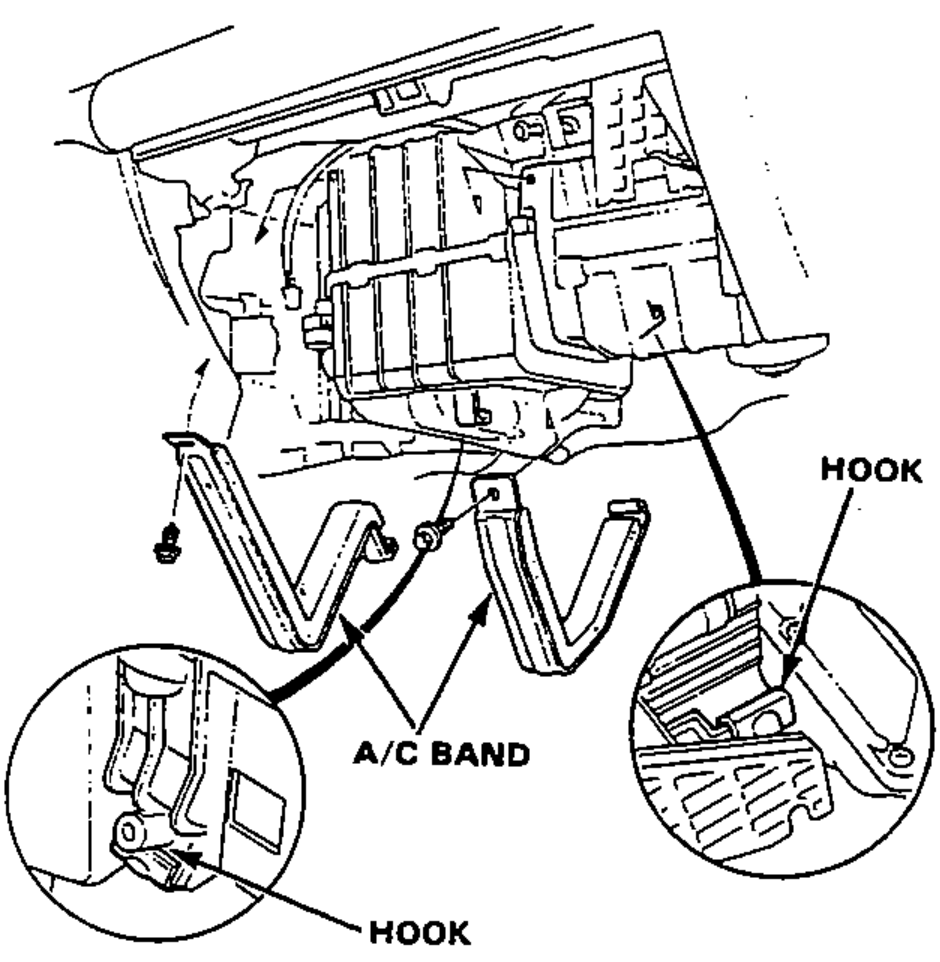

    Under-dash view of the A/C bands (straps) secured by tapping screws and hooks that retain the evaporator, with two magnified insets of the A/C band hooks.
  7. 7
    Remove the mounting bolts (2) and evaporator.

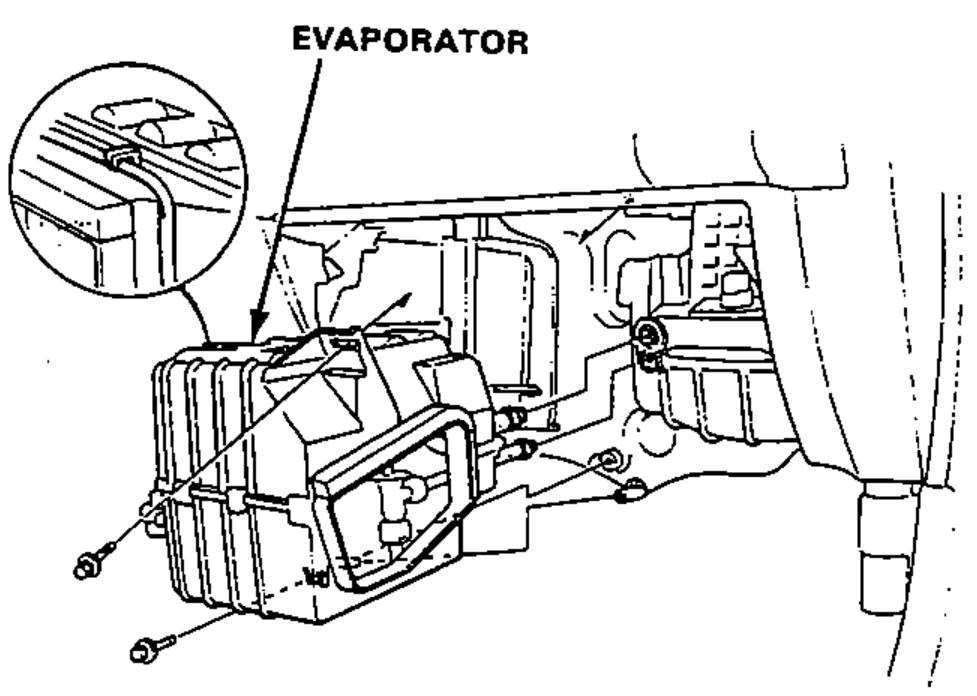

    Evaporator unit removal from under the dashboard after the two mounting bolts are removed.
  8. 8
    Install in the reverse order of removal, and:
