Master Cylinder - Reassembly

13-14prose procedure

Reassembly

  1. 1
    Lubricate new piston assemblies with brake fluid, then fit them together.

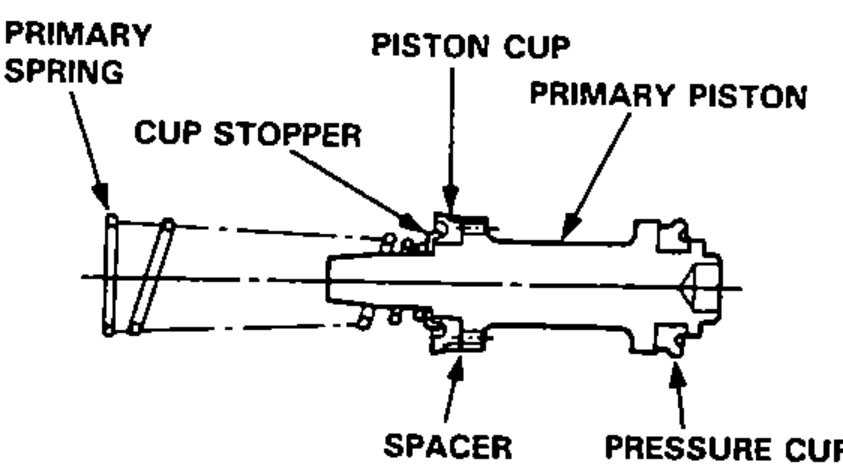

    Cross-section of the assembled primary piston assembly showing, in order, primary spring, cup stopper, piston cup, primary piston, spacer and pressure cup.
  2. 2
    Install the piston assemblies in the master cylinder.
    To ease assembly, rotate the pistons while inserting.
  3. 3
    Install the stop bolt and new sealing washer while pushing in the secondary piston assembly, then tighten the stop bolt.

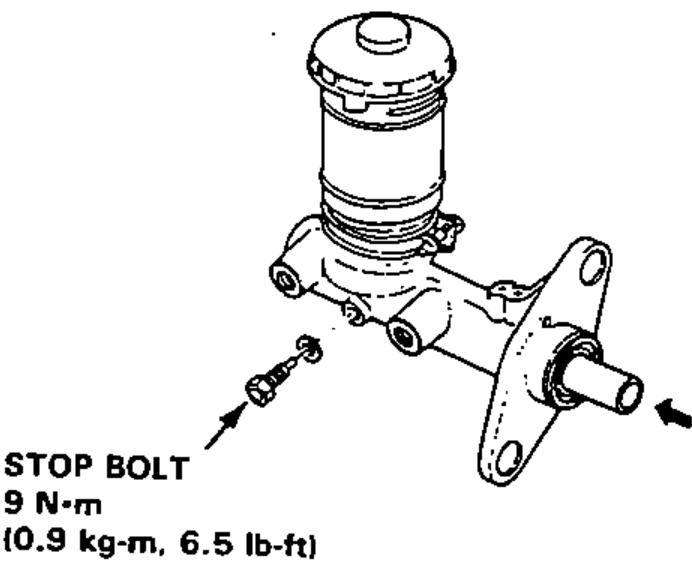

    Master cylinder with the stop bolt and new sealing washer being installed from the bottom while pushing in the secondary piston assembly.
  4. 4
    Install the snap ring while pushing in the secondary piston assembly.

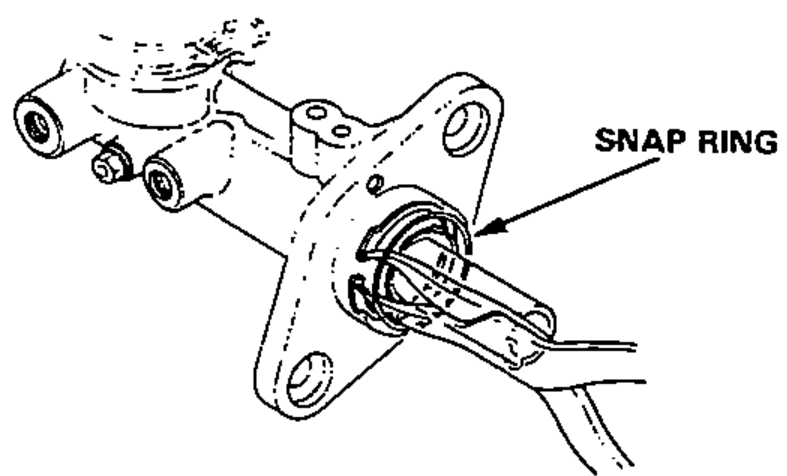

    Front view of the master cylinder with the snap ring being installed into the bore while pushing in the secondary piston assembly.
  5. 5
    Install a new rod seal.
    When connecting the brake pipes, make sure that there in no interference between the brake pipes and other parts

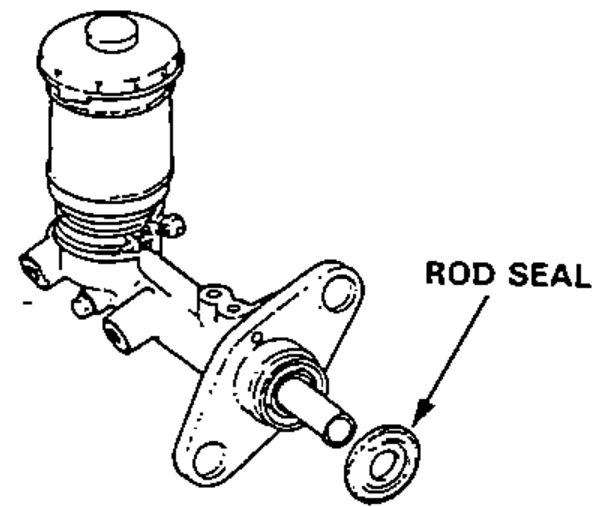

    Master cylinder with a new rod seal being installed at the end of the piston.
Stop bolt
9N·m
