Rear Caliper - Reassembly (cont'd)

13-34prose procedure

Reassembly (cont'd)

7

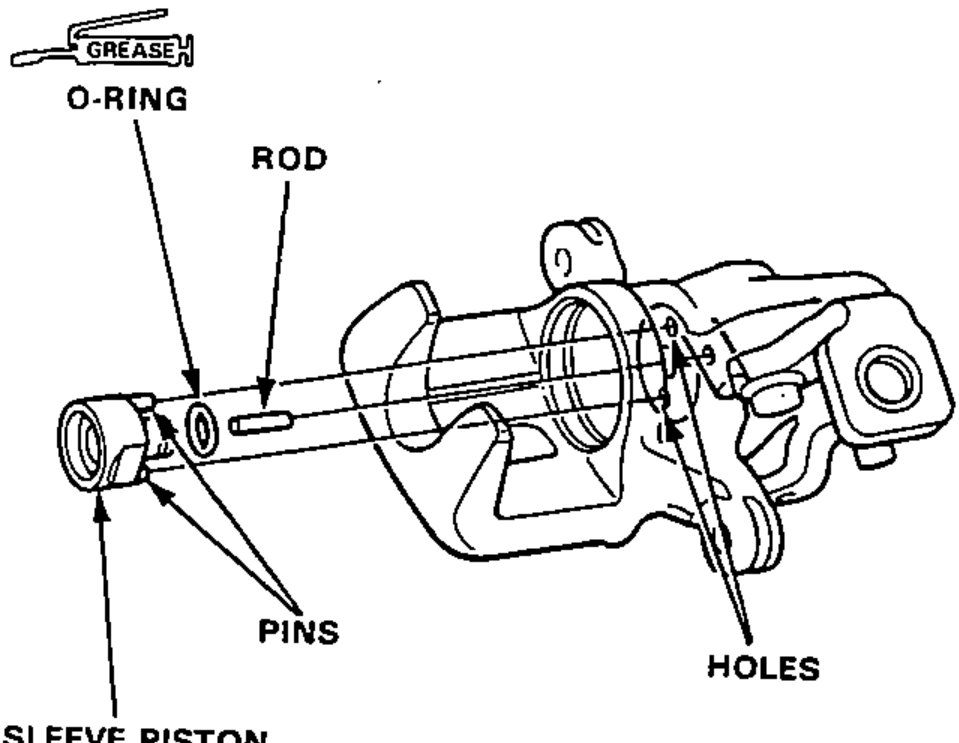

Install the rod in the cam.
8
Install a new O-ring on the sleeve piston.
9
Install the sleeve piston so the hole in the bottom of the piston is aligned with the rod in the cam, and two pins on the piston are aligned with the holes in the caliper.
10
Install a new cup with its groove facing the bearing A side on the adjusting bolt.
11

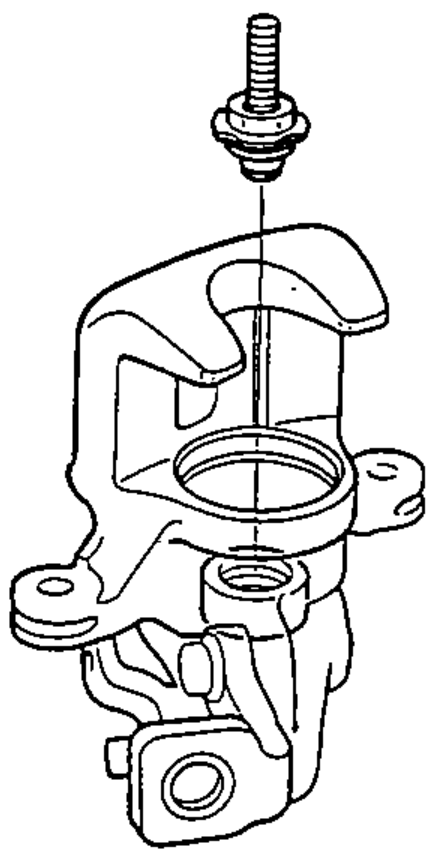

Fit the bearing A, spacer, adjusting spring B and spring cover on the adjusting bolt, and install in the caliper cylinder.
12

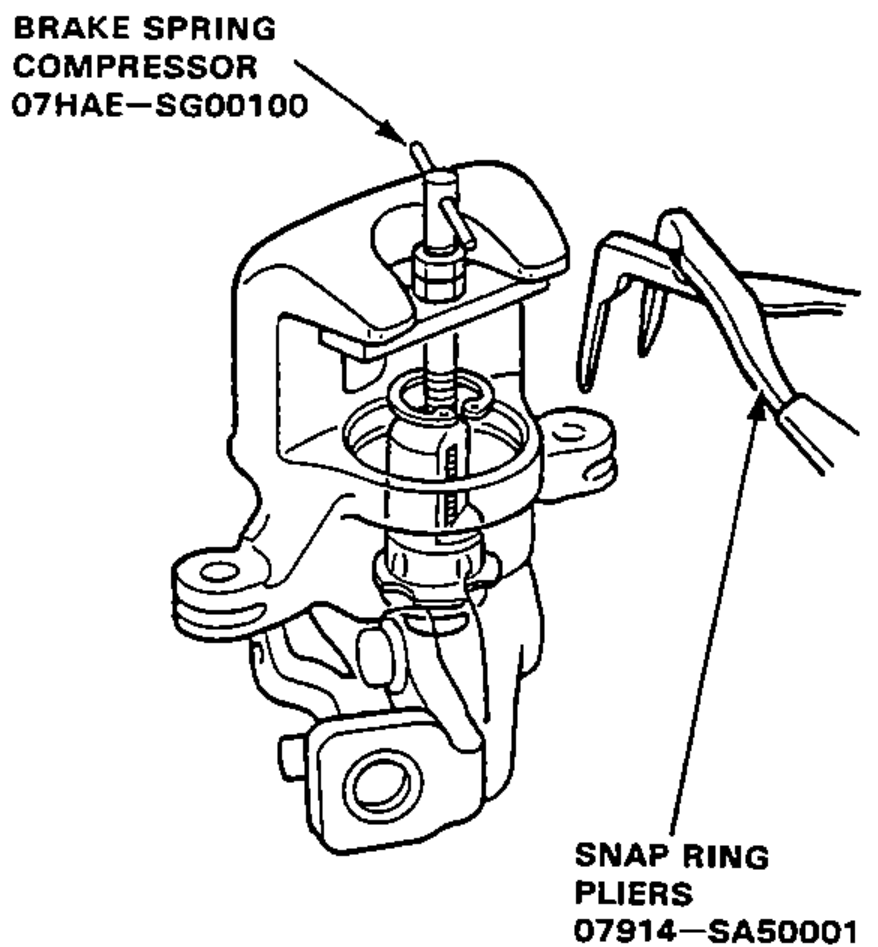

Install the brake spring compressor (special tool) as shown.
13
Compress the spring until it bottoms out.
14

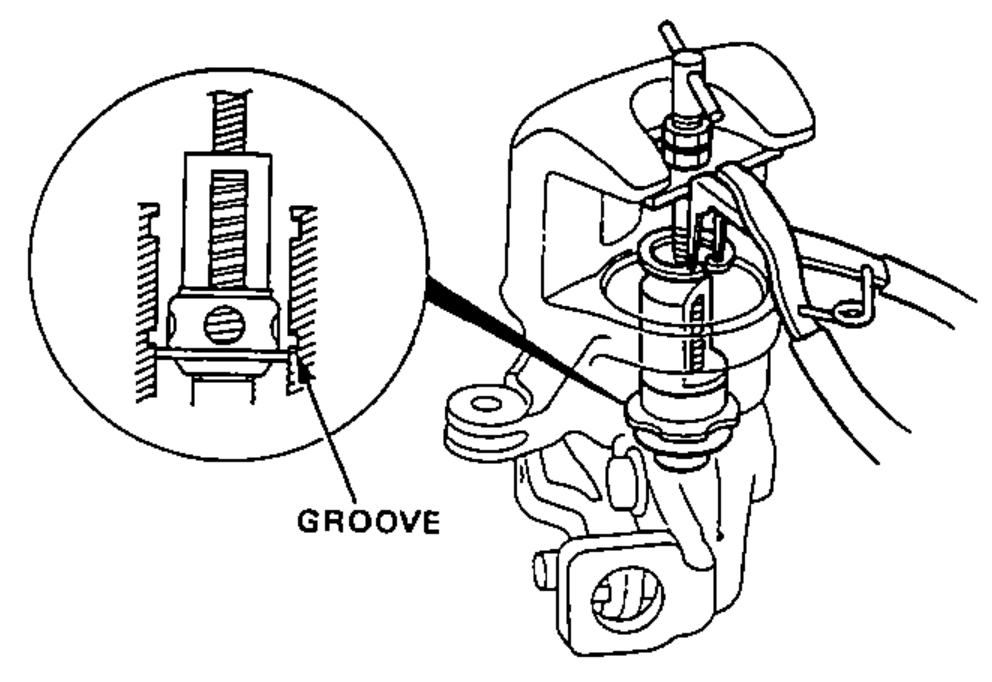

Check that the flared end of the spring cover is below the circlip groove.
15
Install the circlip then remove the brake spring compressor.
Check that the circlip is seated in the groove properly.
