Brake Booster - Reassembly (cont'd)

13-21prose procedure
Continued from 13-20
  1. 5
    Apply silicone grease to the inner and outer surface of the booster piston tube.
  2. 6
    Install the push rod assembly and secure with the snap ring.

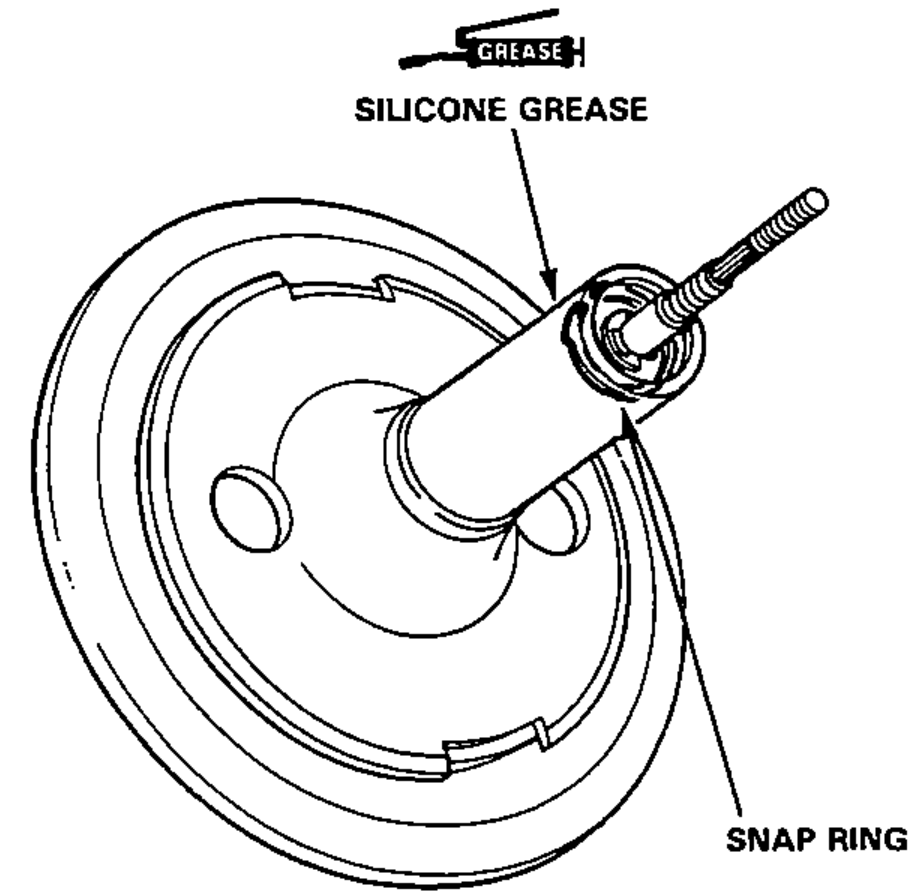

    Booster piston / front housing with the push rod assembly installed and secured with the snap ring; silicone grease applied to the booster piston tube.
  3. 7
    Install filter B (foam) on the push rod, then loosely install the adjuster and start lock nut.

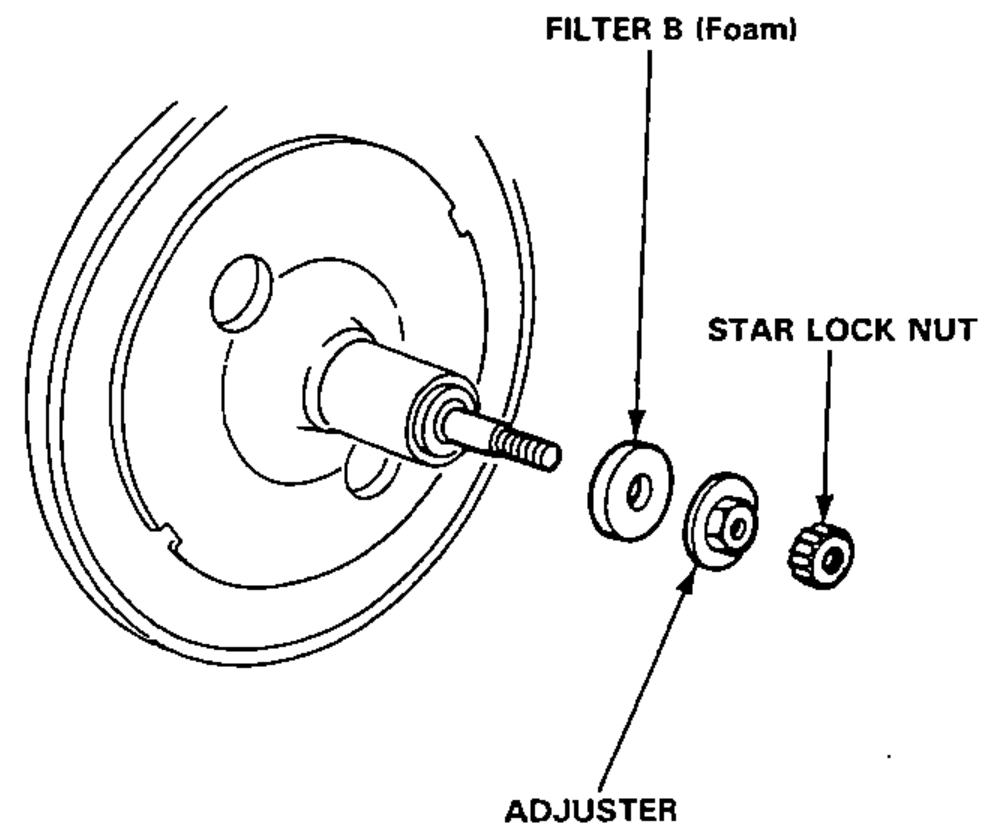

    Push rod end with filter B (foam), adjuster and star lock nut being installed loosely.
  4. 8
    Apply silicone grease to the piston seal.
  5. 9
    Position the piston seal, bushing and bushing retainer on the rear housing.
    Make sure the lip of the seal is facing in, as shown in drawing below.

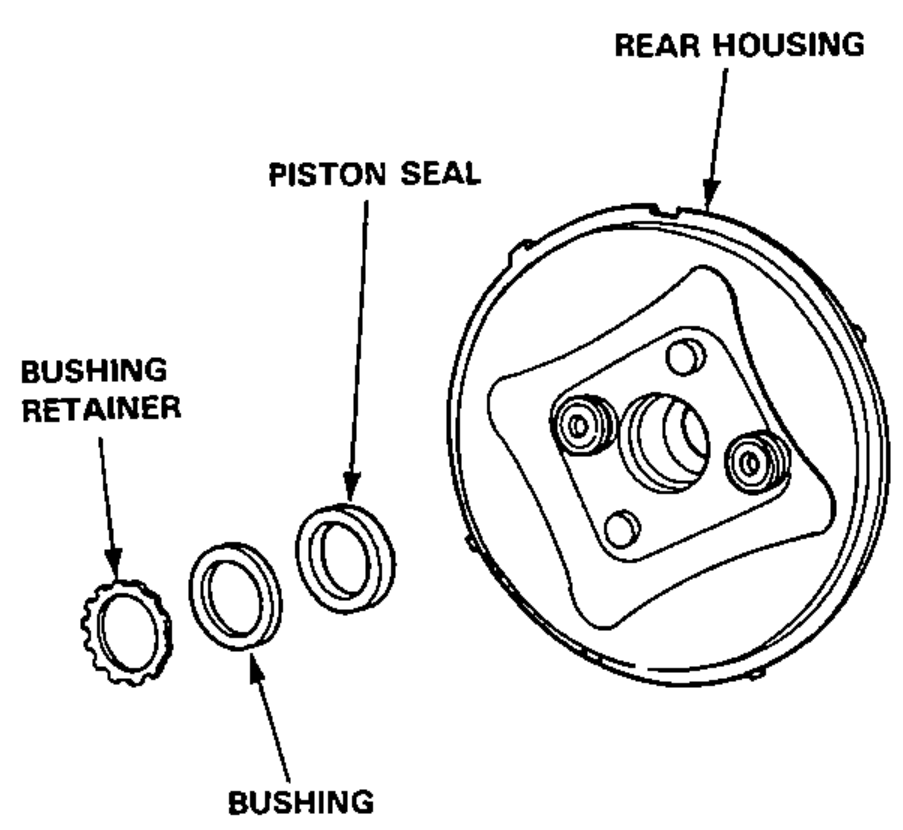

    Rear housing with the piston seal, bushing and bushing retainer positioned for installation.
  6. 10
    Drive the bushing retainer in until it is 6 mm below the edge of the rear housing.
    If you drive the retainer more than 6 mm, the piston seal may distort.

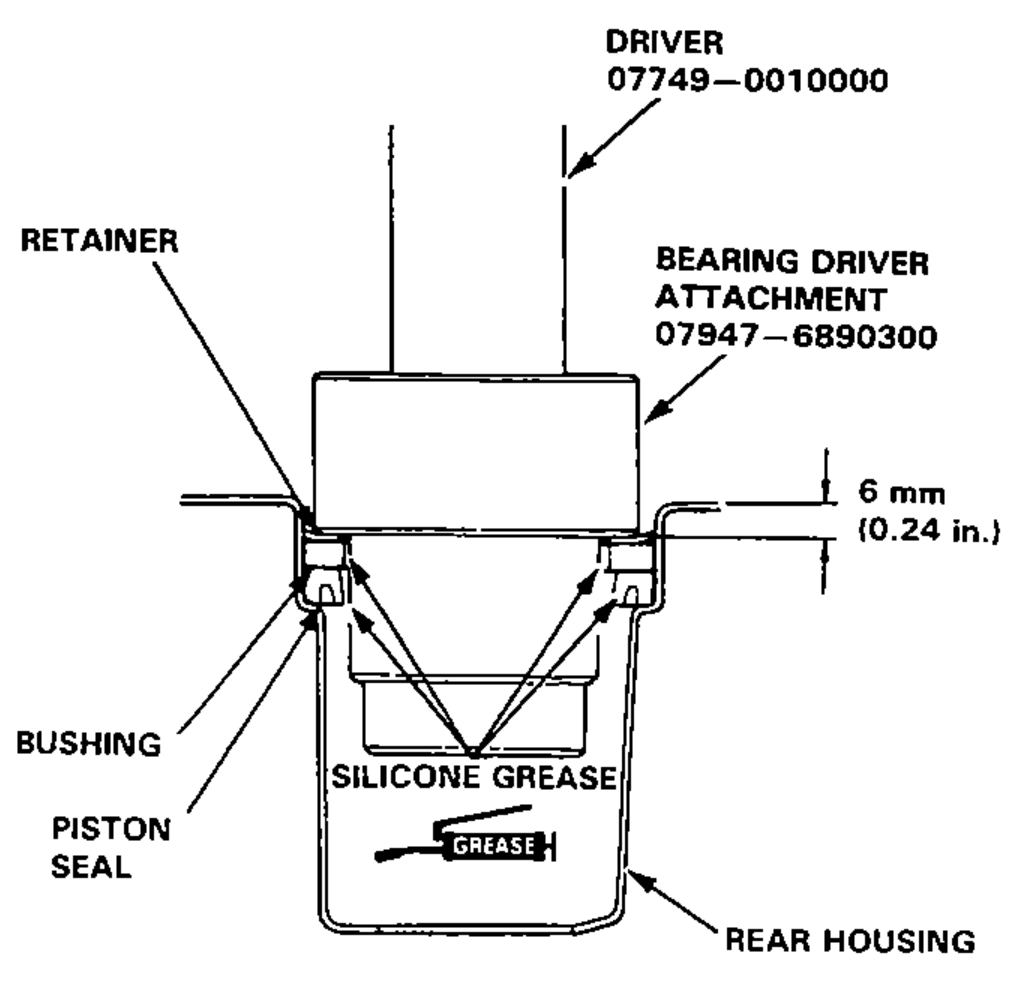

    Cross-section showing the bushing retainer being driven into the rear housing using the driver and bearing driver attachment until 6 mm (0.24 in) below the edge; retainer, bushing and piston seal identified with silicone grease applied.
