Brake Disc - Inspection
13-29prose procedure- 6Inspect the disc surface for grooves, cracks, and rust. Clean the disc thoroughly and remove all rust.

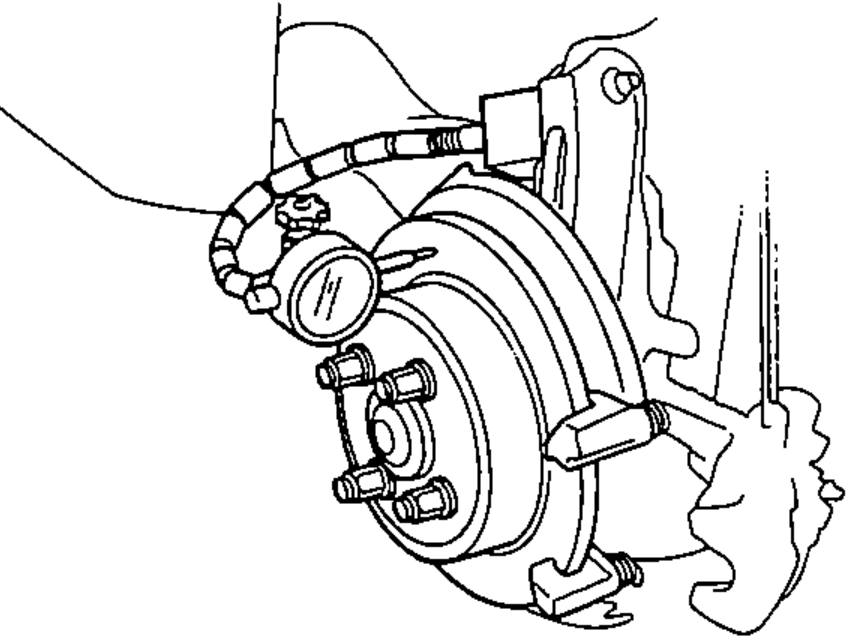

- 7Mount dial indicator as shown and measure the run-out at 10 mm (0.39 in) from the outer edge of the disc.Use wheel nuts and 3 mm thickness washers to hold the disc securely.Brake Disc Run-out: Service Limit: 0.15 mm (0.0006 in)
- 8Replace the brake disc if beyond the service limit.

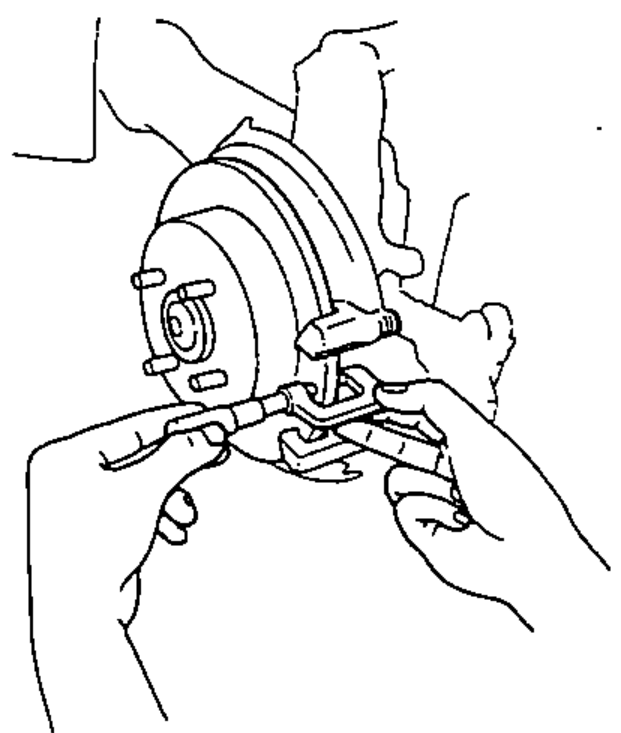

- 9Using a micrometer, measure the rear brake disc thickness at eight points, approximately 45 apart and 10 mm (0.39 in) from the outer edge of the disc.
- 10Replace the disc if it exceeds the following service limits.Brake Disc Thickness: Standard: 10.0 mm (0.39 in); Service limit: 8.0 mm (0.31 in)Brake Disc Parallelism: The difference between any thickness measurements should not be more than 0.015 mm (0.0006 in).
- 11Replace the brake disc if beyond the limits.A new disc should be ground if its run-out is greater than 0.10 mm (0.004 in).

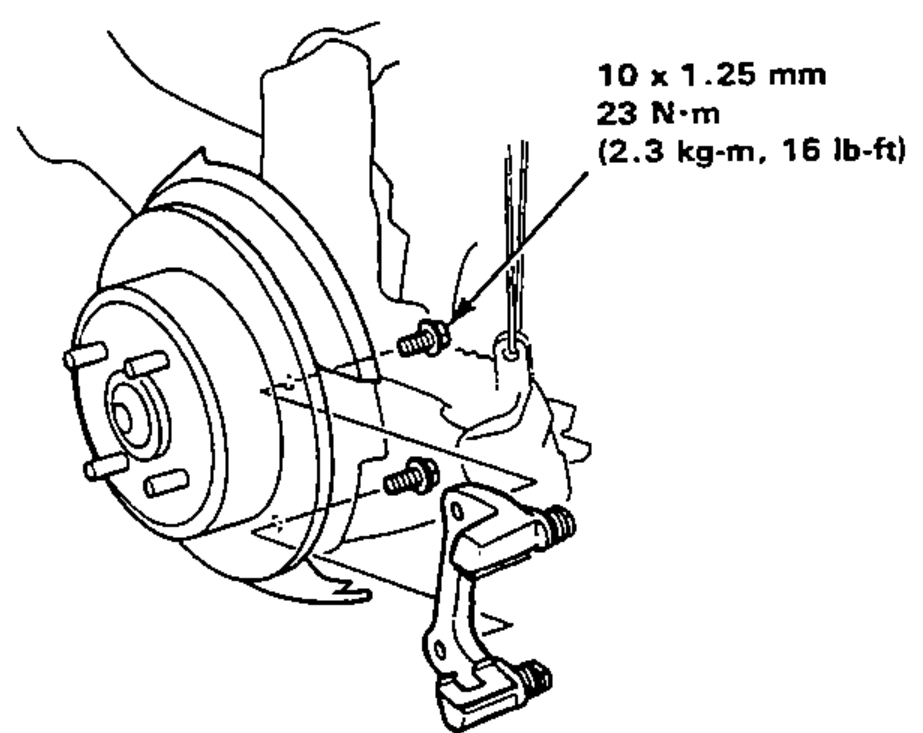

- 12Remove the two caliper bracket mounting bolts and caliper bracket.

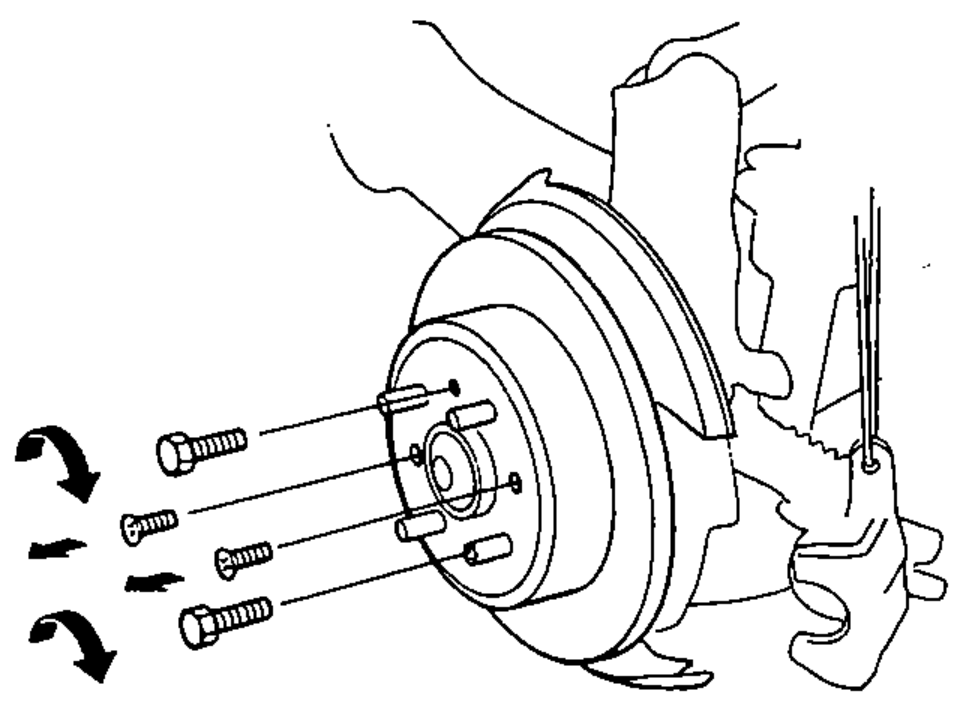

- 13Remove the two 6 mm screws and brake disc.If the brake disc is difficult to remove, install 8 mm bolts into the threaded holes and tighten them.
| Specification | Value |
|---|---|
| Brake Disc Run-out - Service Limit | 0.15 mm (0.0006 in) |
| Brake Disc Thickness - Standard | 10.0 mm (0.39 in) |
| Brake Disc Thickness - Service limit | 8.0 mm (0.31 in) |
| Brake Disc Parallelism | not more than 0.015 mm (0.0006 in) |
| Caliper bracket mounting bolt | 23N·m |
Brake Disc Run-out - Service Limit
0.15 mm (0.0006 in)
Brake Disc Thickness - Standard
10.0 mm (0.39 in)
Brake Disc Thickness - Service limit
8.0 mm (0.31 in)
Brake Disc Parallelism
not more than 0.015 mm (0.0006 in)
Caliper bracket mounting bolt
23N·m
