Brake Booster - Reassembly

13-20prose procedure

Reassembly

  1. 1

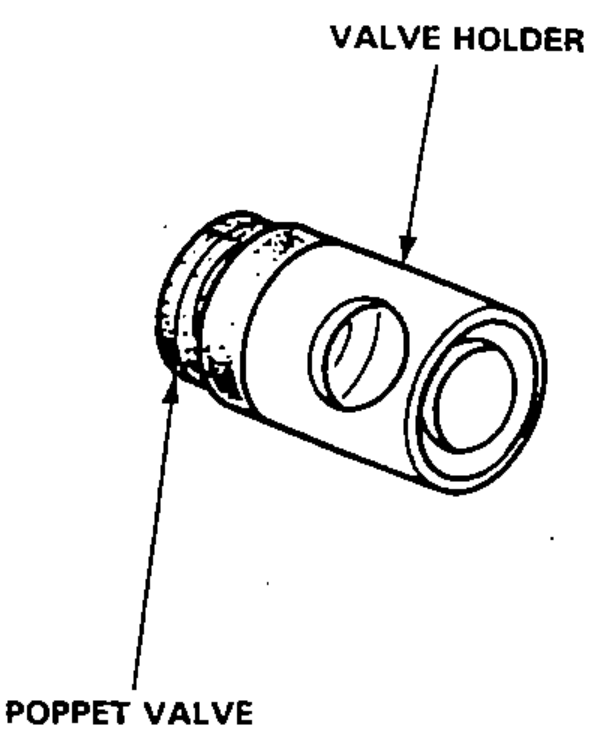

    Install the poppet valve on the valve holder.
    The poppet valve being installed onto the valve holder.
  2. 2

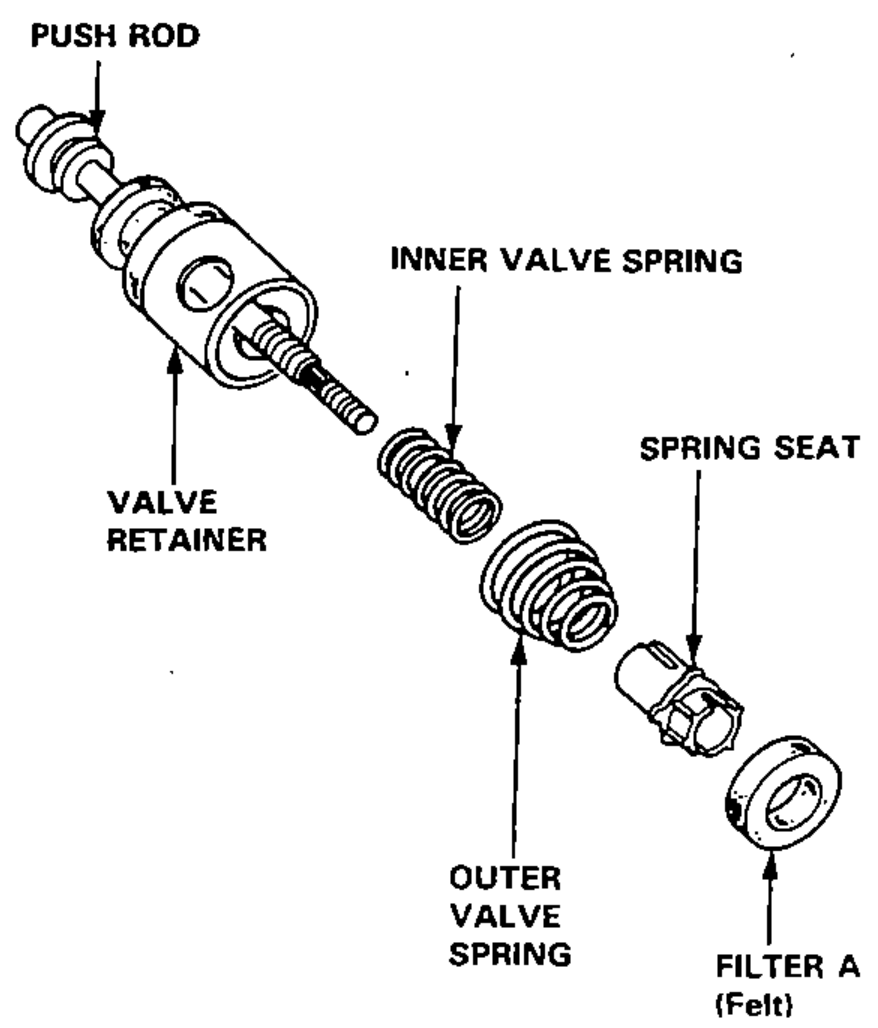

    Install the valve holder, inner valve spring, outer valve spring and spring seat on the push rod.
    Install the spring seat with its short end facing the filter side.
    Exploded arrangement on the push rod: valve retainer, valve holder, inner valve spring, outer valve spring, spring seat and filter A (felt), showing assembly order onto the push rod.
  3. 3

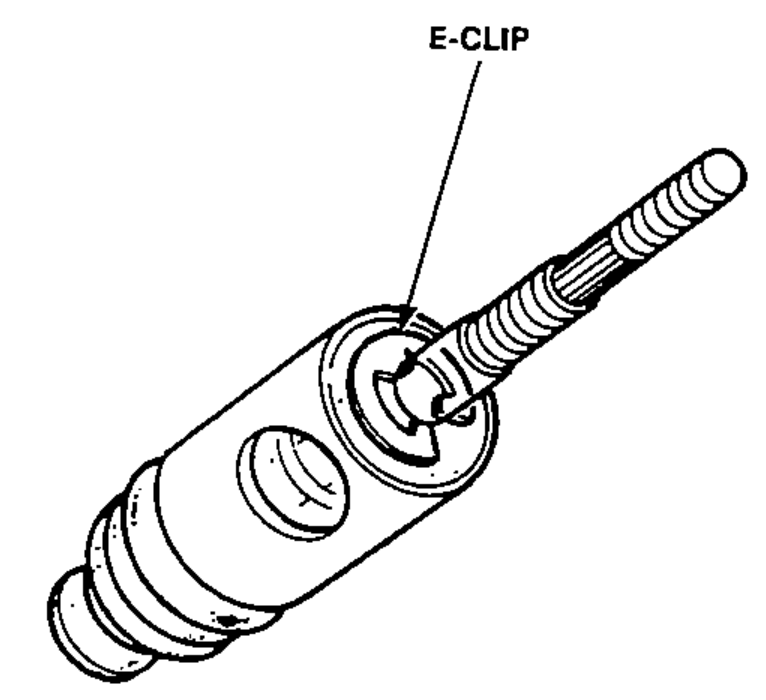

    Install a new filter A (felt) on the push rod and secure with a new E-clip.
    A new filter A (felt) installed on the push rod and secured with a new E-clip.
  4. 4

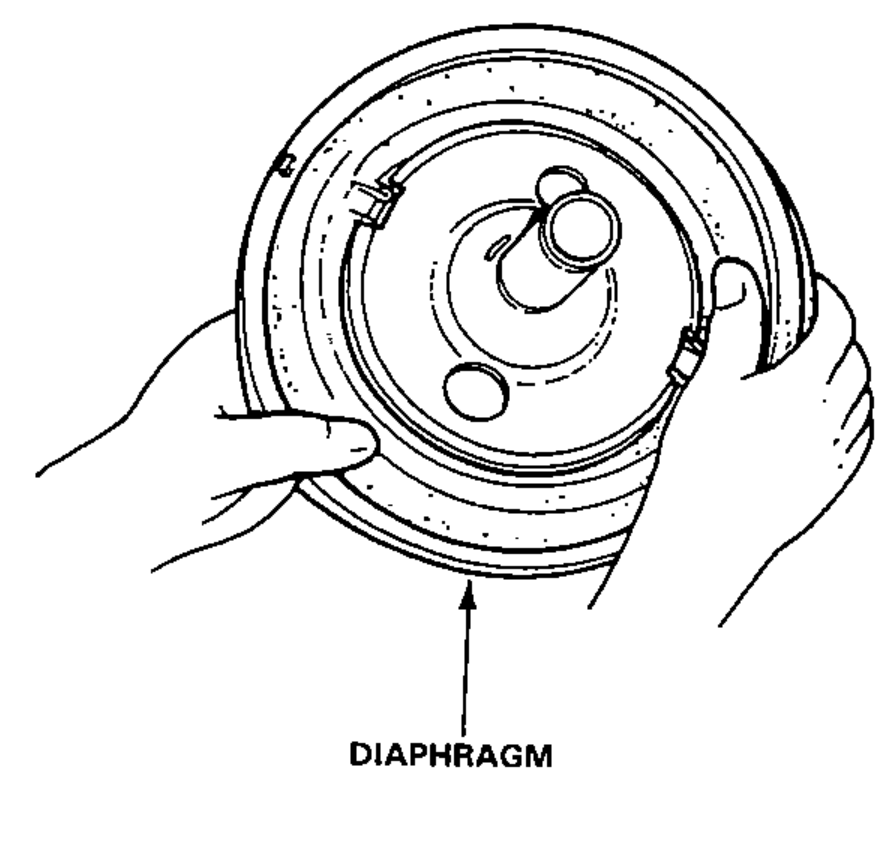

    Install the diaphragm on the booster piston.
    Two hands installing the diaphragm onto the booster piston.
