Brake Booster - Disassembly (cont'd)

13-22prose procedure

Disassembly (cont'd)

11

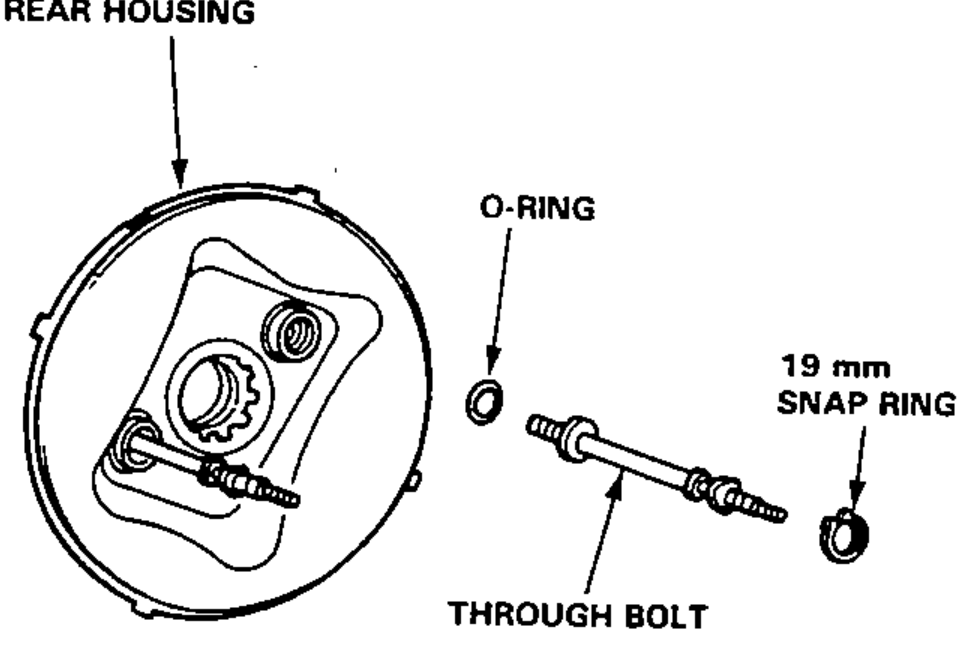

Install the O-rings and through bolts on the rear housing and secure with 19 mm snap ring.
12

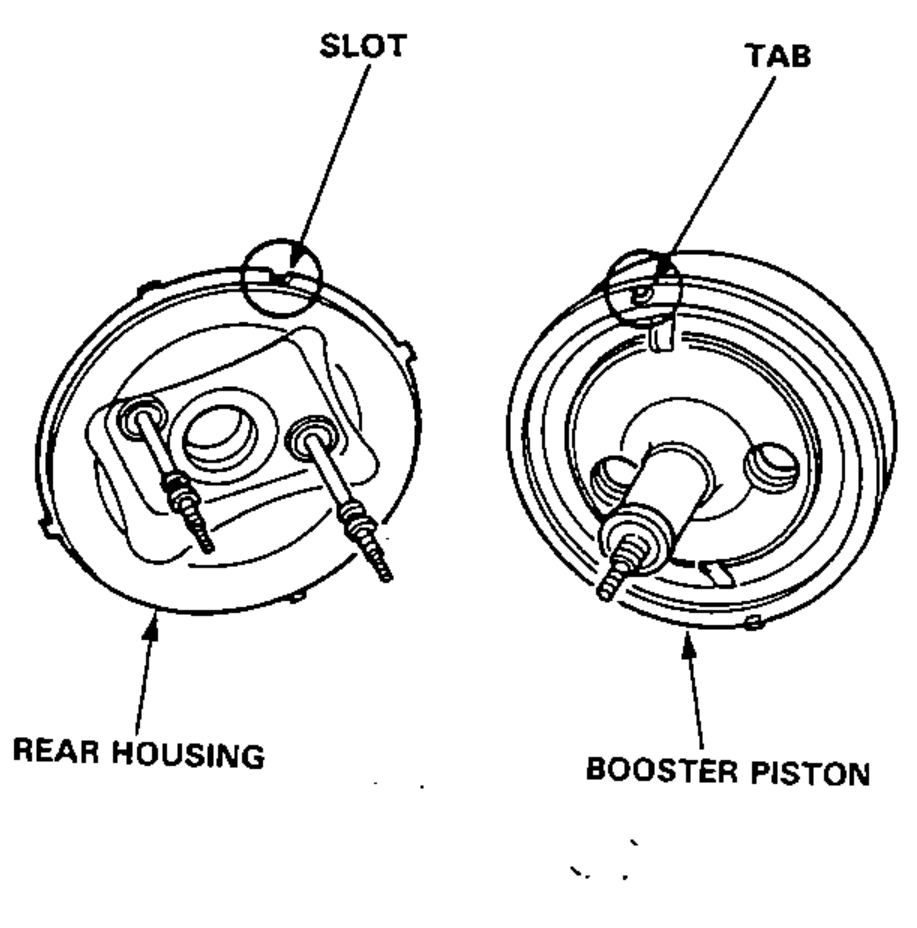

Install the booster piston on the rear housing aligning their tabs and slots.
13

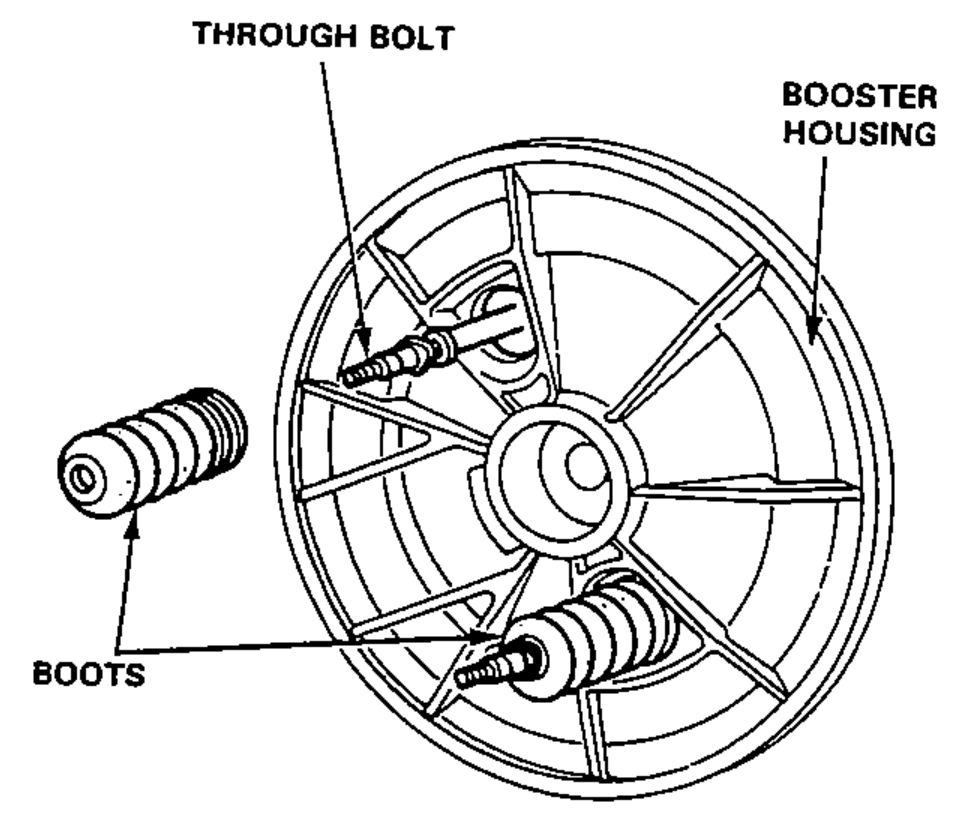

Install the boots on the through bolts.
Make sure not to damage the boots when installing.
14
Apply silicone grease to the bore of the booster piston and reaction rubber.
15

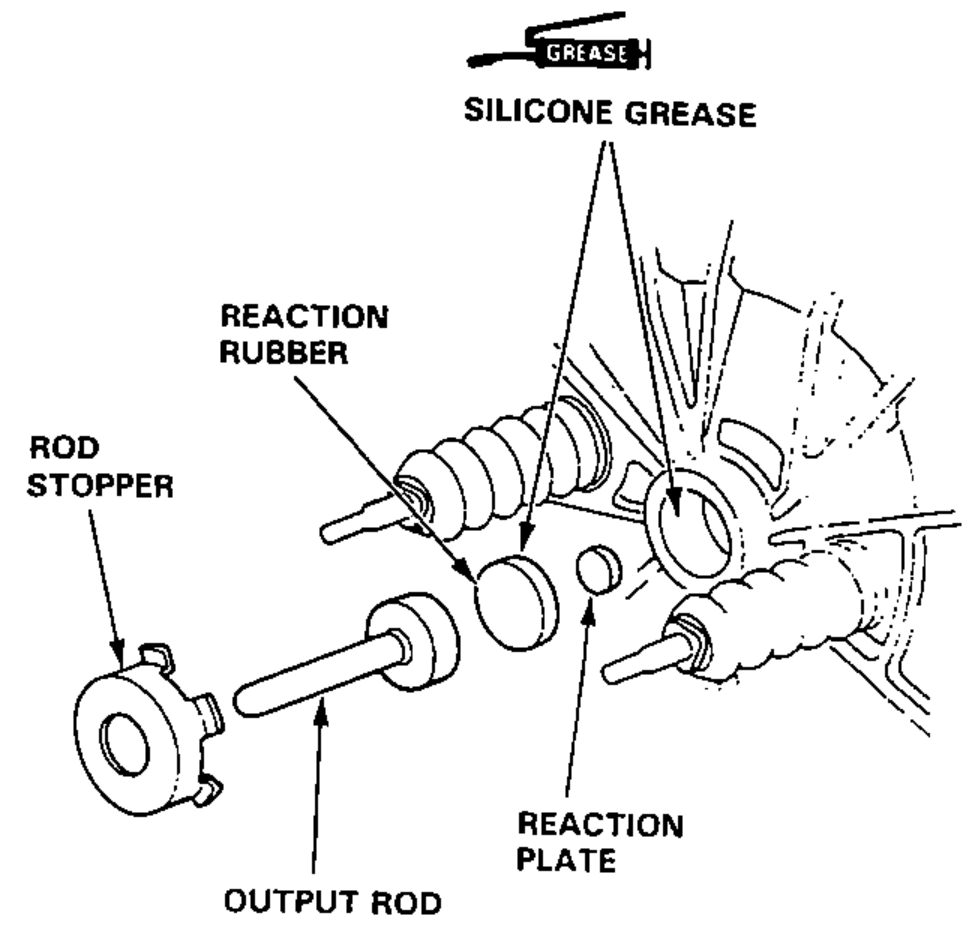

Install the reaction plate, reaction rubber, output rod and rod stopper on the booster piston.
