Brake Booster - Pushrod Adjustment

13-24prose procedure
Continued from 13-23

Pushrod Adjustment

  1. 1
    Install the locknut and pushrod yoke on the pushrod, and adjust the pushrod length as shown.

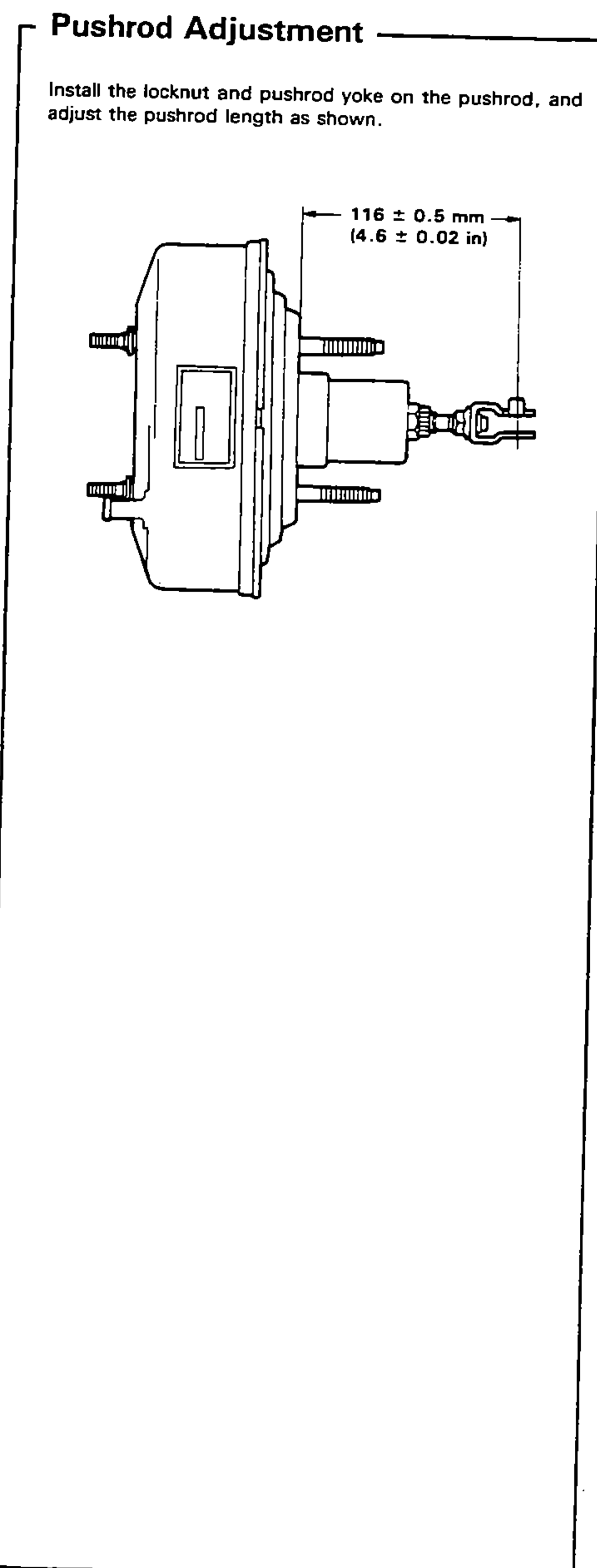

    Side view of the brake booster with the locknut and pushrod yoke installed on the pushrod, showing the pushrod length dimension measured from the booster mounting face to the end of the yoke.
Pushrod length
116 ± 0.5 mm (4.6 ± 0.02 in)
