Rear Caliper - Disassembly (cont'd)

13-32prose procedure
Continued from 13-31

Disassembly (cont'd)

  1. 9
    Install the special tool between the caliper body and spring guide as shown.

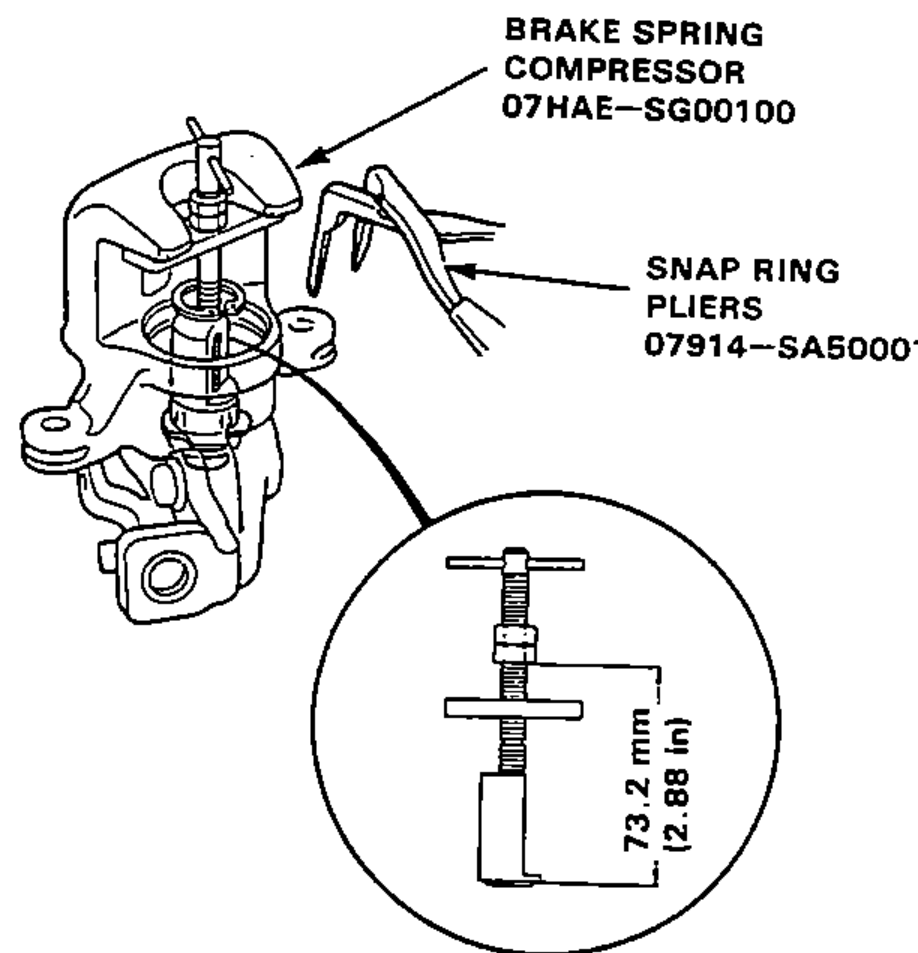

    Brake Spring Compressor special tool installed between the caliper body and spring guide, compressing adjusting spring B; inset detail shows the shaft dimension. Snap ring pliers used to remove the circlip.
  2. 10
    Compress the adjusting spring B by turning the shaft of the special tool, then remove the circlip with snap ring pliers.
  3. 11
    Remove the brake spring compressor from caliper body.
  4. 12
    Remove the spring cover, adjusting spring B, spacer, bearing A, adjusting bolt and cup.

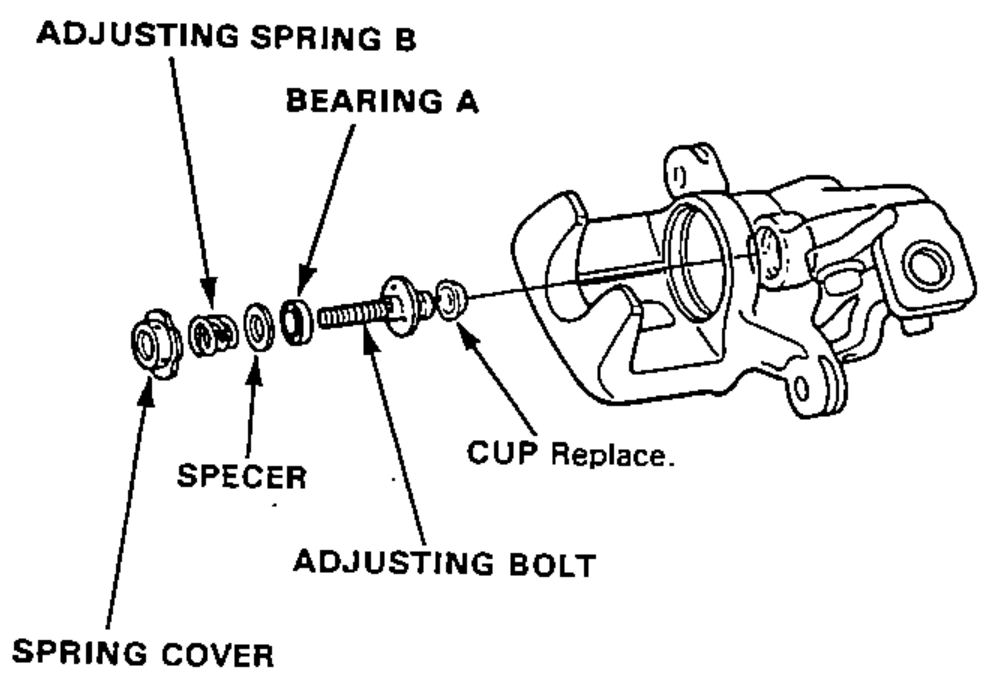

    Exploded view of the caliper spring assembly: spring cover, adjusting spring B, bearing A, spacer, adjusting bolt and cup. Cup marked replace.
  5. 13
    Remove the sleeve piston, then remove the rod from the cam.

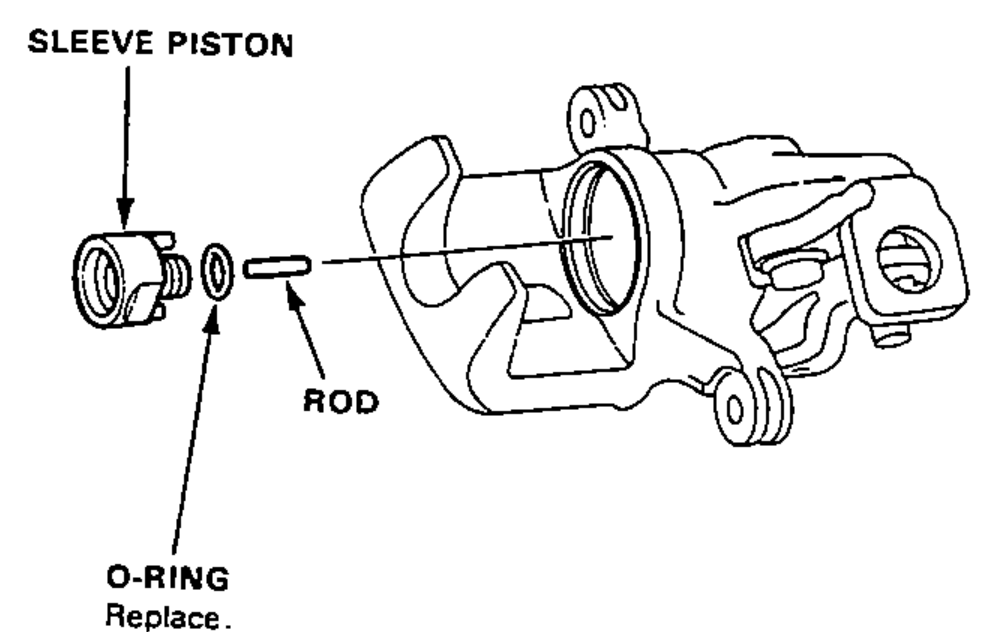

    Sleeve piston, rod and O-ring being removed from the caliper cam. O-ring marked replace.
  6. 14
    Remove the return spring, parking nut, spring washer, lever, cam and cam boot.

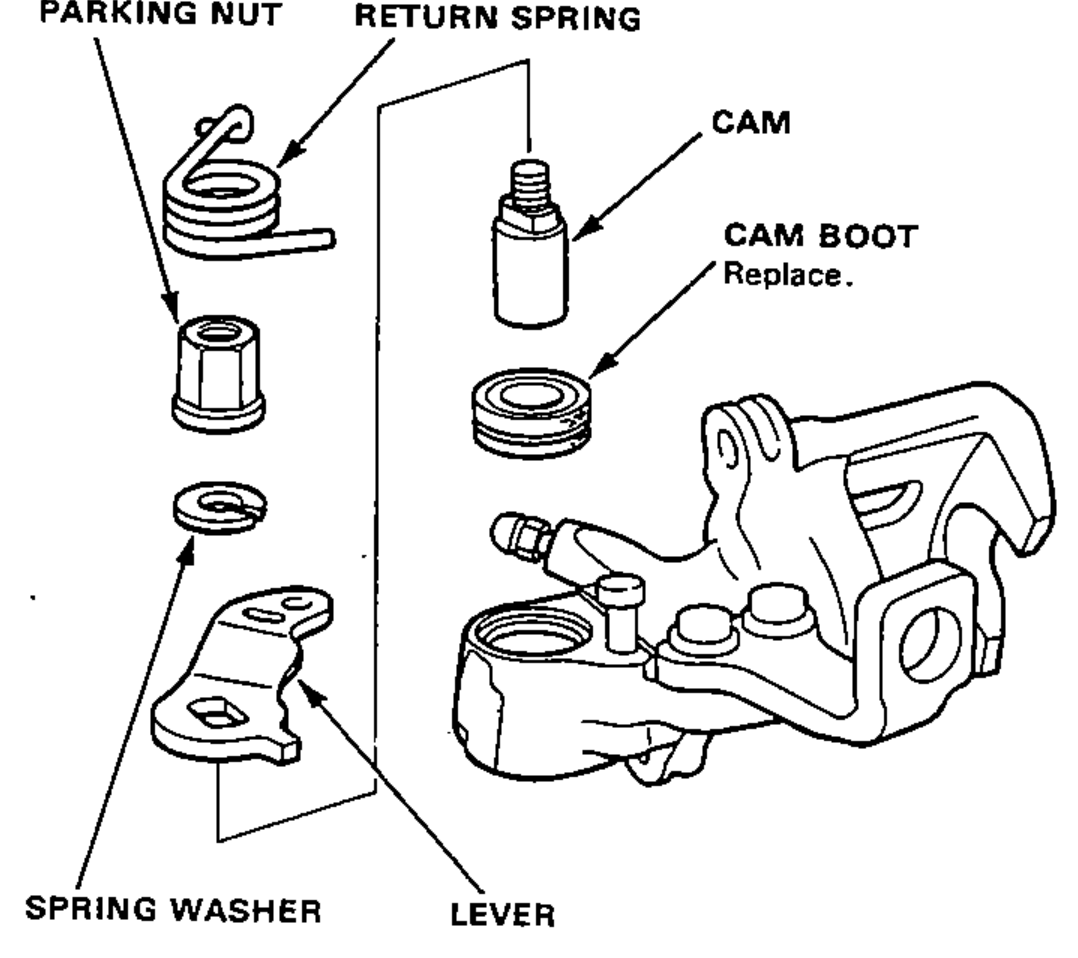

    Exploded view of the parking-brake actuator components removed from the caliper: return spring, parking nut, spring washer, lever, cam and cam boot. Cam boot marked replace.
