Rear Caliper - Reassembly
13-33prose procedureReassembly
CAUTION
Make sure all parts are clean before reassembly. Use only new replacement parts. Use only new clean brake fluid. Do not allow dirt or other foreign matter to contaminate the brake fluid. Do not mix different brands of brake fluid. Avoid spilling brake fluid on painted, plastic or rubber surfaces as it can damage the finish. Wash spilled brake fluid off immediately with clean water.
- 1Adjust the brake spring compressor (special tool) as shown.
- 2Pack all cavities of the needle bearing with Brake Cylinder Grease (P/N: 08733-B020E), or equivalent rubber grease.

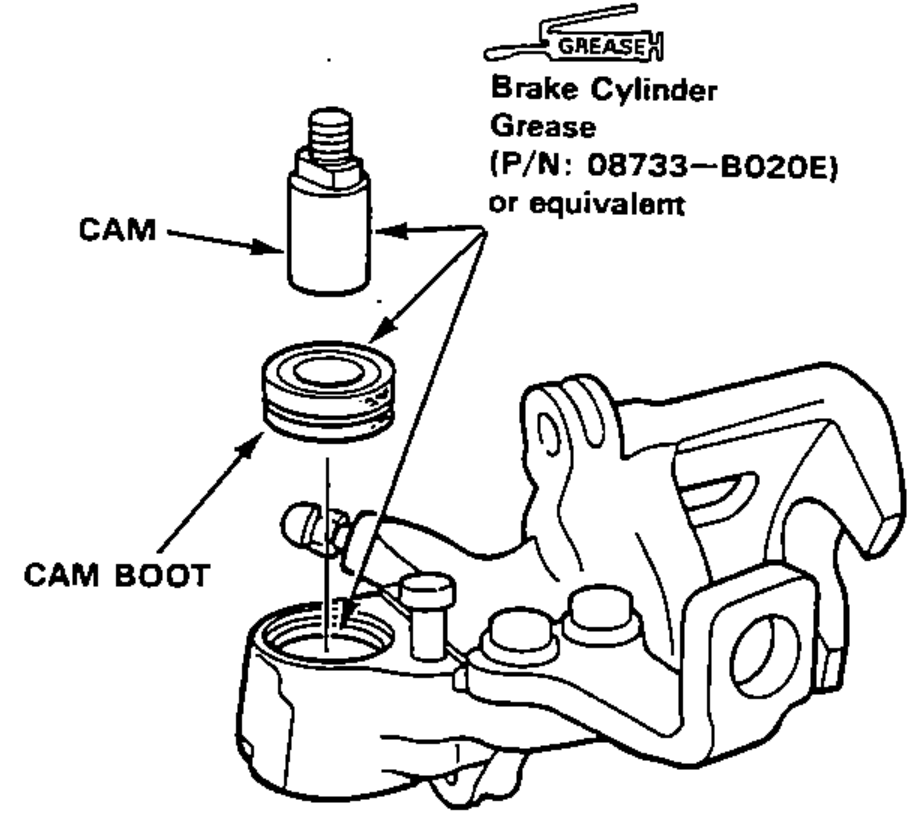

- 3Coat the new cam boot with Brake Cylinder Grease (P/N: 08733-B020E), or equivalent rubber grease and install in the caliper.
- 4Install the cam with threaded end facing up.Avoid damaging the cam boot since it must be installed before the cam.

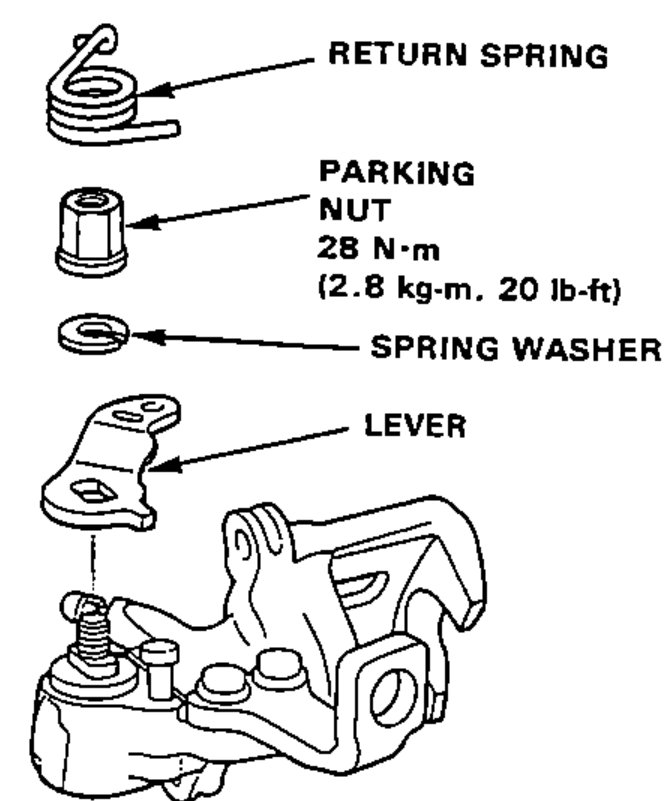

- 5Install the lever, spring washer and parking nut, then tighten parking nut.
- 6Install the return spring.
| Specification | Value |
|---|---|
| Parking nut | 28N·m |
Parking nut
28N·m
