Brake Booster - Disassembly (cont'd)

13-23prose procedure
Continued from 13-22
  1. 16

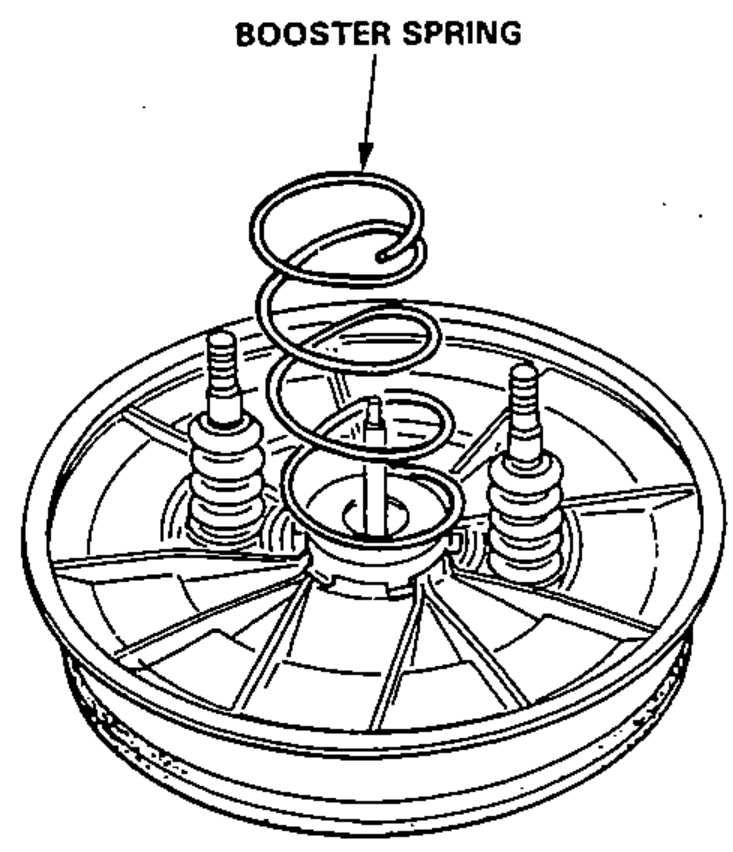

    Install the booster spring.
    Booster spring being installed onto the booster piston/housing.
  2. 17
    Install the spring retainer on the through bolts aligning the square portions of the bolts and retainer.

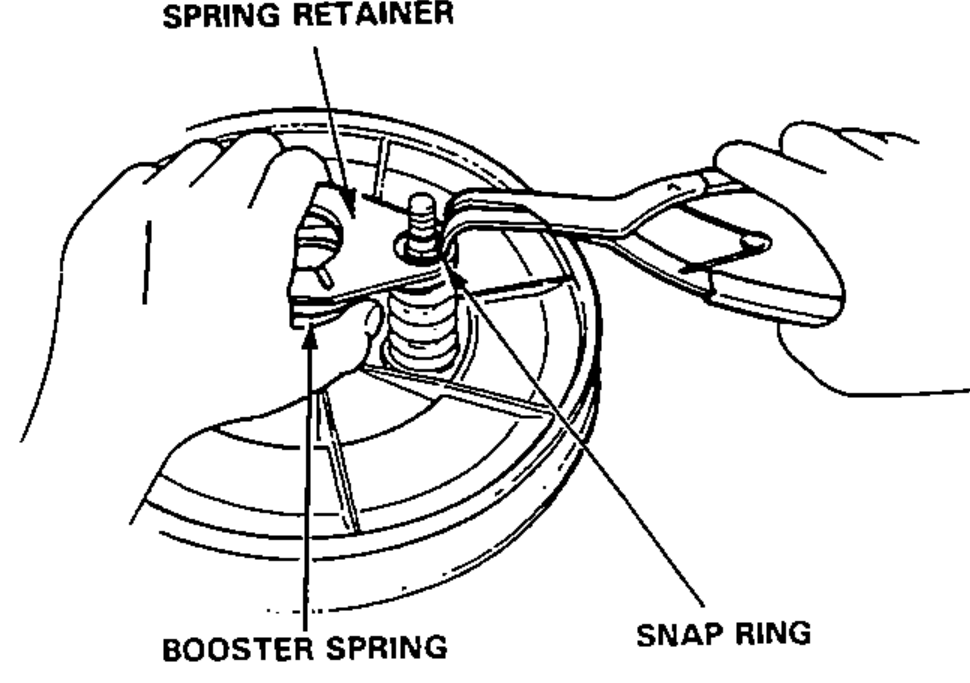

    Hands installing the spring retainer and compressing the booster spring to fit the 10 mm snap ring on the through bolts, using a screwdriver.
  3. 18
    Compress the booster spring, then install the 10 mm snap ring on the through bolts.
  4. 19

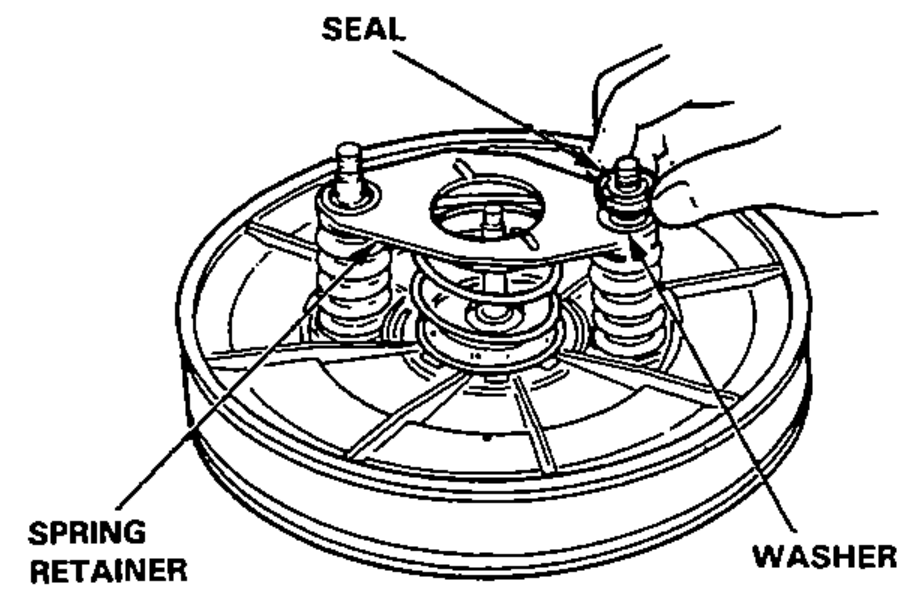

    Install the washers and seals on the through bolts.
    Install the seals with the flat sides facing the spring retainer side as shown.
    Hand installing the washers and seals on the through bolts of the booster housing, showing seal, spring retainer and washer locations.
  5. 20

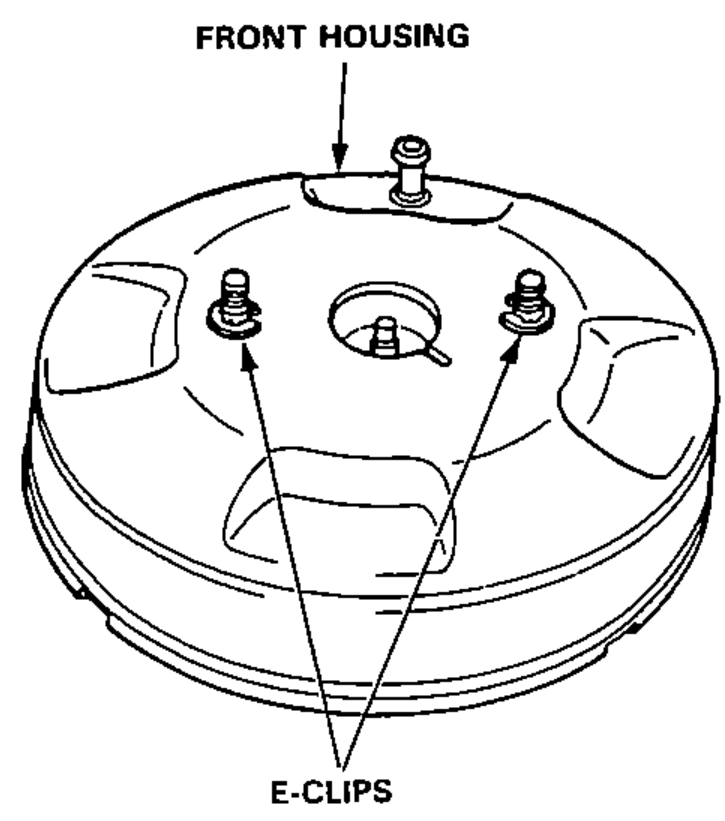

    Install the front housing and secure with E-clips.
    Front housing installed and secured with E-clips on the booster assembly.
