Timing Belt - Replacement (cont'd)

5-19prose procedure

SOHC engine timing belt.

Continued from 5-18
  1. 8
    Remove the valve cover.

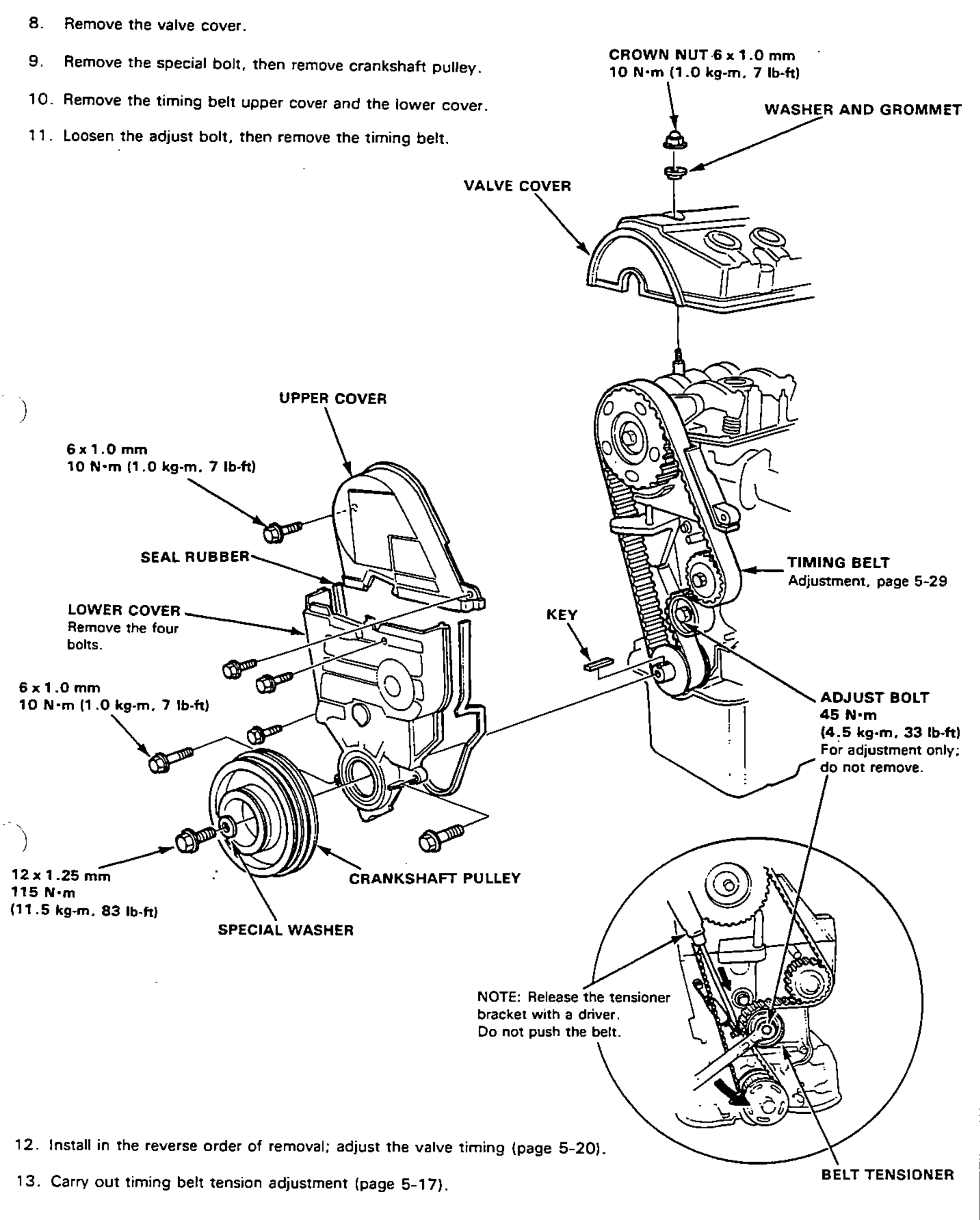

    Exploded view of the timing belt removal: valve cover with crown nut and washer/grommet, timing belt upper cover, lower cover, seal rubber, crankshaft pulley with special washer, key, camshaft pulley, timing belt and belt tensioner with adjust bolt; inset shows releasing the tensioner bracket with a driver.
  2. 9
    Remove the special bolt, then remove crankshaft pulley.
  3. 10
    Remove the timing belt upper cover and the lower cover.
  4. 11
    Loosen the adjust bolt, then remove the timing belt.
    NOTE: Release the tensioner bracket with a driver. Do not push the belt.
  5. 12
    Install in the reverse order of removal; adjust the valve timing (page 5-20).
  6. 13
    Carry out timing belt tension adjustment (page 5-17).
