Timing Belt - Replacement

5-24prose procedure

DOHC engine. P/S pump and P/S bracket removal applies to KQ model.

Continued from 5-23

Replacement

  1. 1
    Remove the wheel well splash shield.

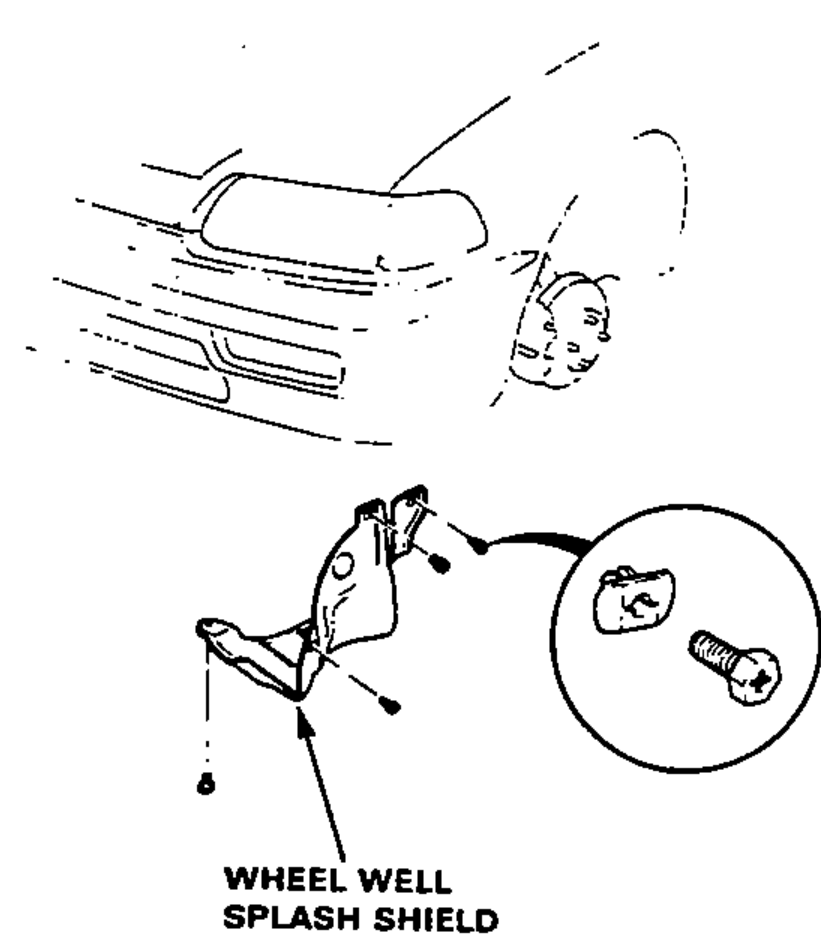

    Front wheel well area showing the wheel well splash shield and its mounting bolts, with an inset detail of a bolt and clip.
  2. 2
    Remove the power steering (P/S) pump (KQ).

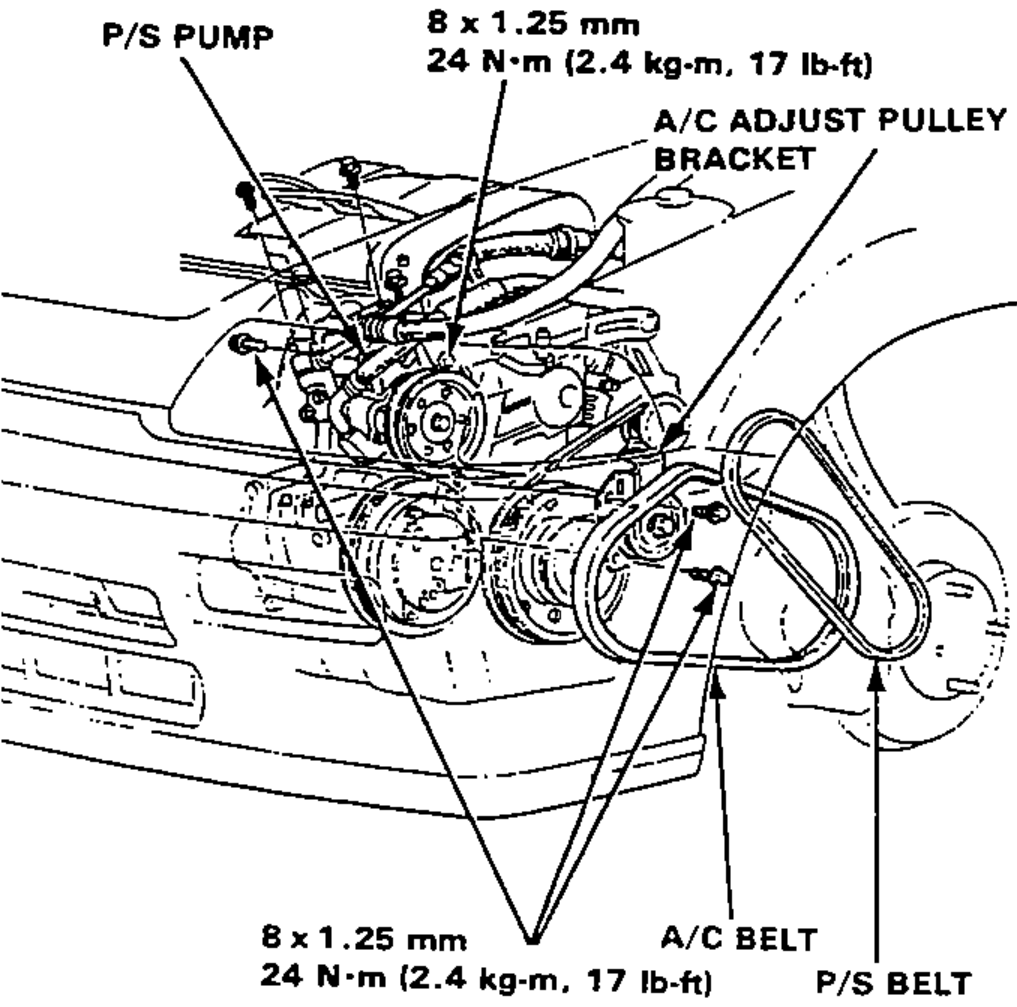

    Engine front view showing the P/S pump, A/C adjust pulley bracket, A/C belt and P/S belt with bolt torque callouts.
  3. 3
    Loosen the air conditioning (A/C) idle pulley and remove the A/C belt.
  4. 4
    Remove the P/S bracket (KQ).

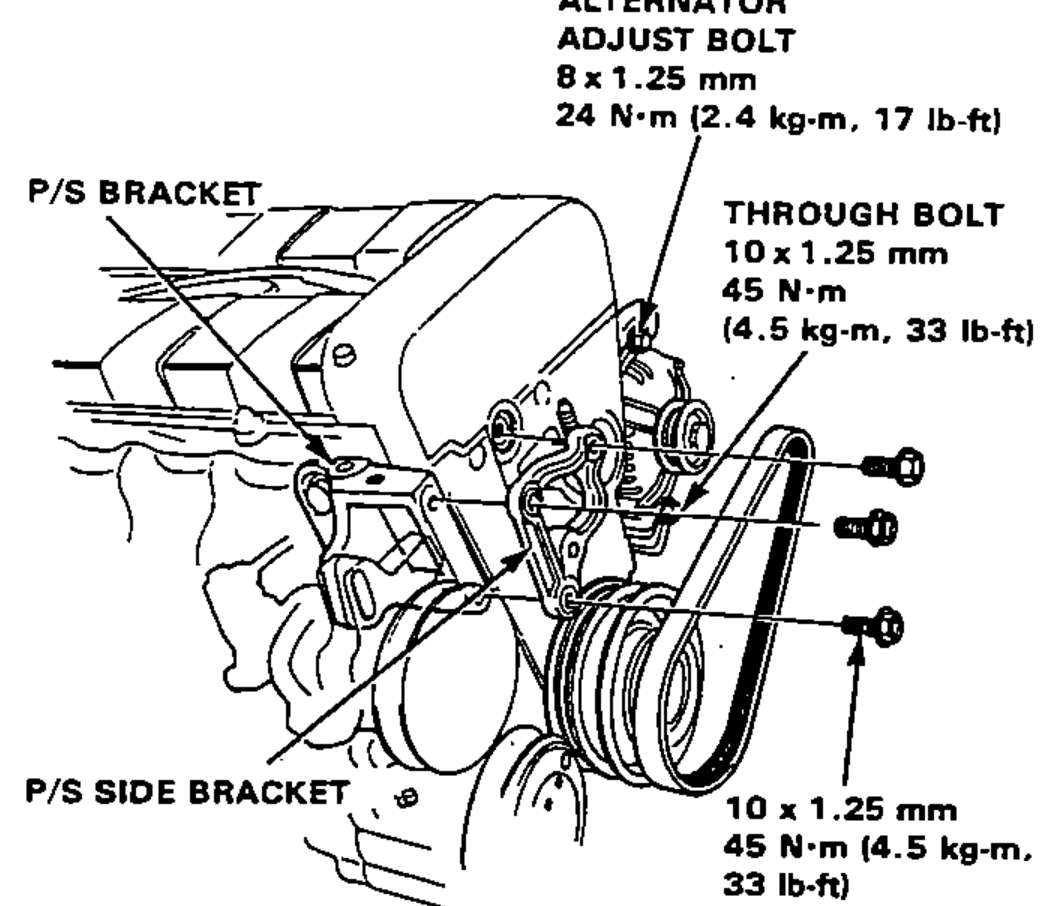

    Alternator/power-steering area showing the P/S bracket, P/S side bracket, alternator adjust bolt, through bolt and belt with torque callouts.
  5. 5
    Loosen the alternator adjust bolt and through bolt, then remove the belt.
  6. 6
    After installation, adjust the tension of each belt. See page 5-6 for alternator belt tension adjustment. See page 5-7 for A/C compressor belt tension adjustment. See page 5-7 for P/S pump belt tension adjustment.
  7. 7
    Remove the engine support bolts and nut, then remove the side mount rubber.

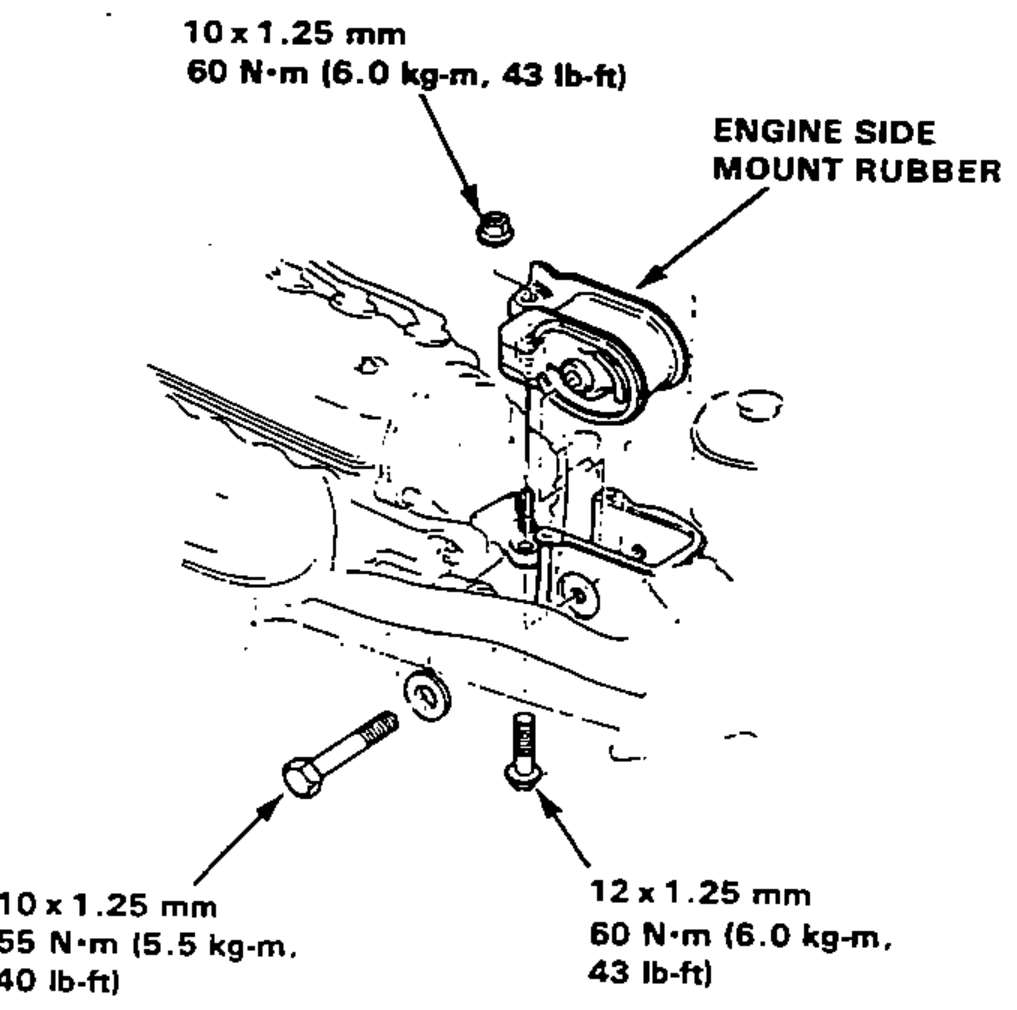

    Engine side mount area showing the engine side mount rubber, support bolts and nut with torque callouts.
