Timing Belt Removal

5-25prose procedure
Continued from 5-24
  1. 6
    Remove the timing belt upper cover.

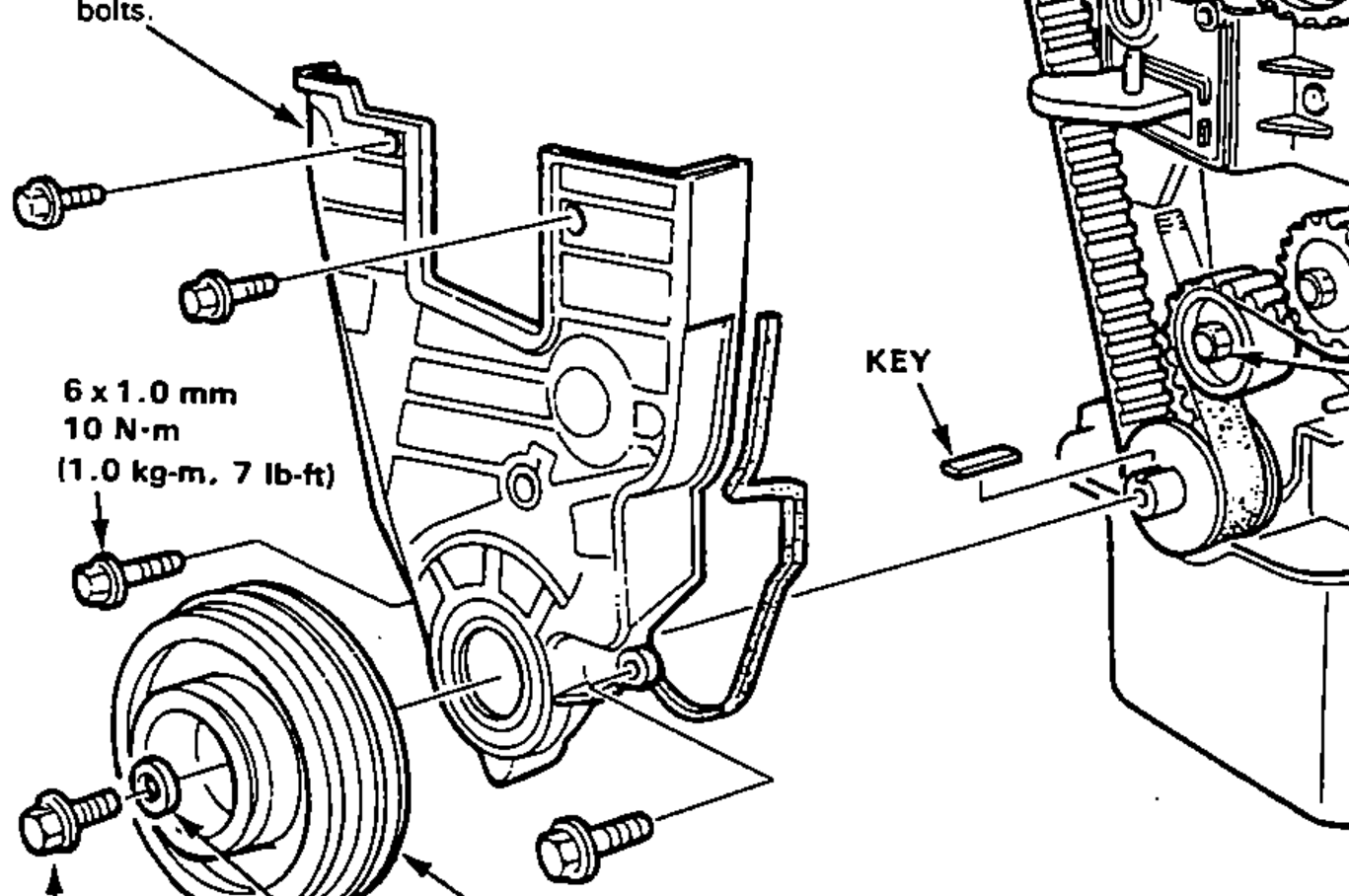

    Exploded view of the timing belt assembly and covers, showing the upper cover, lower cover, valve cover, crankshaft pulley, special washer, crankshaft key, timing belt over the camshaft/crankshaft/adjuster pulleys, and the adjust bolt. Fastener torque callouts and bolt sizes are labelled with leader lines.
  2. 7
    Remove the valve cover.
  3. 8
    Remove the special bolt, then remove crankshaft pulley.
  4. 9
    Remove the timing belt lower cover.
  5. 10
    Loosen the adjust bolt, then remove the timing belt.
    Release the tensioner bracket with a driver. Do not push the belt.
    Circular detail inset of the belt tensioner, showing a driver releasing the tensioner bracket. NOTE: Release the tensioner bracket with a driver. Do not push the belt.
  6. 11
    Install in the reverse order of removal; adjust the valve timing (page 5-26).
  7. 12
    Carry out timing belt tension adjustment (page 5-23).
