Engine Removal/Installation (cont'd)

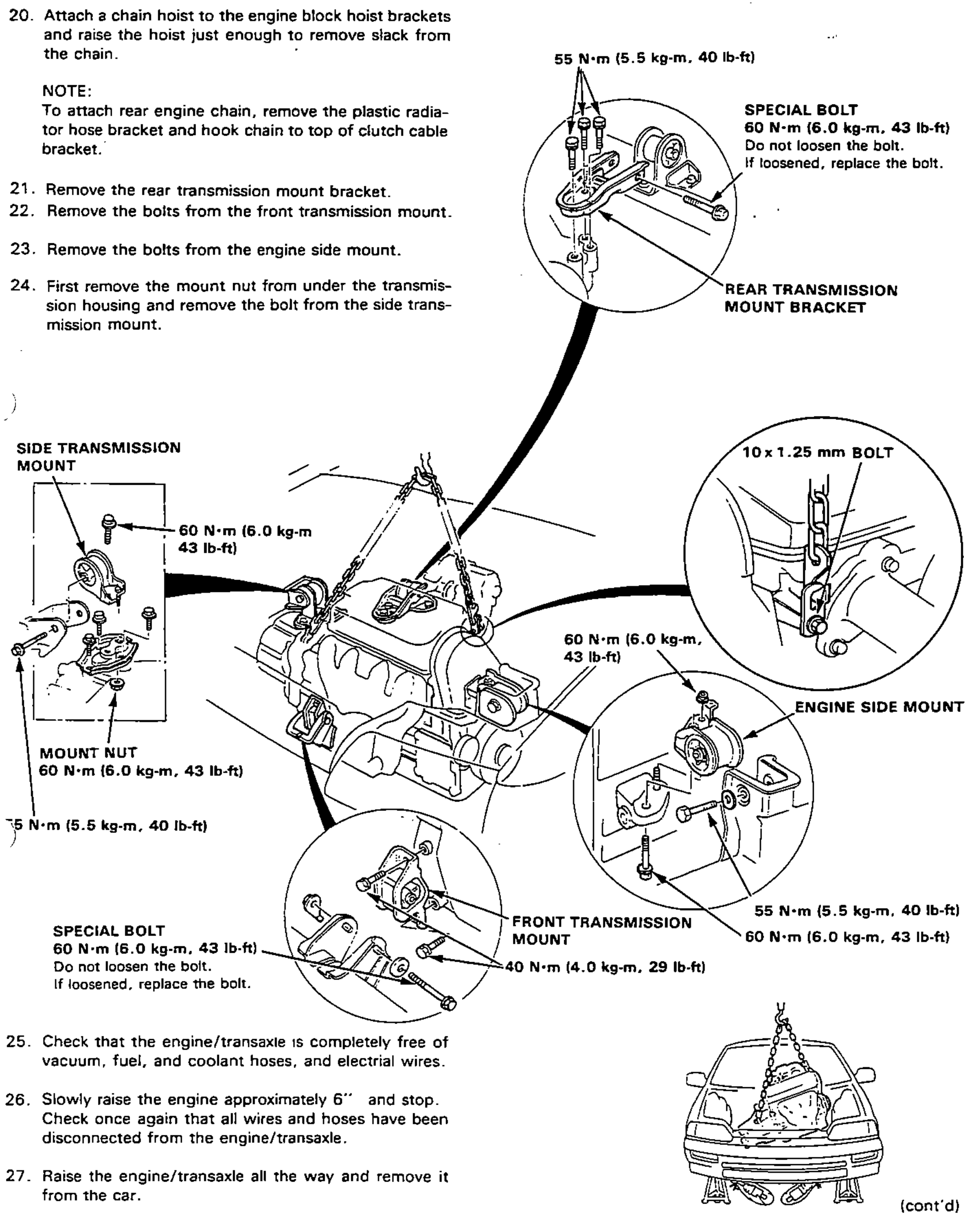

5-49prose procedure- 20Attach a chain hoist to the engine block hoist brackets and raise the hoist just enough to remove slack from the chain.NOTE: To attach rear engine chain, remove the plastic radiator hose bracket and hook chain to top of clutch cable bracket.
- 21Remove the rear transmission mount bracket.
- 22Remove the bolts from the front transmission mount.
- 23Remove the bolts from the engine side mount.
- 24First remove the mount nut from under the transmission housing and remove the bolt from the side transmission mount.
- 25Check that the engine/transaxle is completely free of vacuum, fuel, and coolant hoses, and electrical wires.
- 26Slowly raise the engine approximately 6" and stop. Check once again that all wires and hoses have been disconnected from the engine/transaxle.
- 27Raise the engine/transaxle all the way and remove it from the car.
| Specification | Value |
|---|---|
| Rear transmission mount bracket bolts | 55N·m |
| Rear transmission mount special bolt | 60N·m |
| Side transmission mount bolt | 60N·m |
| Side transmission mount nut | 60N·m |
| Side transmission mount (lower) | 55N·m |
| Front transmission mount special bolt | 60N·m |
| Front transmission mount bolt | 40N·m |
| Engine side mount | 60N·m |
Rear transmission mount bracket bolts
55N·m
Rear transmission mount special bolt
60N·m
Side transmission mount bolt
60N·m
Side transmission mount nut
60N·m
Side transmission mount (lower)
55N·m
Front transmission mount special bolt
60N·m
Front transmission mount bolt
40N·m
Engine side mount
60N·m
