Engine Removal/Installation (cont'd)

5-48prose procedure

Clutch cable adjust nut is manual transmission only. Driveshaft removal references Section 10.

Continued from 5-47
  1. 18
    Remove the shift lever torque rod, shift rod and clutch cable.
    NOTE: On reassembly, slide the retainer back into place after driving in the spring pin.
    Close-up of the shift linkage showing the spring pin (replace), pin retainer, shift rod and shift lever torque rod, driven out with an 8 mm pin punch.
  2. 19
    Remove the right and left driveshafts. (See Section 10)
    NOTE: Coat all precision finished surfaces with clean engine oil or grease. Tie plastic bags over the driveshaft ends.

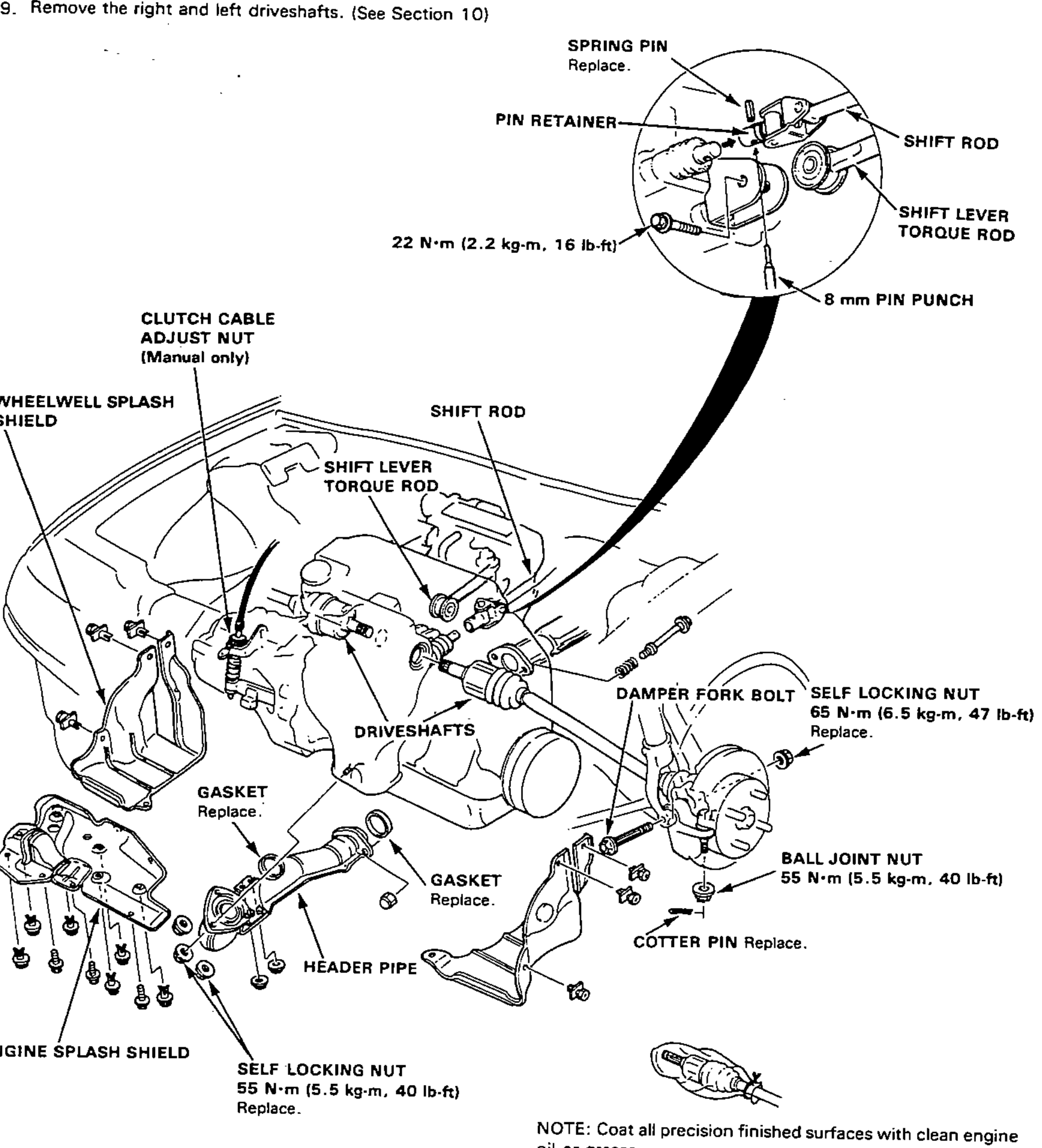

    Composite engine-removal view showing the clutch cable adjust nut (manual only), shift rod, shift lever torque rod, driveshafts, wheelwell splash shield, engine splash shield, header pipe with gaskets (replace), damper fork bolt, ball joint nut, cotter pin and self-locking nuts.
