Radiator - Replacement
5-58prose procedureReplacement
- 1Drain the coolant from the radiator.Use care when removing radiator to avoid scalding by hot coolant or steam.
- 2Remove the connectors from the cooling fan motor and thermoswitch.
- 3Disconnect the upper and lower radiator hoses from cylinder head.

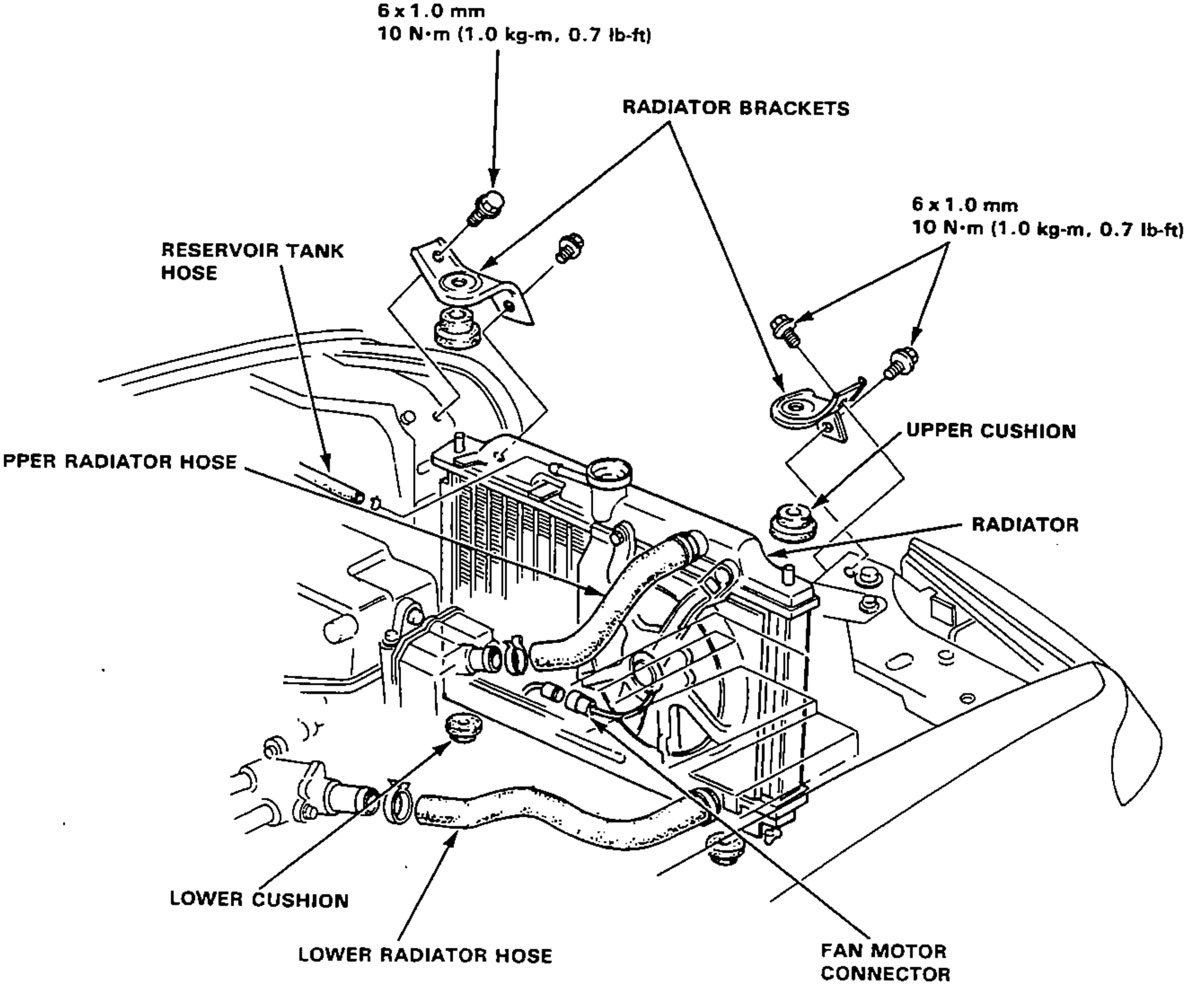

- 4Remove the radiator bracket and radiator.
| Specification | Value |
|---|---|
| Radiator bracket bolt | 10N·m |
Radiator bracket bolt
10N·m
NOTE
Install the radiator in the reverse order of removal. Before installing the radiator, set the radiator lower cushion securely under it.
