Cylinder Head - Removal (engine removal not required) (cont'd)

5-32prose procedure

SOHC cylinder head removal continued; A/C belt steps apply to vehicles with A/C.

Removal (engine removal not required) (cont'd)

12

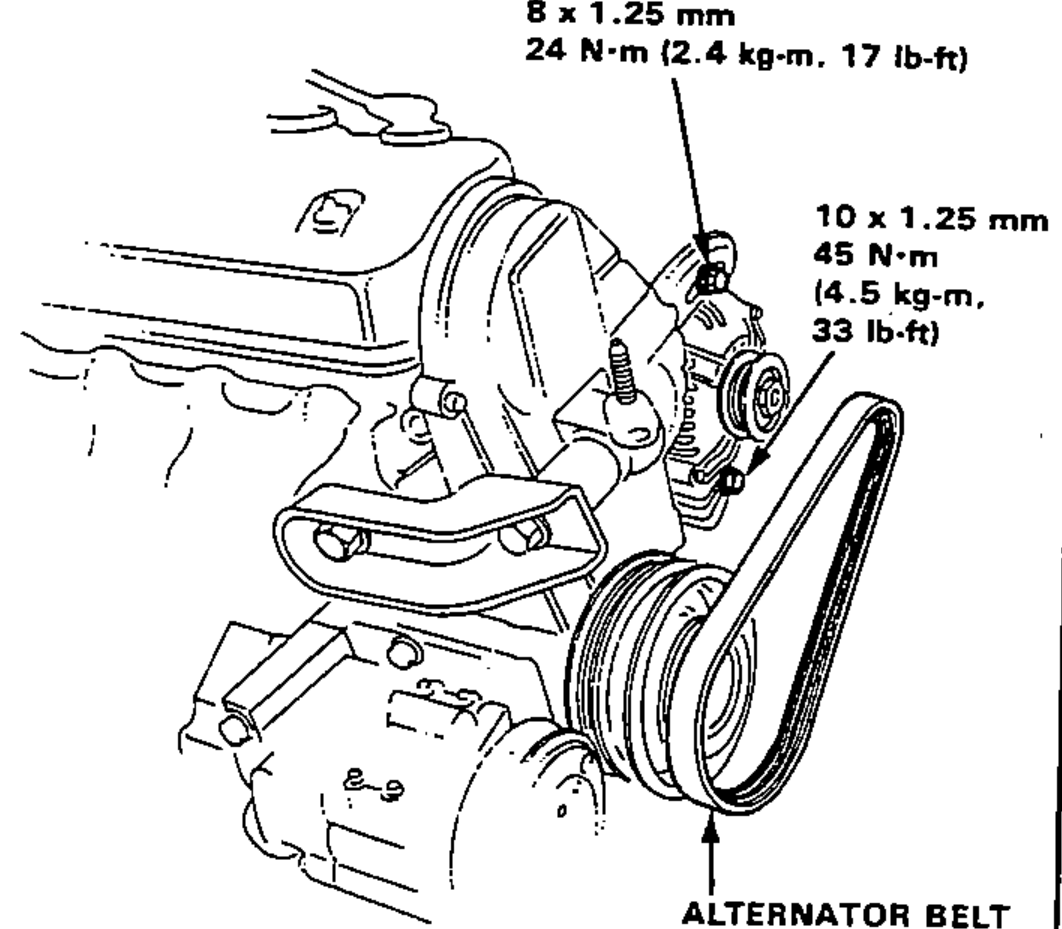

Remove the alternator belt.
13
Remove the intake manifold bracket.
14
Remove the exhaust manifold bracket, then remove the header pipe.
15
Remove the exhaust manifold shroud, then remove exhaust manifold.
16
Remove the distributor and valve cover.
17
Remove the timing belt upper cover.
18

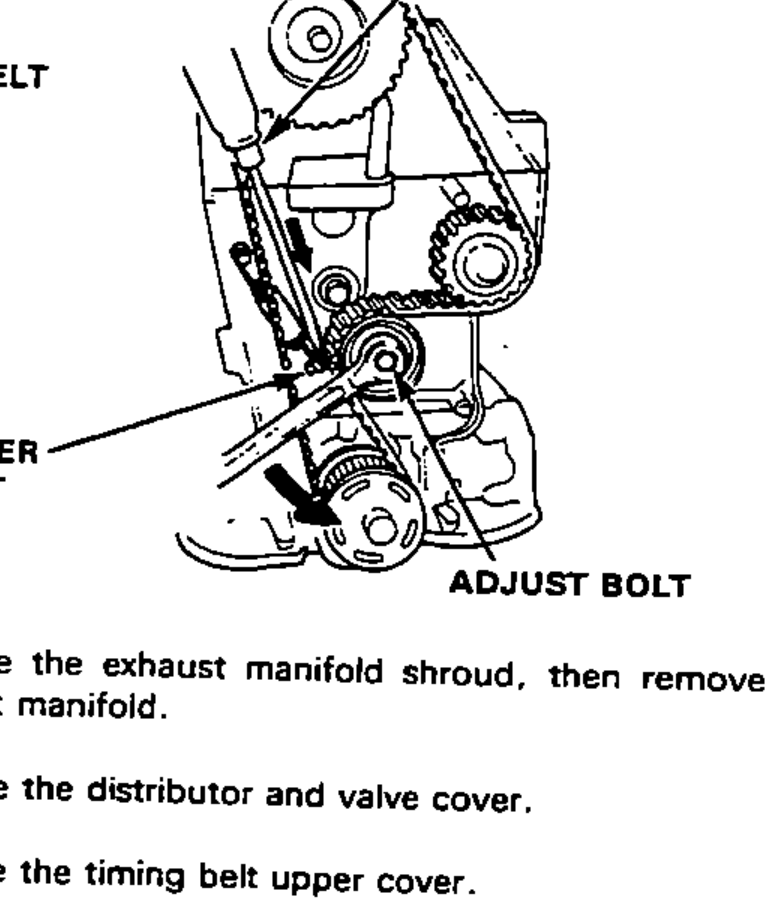

Loosen the timing belt adjust bolt, then remove the timing belt from the camshaft pulley.
DO not crimp or bend timing belt more than 90° or less than 25 mm (1 in.) in diameter.
Release the tensioner bracket with a driver. Do not push the belt.
19
Remove the cylinder head.
20
Remove the intake manifold from the cylinder head.
