Engine Removal/Installation (cont'd)

5-47prose procedure

Alternator removal (step 16) is LHD only. Step 17 (A/C compressor) applies to cars with A/C.

Continued from 5-46
  1. 14
    Disconnect the radiator hoses and heater hoses.

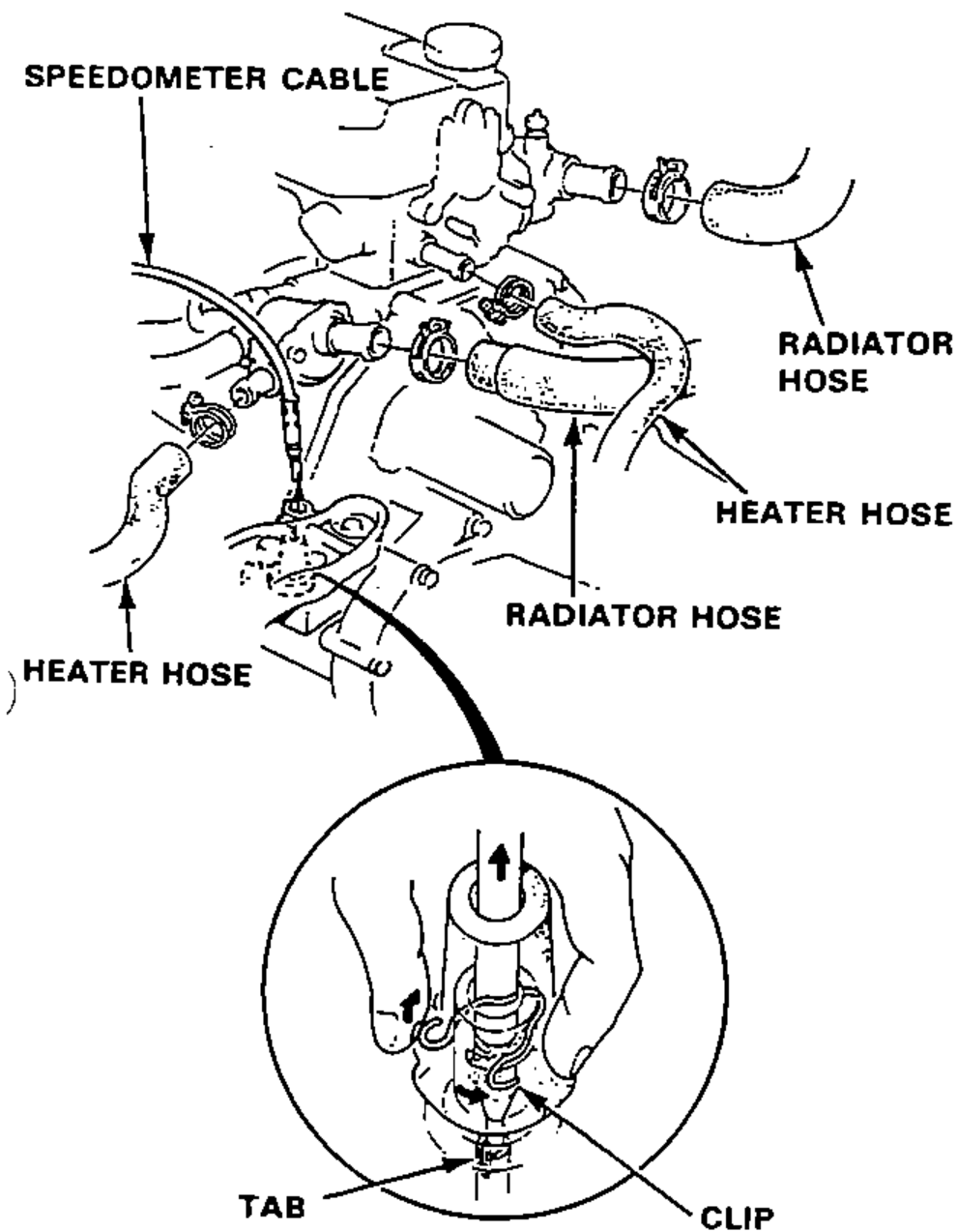

    Engine view showing the speedometer cable, radiator hoses and heater hoses to be disconnected.
  2. 15
    Remove the speedometer cable.
    CAUTION: Do not remove the holder because the speedometer gear may fall into the transmission housing.

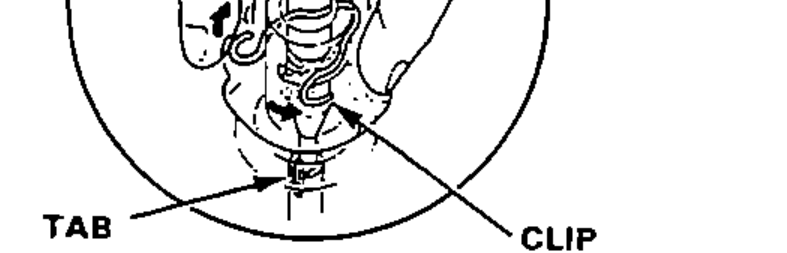

    Close-up of the speedometer cable holder showing the tab and clip; do not remove the holder.
  3. 16
    Remove the alternator: (LHD only)

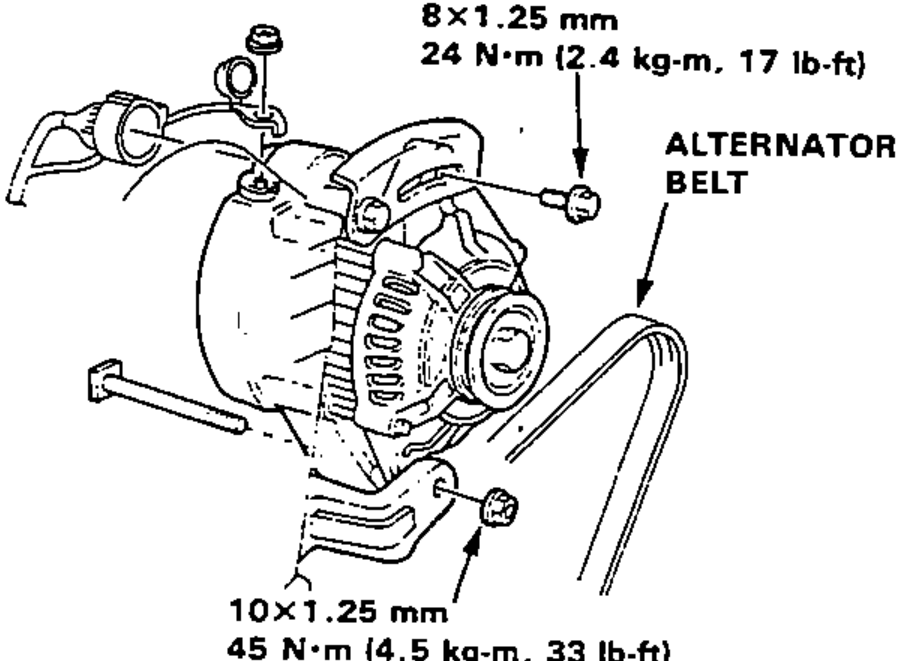

    Alternator with adjust bolt, mount bolt and alternator belt; with mounting torque callouts.
  4. 17
    On cars with A/C:
    NOTE: The compressor can be moved without discharging the air conditioner system.

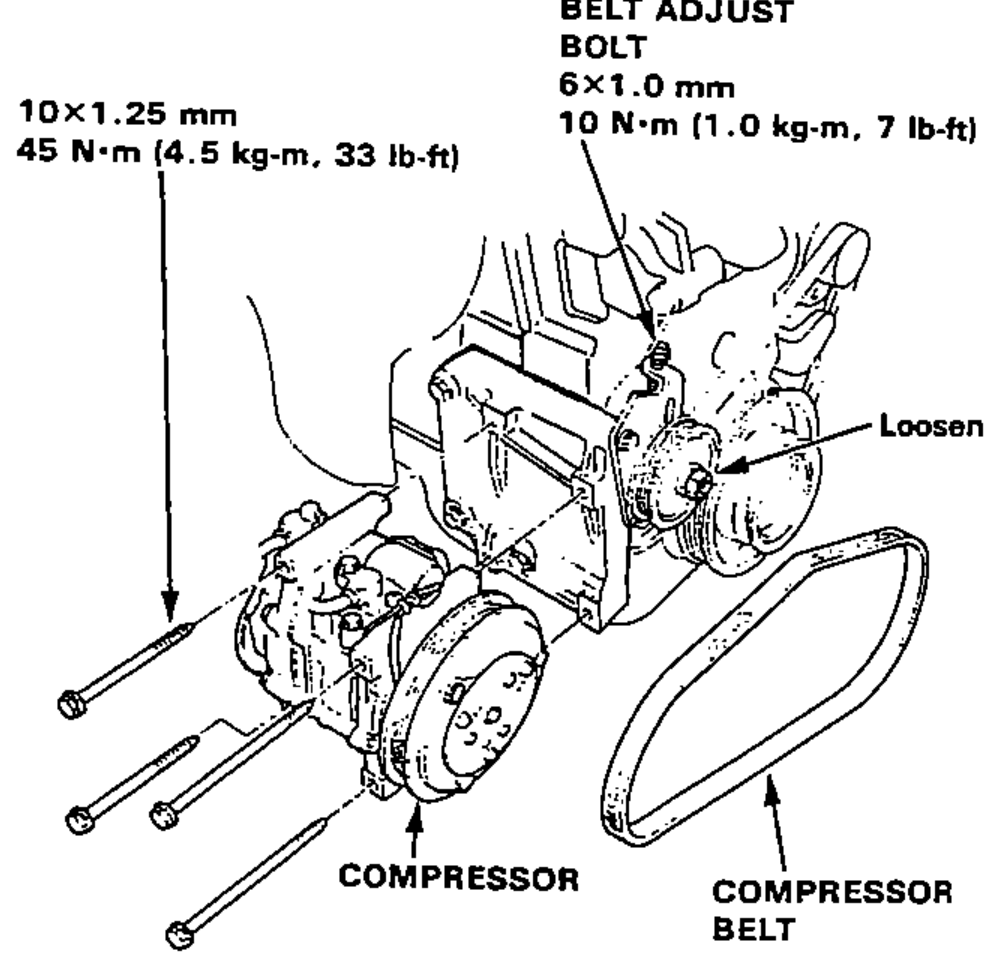

    A/C compressor in its bracket showing the belt adjust bolt, idle pulley, compressor mount bolts and compressor belt; loosen the belt adjust bolt and idle pulley nut.
