Engine Removal/Installation (cont'd)

5-50prose procedure
Continued from 5-49
  1. 28
    Install the engine in the reverse order of removal. After the engine is in place:
    CAUTION: Failure to tighten the bolts in the proper sequence can cause excessive noise and vibration, and reduce bushing life: check that the bushings are not twisted or offset.
    CAUTION: Use new spring clips on installation.

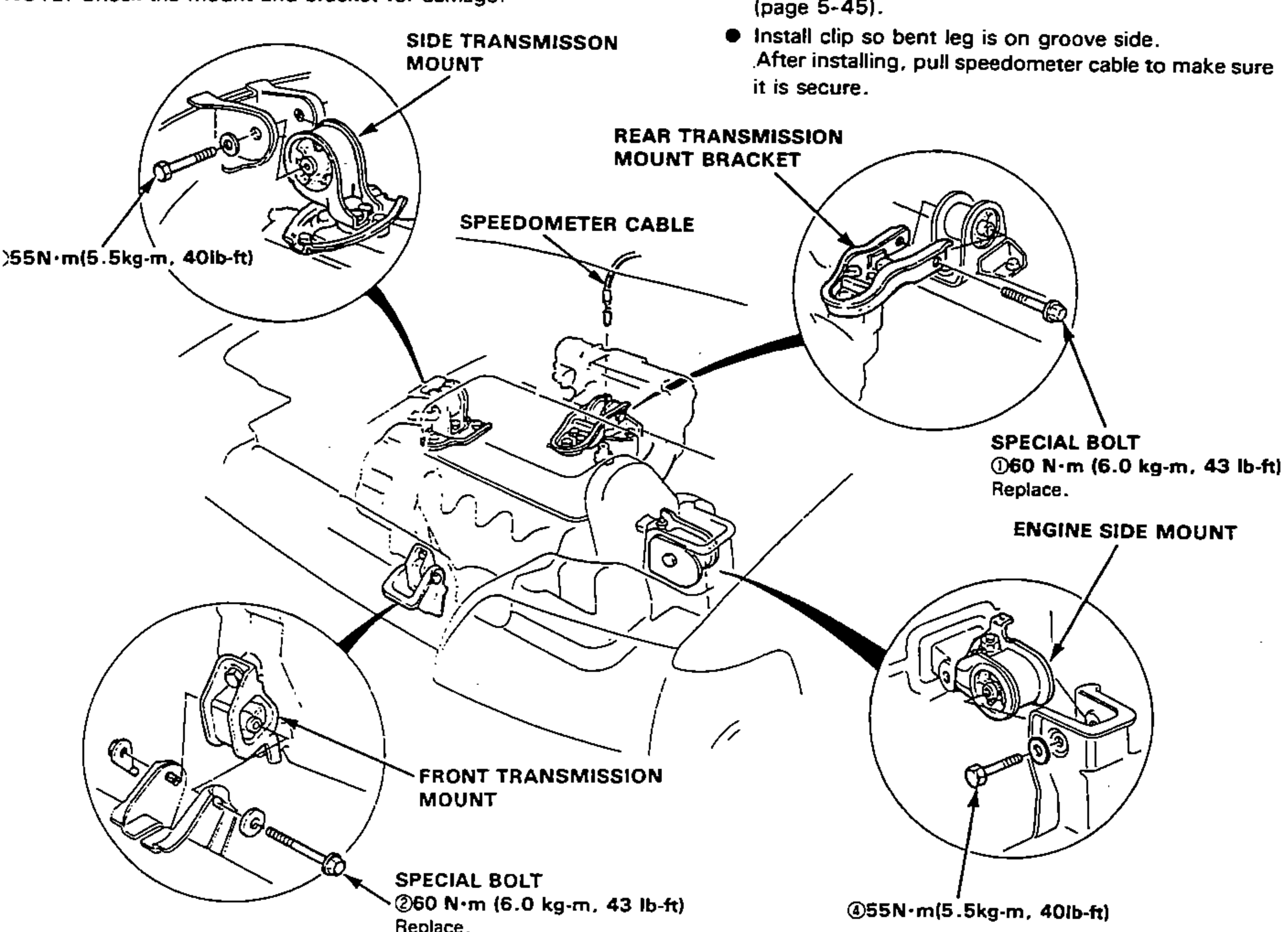

    Engine mount torque sequence composite showing the side transmission mount, rear transmission mount bracket, front transmission mount, engine side mount and speedometer cable, with numbered tightening sequence and special-bolt torques.

ENGINE MOUNT TORQUE SEQUENCE

Speedometer cable Installation:

Align tab on cable end with slot in holder (page 5-45). Install clip so bent leg is on groove side. After installing, pull speedometer cable to make sure it is secure.
