Cylinder Head - Installation (cont'd)

5-41prose procedure

DOHC engine.

Continued from 5-40
  1. 5
    Place the rocker arms on the pivot bolts and the valve stems.

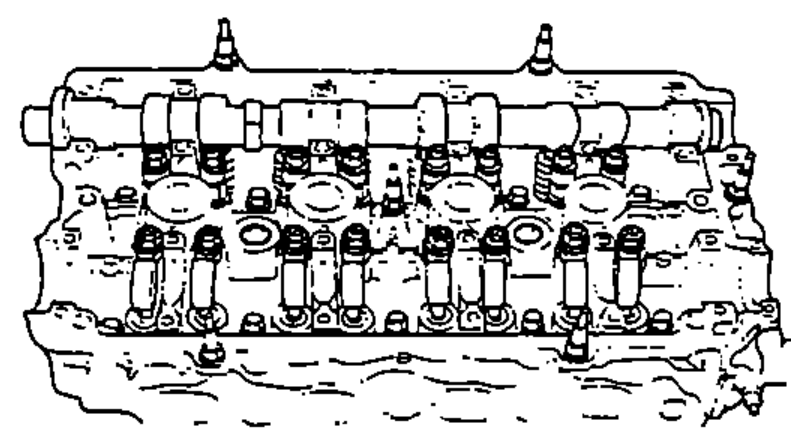

    Top view of the cylinder head with the rocker arms placed on the pivot bolts and valve stems.
  2. 6
    Install the camshafts and the camshaft seals with the open side (spring) facing in.
    NOTE: "I" or "E" marks are stamped on the camshaft holders.
    Do not apply oil to the holder mating surface of camshaft seals.

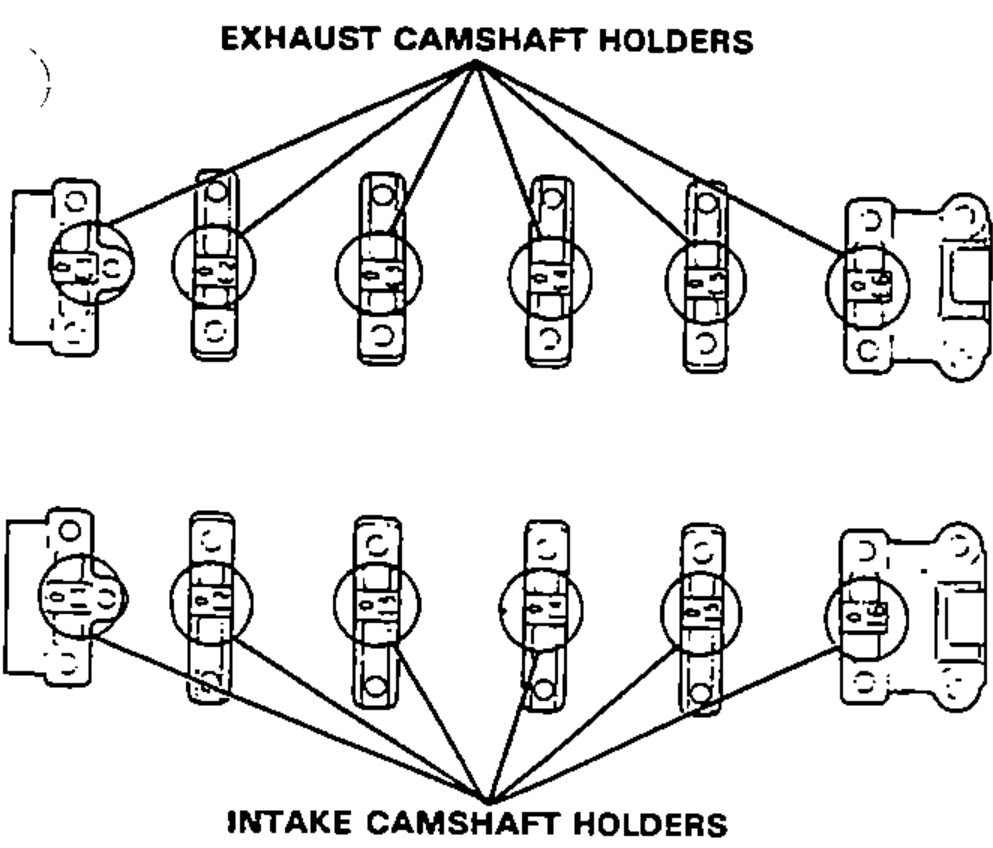

    Layout of the exhaust camshaft holders (top row) and intake camshaft holders (bottom row) showing their positions.
  3. 7
    Apply liquid gasket to the head mating surfaces of the No. 1 and No. 6 camshaft holders, then install them, along with the No. 2, 3, 4 and 5.

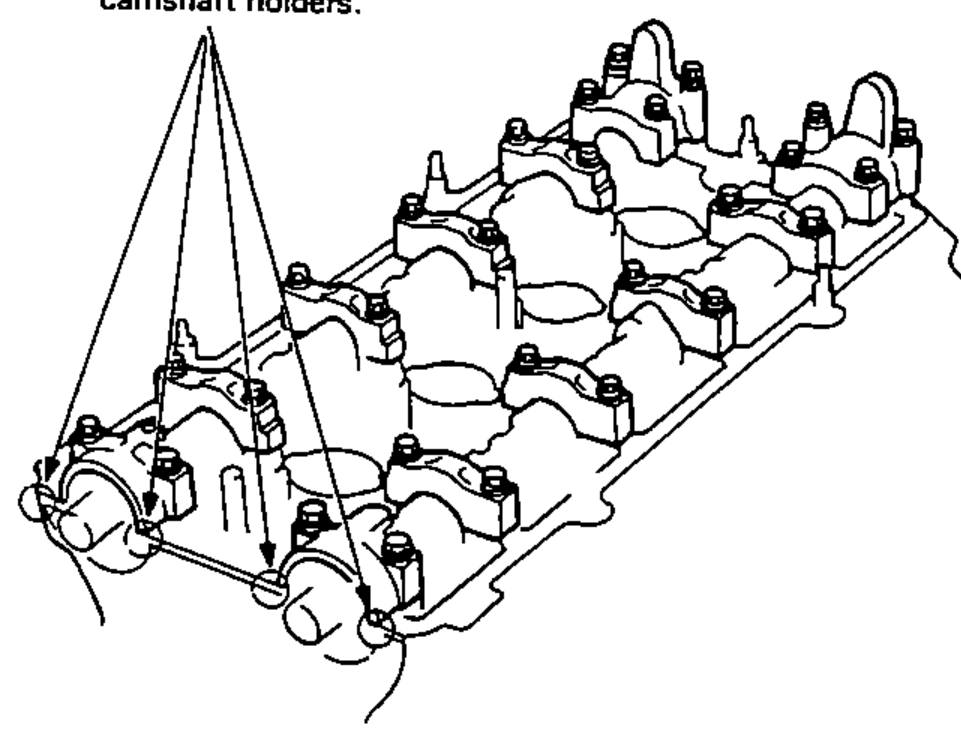

    Camshaft holders installed on the head, indicating where to apply non-hardening sealant before installing the No. 1 and No. 6 holders.
  4. 8
    Tighten the camshaft holders temporarily.
  5. 9
    Press in the camshaft oil seal securely with the special tool.

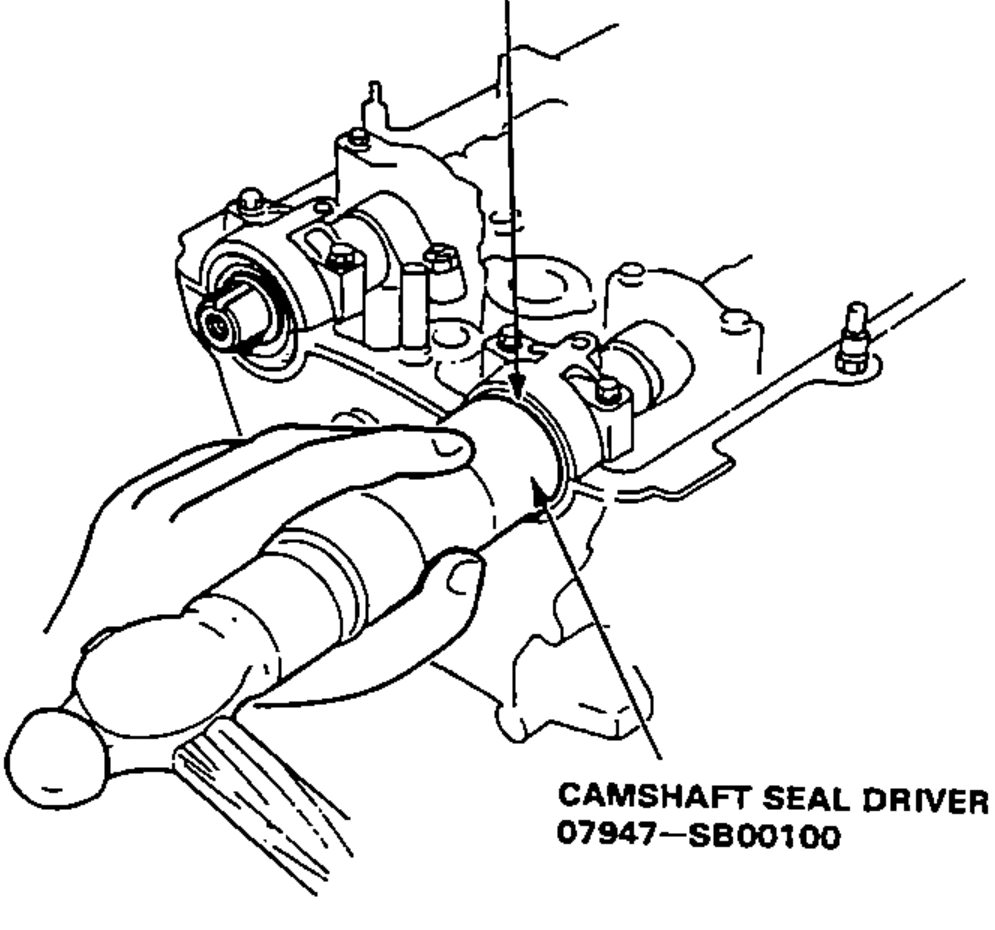

    Pressing the camshaft oil seal into the head using the special camshaft seal driver tool.
