Engine Removal/Installation (cont'd)

5-46prose procedure

Power steering pump removal (step 13) applies to KQ model only.

Continued from 5-45
  1. 12
    Remove the throttle cable by loosening lock the nut and the throttle cable adjust nut, then slip the cable end out of the throttle bracket and accelerator linkage.
    NOTE: Take care not to bend the cable when removing it. Do not use pliers to remove the cable from the linkage. Always replace a kinked cable with a new one.

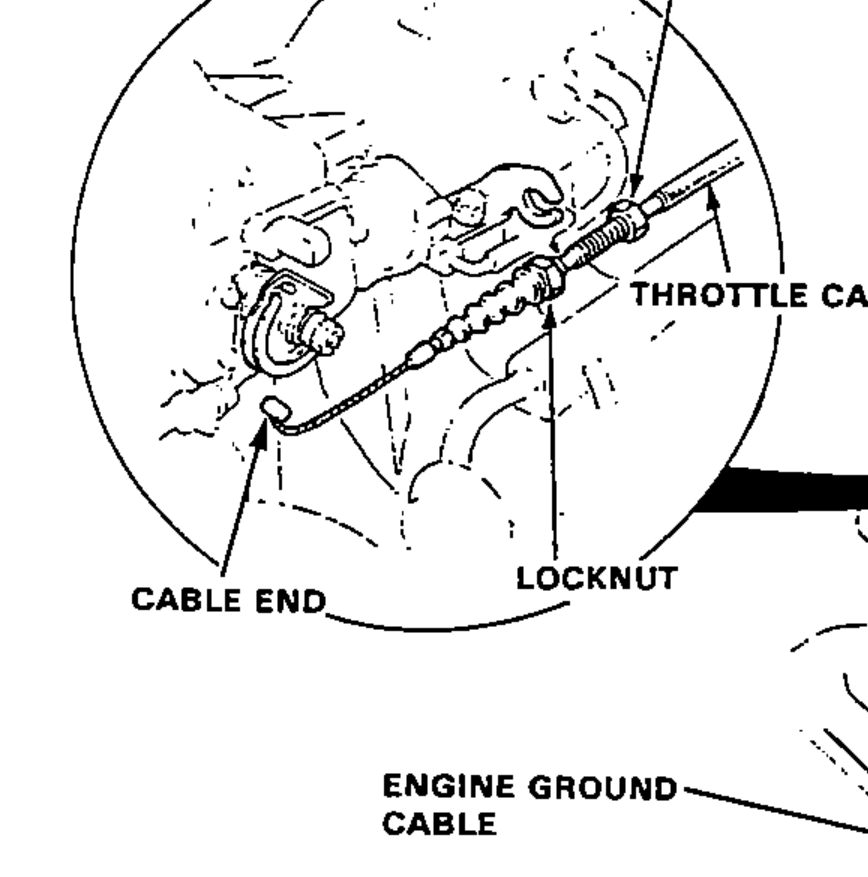

    Close-up of the throttle cable at the throttle bracket showing the adjust nut, locknut, throttle cable and cable end.
  2. 13
    Remove the adjust bolt, mounting bolts and V-belt for the power steering pump, then without disconnecting the hose, pull the pump away from its mounting bracket (KQ only).
    Do not smoke while working on fuel system. Keep open flame away from work area. Drain fuel only into an approved container.

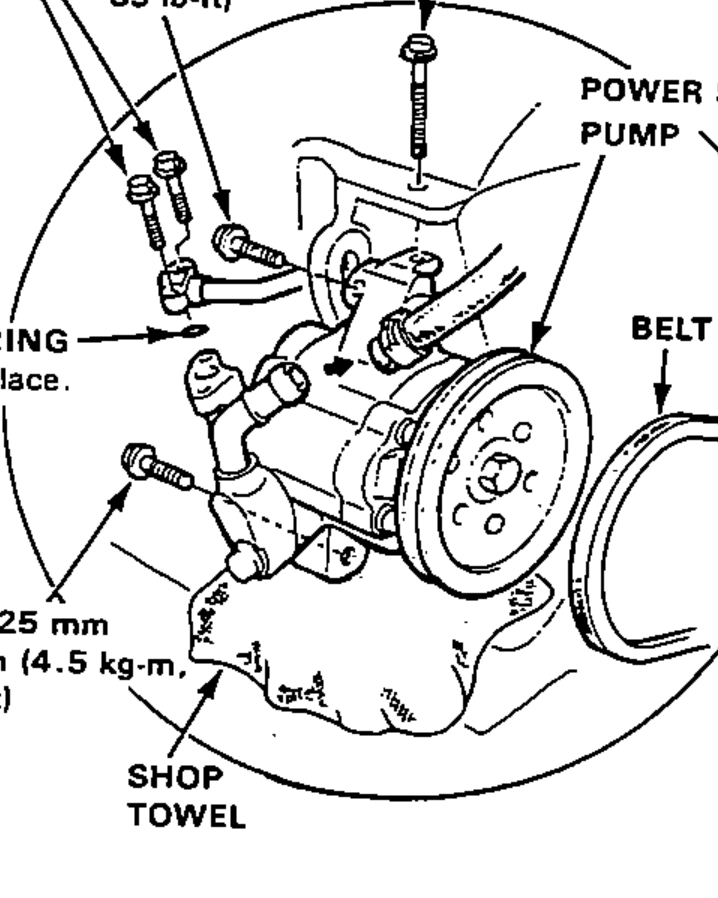

    Power steering pump detail showing the belt adjust bolt, mounting bolts, V-belt, O-ring (replace) and a shop towel; with tightening-torque callouts. Left edge labels partly clipped by the scan margin.
