Water Pump - Replacement
5-62prose procedureTiming belt removal differs by engine: SOHC page 5-18, DOHC page 5-24.
Replacement
- 1Remove the timing belt (SOHC: page 5-18, DOHC: page 5-24).

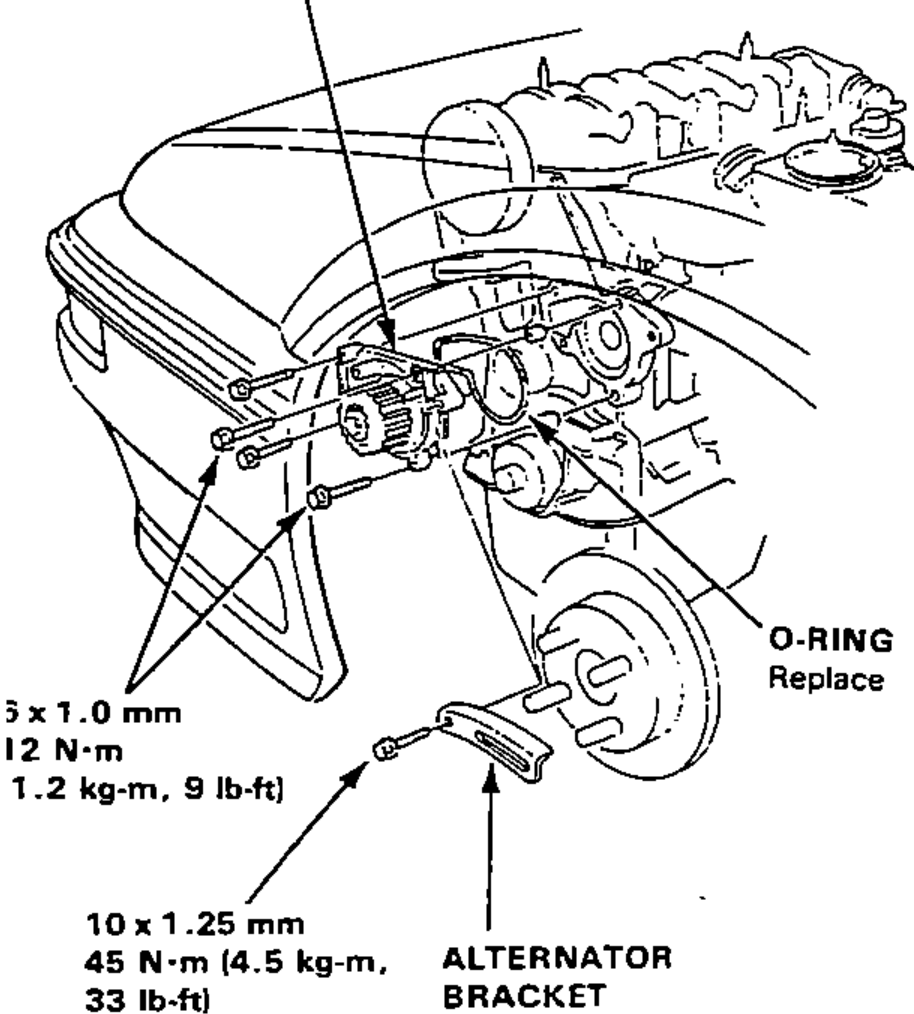

- 2Remove the water pump by removing five bolts.
- 3Install the water pump in the reverse order of removal.
NOTE
WATER PUMP: Inspect for signs of seal leakage or bearing deterioration. NOTE: Small amount of "weeping" from bleed hole is normal.
| Specification | Value |
|---|---|
| Water pump bolt | 12N·m |
| Alternator bracket bolt | 45N·m |
Water pump bolt
12N·m
Alternator bracket bolt
45N·m
