Honda CRX silhouetteCRX

Steering Column - Removal

11-11prose procedure

Removal

  1. 1
    Remove the center pad.
  2. 2
    Remove the steering shaft nut.

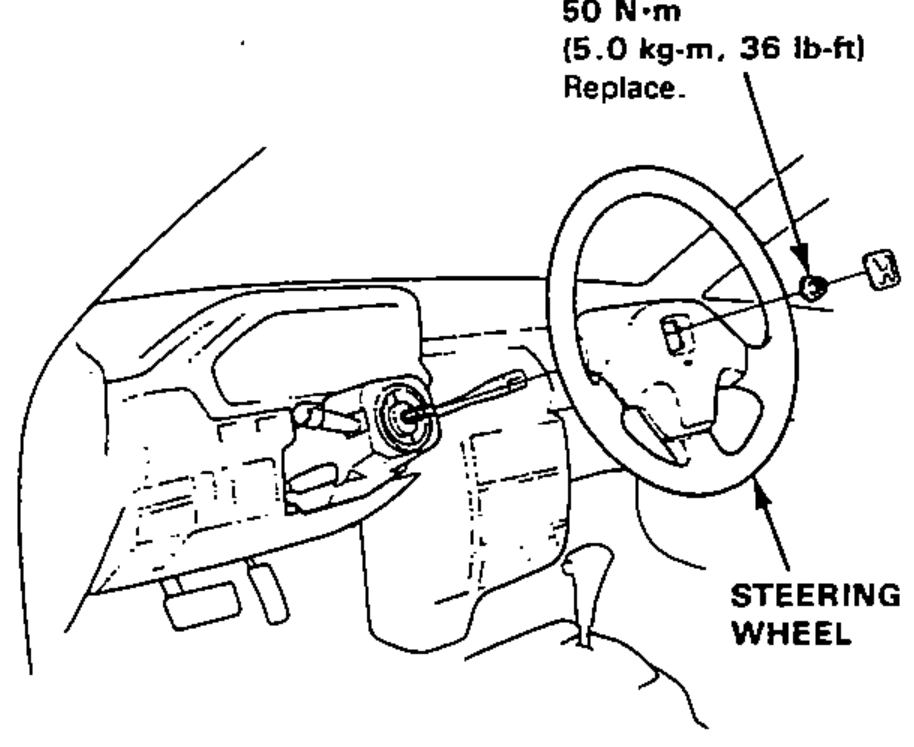

    Dashboard view showing the steering wheel and steering shaft nut being removed, with a torque/replace callout for the nut.
  3. 3
    Remove the steering wheel by rocking it slightly from side-to-side as you pull steadily with both hands.
  4. 4
    Remove the cover panel.

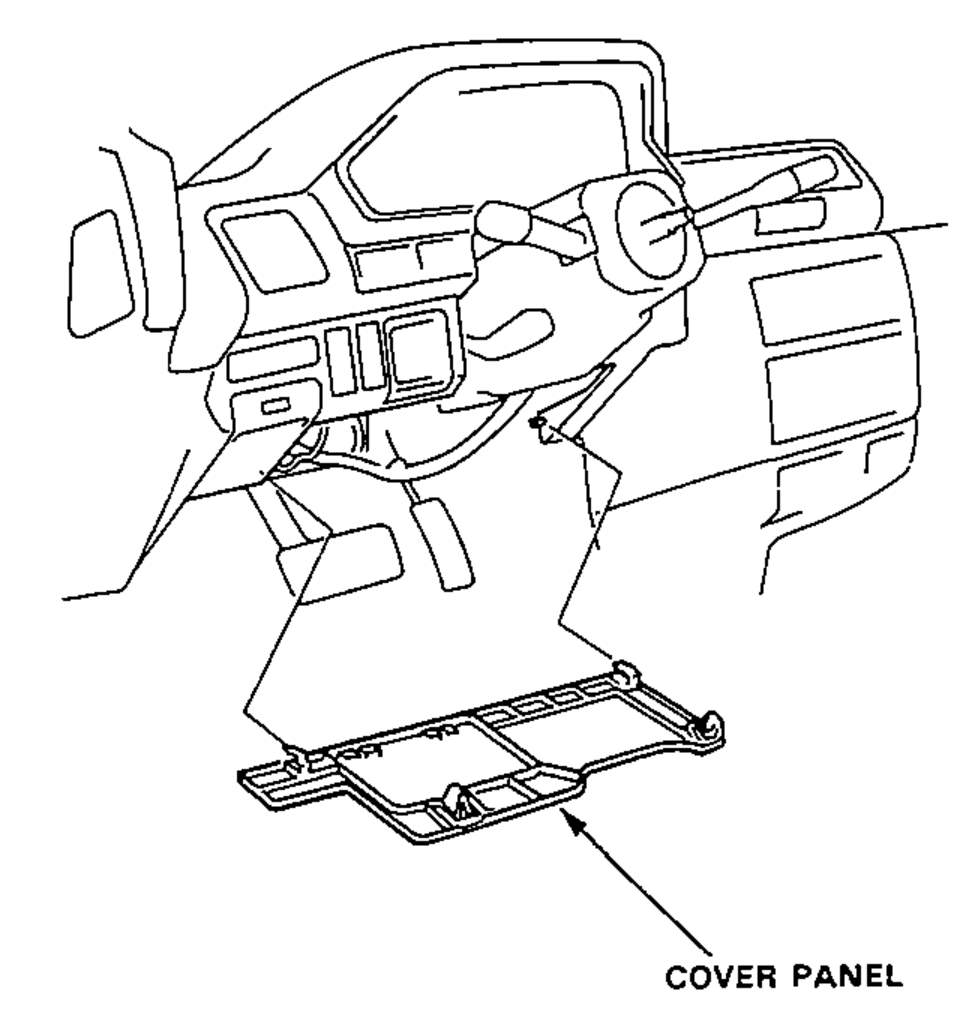

    Underside of the dashboard showing the cover panel being removed.
  5. 5
    Remove the steering joint cover.

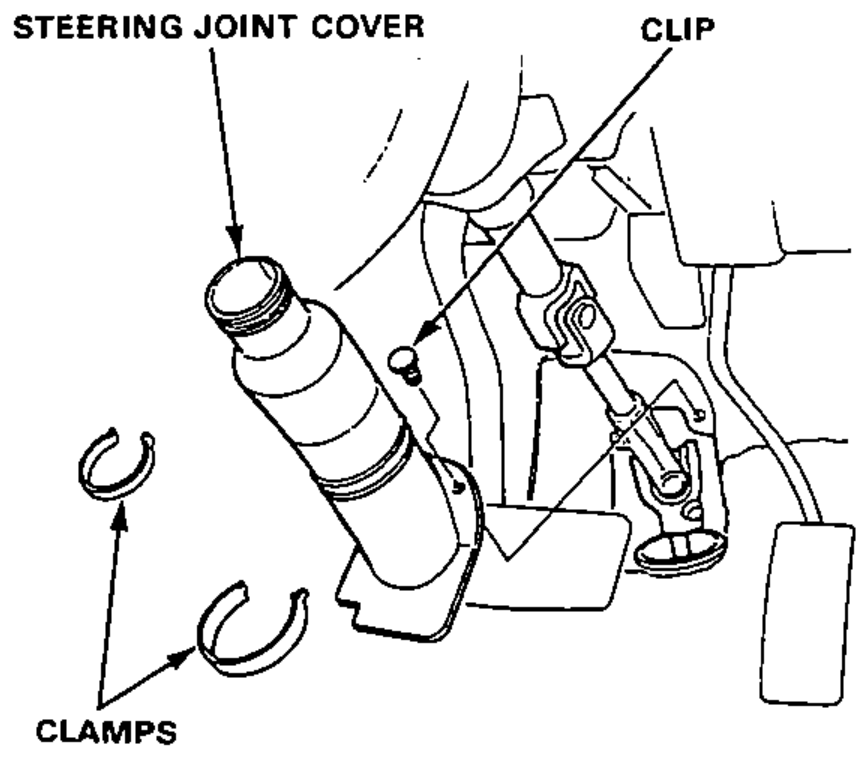

    Steering joint cover removal showing the steering joint cover, clip and clamps in the footwell area.
  6. 6
    Remove the lower steering joint bolt.

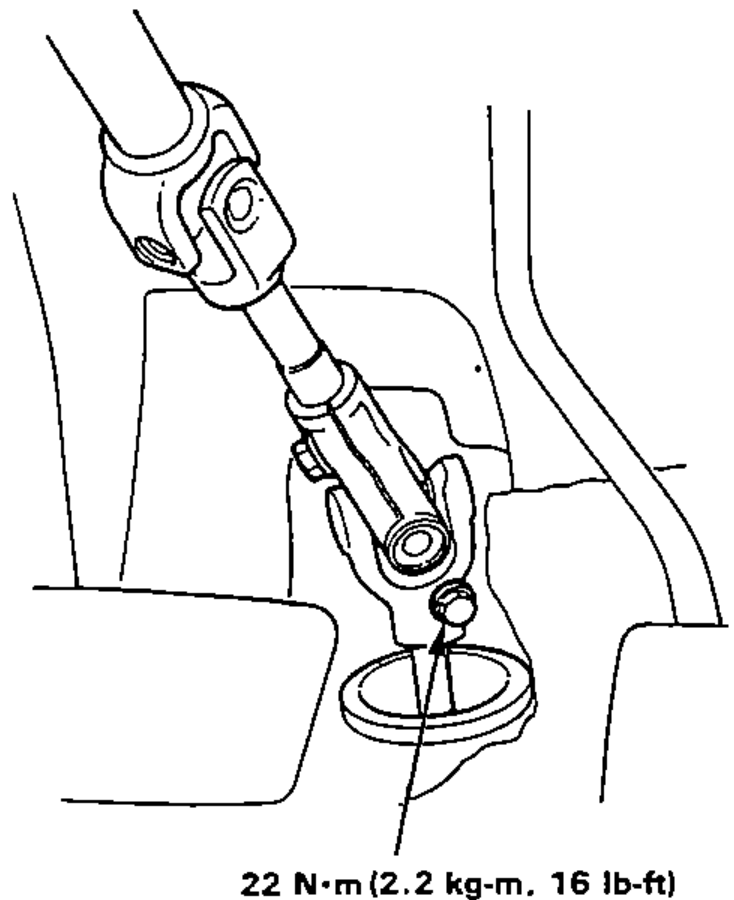

    Lower steering joint and U-joint showing the lower steering joint bolt to be removed, with a torque callout.
Steering shaft nut
50N·m
Lower steering joint bolt
22N·m
